ABB - Isolator 2P - Choose from 25A to 125A

ABB - Switch Disconnector (Isolator) 2Pole (2P) - From 25A to 125A These devices are suitable for commanding loads and they are realized according EN 60947-3 and EN 60669-1 respectively. Fast removal without dismantling of the busbar. Captive screws with recessed/slotted head. Pozidrive size 2. Add-on of up to 3 auxiliary contact S2C-H6R possible Integrated lay-on edge for labeling system ILS. Locking device as accessories for unauthorized...

ABB - Isolator 4P - Choose from 25A to 100A

ABB - Switch Disconnector (Isolator) 4Pole (4P) - From 25A to 100A These devices are suitable for commanding loads and they are realized according EN 60947-3 and EN 60669-1 respectively. Fast removal without dismantling of the busbar. Captive screws with recessed/slotted head. Pozidrive size 2. Add-on of up to 3 auxiliary contact S2C-H6R possible Integrated lay-on edge for labeling system ILS. Locking device as accessories for unauthorized...

ABB - MCB 1P - From 10A to 40A

ABB -  miniature circuit breakers (MCB) 1Pole (1P) - From 10A to 40A Compact Home SH200T miniature circuit breakers are current limiting. They have two different tripping mechanisms, the delayed thermal tripping mechanism for overload protection and the electromechanic tripping mechanism for short circuit protection. They are available in different characteristics (B,C), configurations (1P,1P+N,2P,3P,3P+N,4P), breaking capacities (up to 3 kA at 230/400 V AC) and rated...

ABB - MCB 1P+N - From 6A to 40A

ABB -  miniature circuit breakers (MCB) 1Pole + N (1P+N) - From 6A to 40A The SN201 series miniature circuit breaker is a 1P+N device in 1 module for the protection of circuits against overload and short circuit. Neutral is on the right. Standards: IEC/EN 60898-1 Tripping Characteristic: C Rated Voltage (Ur): 230 V AC Rated Operational Voltage: acc. to IEC 60898-1 230/240 V AC Rated Insulation...

ABB - MCB 2P - From 10A to 100A

ABB - miniature circuit breakers (MCB) 2Pole (2P) - From 10A to 100A System pro M compact S200 miniature circuit breakers are current limiting. They have two different tripping mechanisms, the delayed thermal tripping mechanism for overload protection and the electromechanic tripping mechanism for short circuit protection. They are available in different characteristics (B,C,D,K,Z), configurations (1P,1P+N,2P,3P,3P+N,4P), breaking capacities (up to 6 kA at 230/400 V...

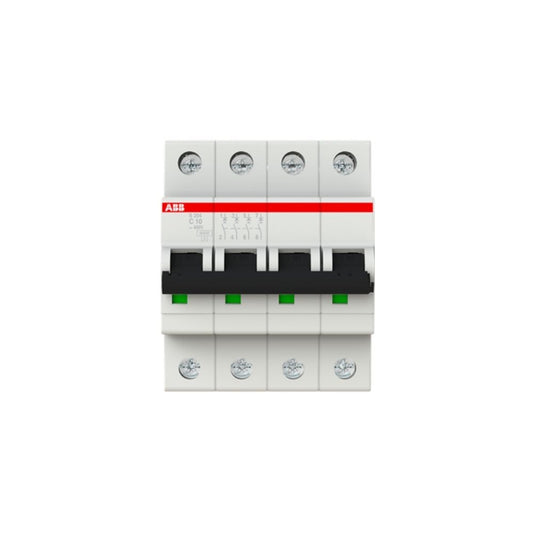

ABB - MCB 4P - From 10A to 63A

ABB -  miniature circuit breakers (MCB) 4Pole (4P) - From 10A to 63A System pro M compact S200 miniature circuit breakers are current limiting. They have two different tripping mechanisms, the delayed thermal tripping mechanism for overload protection and the electromechanic tripping mechanism for short circuit protection. They are available in different characteristics (B,C,D,K,Z), configurations (1P,1P+N,2P,3P,3P+N,4P), breaking capacities (up to 6 kA at 230/400 V AC)...

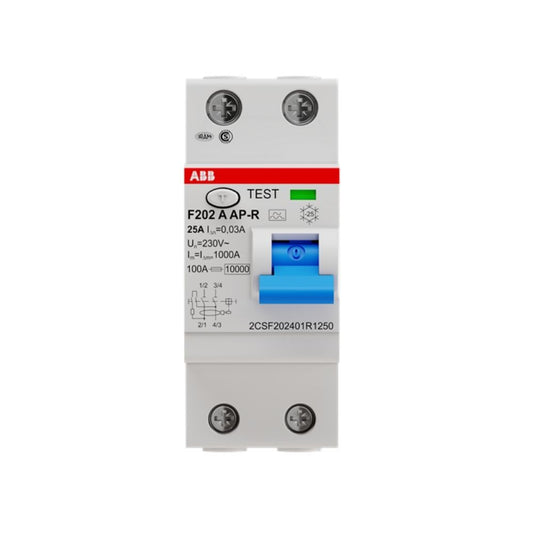

ABB - RCCB 2P - Choose from 25A to 100A

ABB - Residual Current Circuit Breaker (RCCB) 2Pole (2P) - From 10A to 100A The RCCBs F200 series assures protection to people and installations against fault current to earth. A large offer for standard instantaneous and selective AC and A types is completed with some configurations for special applications. Technical Standards: IEC/EN 61008, UL 1053 Type of Residual Current: A type Rated Voltage (Ur): 230 V Rated...

ABB - RCCB 2P Type A - 40A

F202 A-40/0.03 AP-R Residual Current Circuit Breaker Type A -40a The RCCBs F200 series assures protection to people and installations against fault current to earth. A large offer for standard instantaneous and selective AC and A types is completed with some configurations for special applications. This product provides the best compromise between safety and continuity in the service, thanks to the resistance to unwanted trippings....

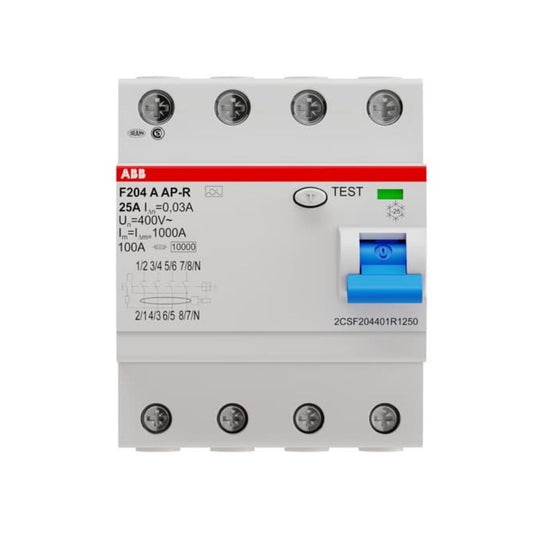

ABB - RCCB 4P - From 25A to 100A

ABB - Residual Current Circuit Breaker (RCCB) 4Pole (4P) - From 25A to 100A The RCCBs F200 series assures protection to people and installations against fault current to earth. A large offer for standard instantaneous and selective AC and A types is completed with some configurations for special applications. Standards: IEC/EN 61008, UL 1053 Type of Residual Current: A type Rated Voltage (Ur): 230/400 V Rated Operational...

ABB - Switch Disconnector 4P - Choose from 63A to 100A

ABB - Switch Disconnector 4Pole (4P) - 63A or 100A 4-pole, front operated, base mounted, DIN-rail mountable switch-diconnector / non-fusible diconnect switch with protected clamp terminals, handle and shaft are not included   Technical Rated Operational Current AC-21A (Ie): (380 ... 415 V) 63 A (500 V) 63 A(690 V) 63 A Rated Operational Current AC-22A (Ie): (380 ... 415 V) 63 A(500 V) 63 A(690 V) 63...

ABB Bentonite Moisture Clay Powder for earthing (25kg)

ABB Furse 25 Kilogram Bag of Bentonite Moisture Retaining Clay Powder used for earthing Brand / Label: ABB Furse Country of Origin: United Kingdom (GB) Used as an earth-electrode backfill to reduce soil resistivity by retaining moisture. The clay is a sodium activated montmorillonite, which when mixed with water swells to many times its dry volume. It has the ability to hold its moisture content for...

ABB Furse 5-hole Earth Bar (for Earth pit)

5 Hole Earth Bar for Lightweight Inspection Pit FIVE HOLE EARTH BAR BS2874-C101 Brand / Label: ABB Furse  Country of Origin: United Kingdom (GB) Brand / Label: Furse Material of Conductor: Copper Product Name: EARTH ROD BAR Product Type: Earth Bar   Standards: BS 7430   Click here for data sheet.

ABB Furse Bare Copper Tape 25 x 3mm (roll of 50m)

ABB Furse Bare copper Tape Conductor - Conductor Size 25mm x 3mm, Standard Coil Size 25m 25X3MM HC SOFT CU TAPE BS EN 13601   Brand / Label: Furse Insulation Material: Bare Material: Copper Product Name: COPPER TAPE Product Type: Conductors Size: 25mm x 3mm Standards: IEC/BS EN 62561-2,BS EN 13601

ABB Furse Black DC Clip (25 x 3mm) PVC

ABB Furse Black DC Clip (25 x 3mm) PVC COVD Brand / Label: ABB Furse Long Description: Non-Metallic DC Tape Clip, For Use with PVC Covered Tape - Conductor Size 25x3mm, Color Black Country of Origin: United Kingdom (GB)   Application: For use with PVC Covered Tape Brand / Label:Furse Material: Polypropylene Product Name: FITTINGS AND MOUNTINGS INSTALLATION Product Type: Non-Metallic Conductor Clips   Click here for data sheet.

ABB Furse CU Alloy Clamp (25 x 3mm)

ABB Furse CU Alloy Clamp (25 x 3mm) Brand / Label: ABB Furse Long Description: Test/Junction Clamp, Conductor Size 26mm x 8mm, Conductor Material Copper Country of Origin: China (CN) India (IN) Brand / Label: Furse Material: Copper Product Name: COPPER-ZINC BASE ALLOYS (BRASS) Special Functions: Simple to install, providing an effective low resistance connection between overlapping tapes Standards: IEC/BS EN 62561-1    Click here for...

ABB Furse CU-Bond Earth Rod (3/4") Extensible

Threaded copperbond Earth Rod - Nominal Diameter 3/4 Inch, Length 1200mm, 1800mm. Thread B UNC 5/8 Inch, Shank A 14.2mm 3/4 (NOM)X1200MM EXTENSIBLE CU-BOND  Brand / Label: ABB Furse  Country of Origin: China (CN), South Africa (ZA) Brand / Label: Furse Product Net Depth / Length: 1200 mm, 1800 mm Insulation Material: Bare Material of Conductor: Copper Product Name: COPPER BARS, RODS AND PROFILES Product Type: Earth Rods...

ABB Furse CU-Bond Earth Rod (5/8") Extensible

Threaded copperbond Earth Rod - Nominal Diameter 5/8 Inch, Length 1200mm, 1500mm, 1800mm. Thread B UNC 5/8 Inch, Shank A 14.2mm 5/8 (NOM)X1200MM EXTENSIBLE CU-BOND  Brand / Label: ABB Furse  Country of Origin: China (CN), South Africa (ZA) Brand / Label: Furse Product Net Depth / Length: 1200 mm, 1500 mm, 1800 mm Insulation Material: Bare Material of Conductor: Copper Product Name: COPPER BARS, RODS AND PROFILES Product...

ABB Furse Driving Stud (3/4" or 5/8")

ABB Furse 3/4 or 5/8 inch Driving Stud Class 2A Brand / Label: ABB Furse  Country of Origin: United Kingdom (GB) Brand / Label: Furse Material of Conductor: Copper Product Name: FURSE EARTHING & LIGHTNING Standards: BS 7430

ABB Furse Earth Bar 6 way with Single disconnecting link

ABB Furse 6 Way Copper Earth Bar with Single Disconnecting Link - Length 475mm 50X6X475 CU EBAR 6XM10 FIX AND 1 LK Brand / Label: ABB Furse  Country of Origin: United Kingdom (GB) Brand / Label: Furse Material of Conductor: Copper Product Name: COPPER PLATES Product Type: Earth Bar Size: 90mm x 96mm Special Functions: Plastic Channel Base is Entirely Corrosion Proof - Made from...

ABB Furse Earthrod Coupling

ABB Furse Earthrod Coupling Brand / Label: Furse Material: Copper Alloy Product Name: LIGHTNING ARRESTERS, VOLTAGE LIMITE Size: 3/4 or 5/8 Inch Standards: IEC/BS EN 62561-2 Furse copperbond earth rods are the best and most economical Made by bonding 99.9% pure electrolytic copper to a low carbon steel core Furse rods are not of the sheathed type They are highly resistant to corrosion The steel...

ABB Furse Grey DC Clip (25 x 3mm)

ABB Furse Grey DC Clip (25 x 3mm) Brand / Label: ABB Furse Long Description: Non-Metallic DC Tape Clip, For Use with PVC Covered Tape - Conductor Size 25x3mm, Color Grey Country of Origin: United Kingdom (GB)   Application: For use with PVC Covered Tape Brand / Label: Furse Material: Polypropylene Product Name: FITTINGS AND MOUNTINGS INSTALLATION Product Type: Non-Metallic Conductor Clips Standards: IEC/BS EN 62561-4  ...

ABB Furse Metallic conductor clip (for PVC-covered copper tape)

ABB Furse Metallic conductor clip (25 x 3mm) - for PVC-covered copper tape Brand / Label: ABB Furse Long Description: Metallic Conductor Clip, Conductor Size 25mmx3mm, For use with PVC Covered Copper Country of Origin: India (IN) China (CN)   Application: Furse Metallic Tape Clips are designed to secure Flat Tape conductor systems for the possible high currents of a power earthing application or the huge mechanical forces...

ABB Furse Polymer Inspection Pit

Lightweight Inspection Pit with Grey Polymer Lid with 5 tons load bearing capacity LOCKABLE HIGH PERFORMANCE POLYMER  Brand / Label: ABB Furse  Country of Origin: United Kingdom (GB) Brand / Label: Furse Standards: IEC/BS EN 62561-5   Click here for data sheet.

ABB Furse PVC Covered CU Tape 25 x 3mm (roll of 50m)

ABB Furse PVC Covered Copper Tape - Conductor Size Width 25mm x 3mm, Standard Coil Size 50m, Color Range Black, Grey 25X3 PVC COVD BLACK, GREY CU TAPE 50M COI   Brand / Label: Furse Insulation Material: PVC Material: Copper Product Name: INSULATED ELECTRIC CONDUCTORS Product Type: Conductors Size: 25mm x 3mm Standards: BS EN 13601

ABB Furse Rod to Tape Clamp

ABB Furse 25mm Type A Rod to Tape connector Brand / Label: ABB Furse Long Description: Rod to Tape Clamp, Nominal Rod Diameter 12.7mm / 16mm / 20mm, Maximum Conductor 26mm x 12mm/ 26mm x 12mm / 26mm x 10mm, Material Copper Alloy Mechanical Clamps Country of Origin: India (IN) China (CN) Brand / Label: Furse Material: Copper Product Name: COPPER-ZINC BASE ALLOYS (BRASS) Standards: IEC/BS...

ABB Furse Square Tape Clamp (25 x 3mm)

ABB Furse Square Tape Clamp (25 x 3mm) - copper alloy test and junction Brand / Label: ABB Furse Long Description: Square Tape Clamp - Conductor Size 25mm x 3mm, Conductor Material Copper Country of Origin: India (IN) China (CN)  Application: Simple to install, providing an effective low resistance connectionbetween overlapping tapes to allow cross, tee, through and right angle joints to be formed Brand /...

ABB Furse Surge Protective Device (Isolating Spark Gap) - Level 2L 10KA

ESP ISG2L10/350 Surge Protective Device ESP ISG2L10/350 ISOLATING SPARK GAP ISG, LEVEL 2L 10KA 10/350, 350V Brand / Label: ABB Furse     Technical Standards: IEC 62561-3 Suitable For: To protect systems against transient overvoltages or surges from lightning and electrical switching events Nominal AC Voltage of the System (Uo): 255 V Voltage Protection Level ( Up): 1.5 kV Maximum Continuous Operating Voltage (Uc): 350...

ABB Furse Swing Lid DC Tape Clip (for bare copper tape)

ABB Furse Copper Alloy DC Clip (25 x 3mm) - for bare copper tape Brand / Label: ABB Furse Long Description: Swing Lid DC Tape Clip - Conductor Size 25 x 3mm, Material Copper Country of Origin: India (IN) China (CN)   Application: For use with Bare Copper Brand / Label: Furse Material: Copper Product Name: CAST, MOULDED, STAMPED OR FORGED Product Type: Metallic Conductor Clips...
