Description

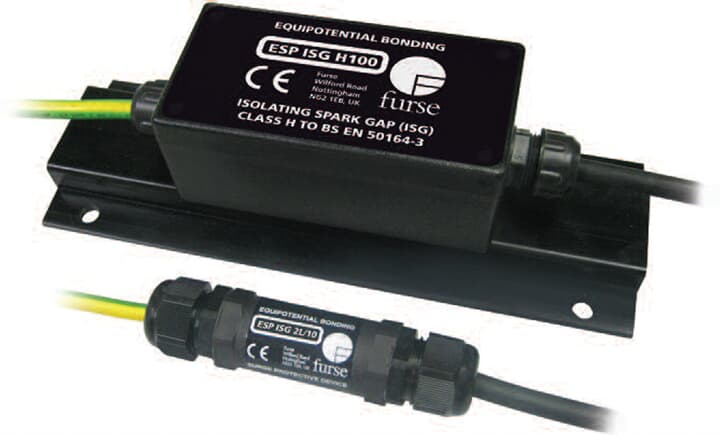

ESP ISG2L10/350 Surge Protective Device
ESP ISG2L10/350 ISOLATING SPARK GAP ISG, LEVEL 2L 10KA 10/350, 350V
Brand / Label: ABB Furse
Technical
-
- Standards: IEC 62561-3
-
- Suitable For: To protect systems against transient overvoltages or surges from lightning and electrical switching events
-
- Nominal AC Voltage of the System (Uo): 255 V
-
- Voltage Protection Level ( Up): 1.5 kV
-
- Maximum Continuous Operating Voltage (Uc): 350 V
-
- Discharge Current: I (max, 8 / 20 µs) 60 kA, Maximum 10 / 350 µs 10 kA
-
- Rated Frequency (f): 0 Hz
-
- Number of Protected Poles: 1
-
- Connection Type: Screw Clamp
Environmental
-
- Ambient Air Temperature: Operation -40 ... +80 °C
-
- RoHS Status: Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
ETIM 7: EC000942 - Surge protection device for terminal equipment
