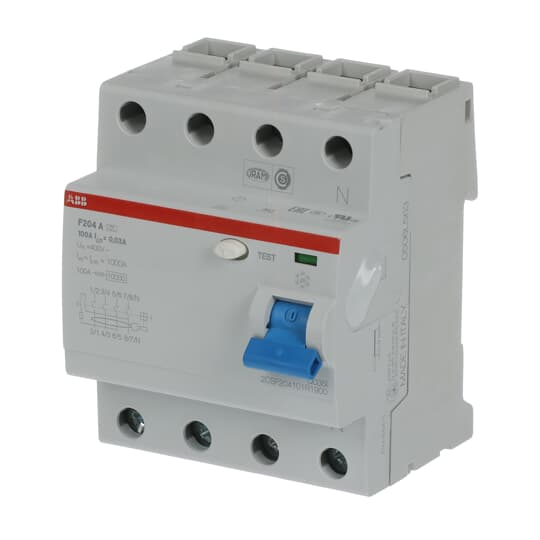

ABB - Residual Current Circuit Breaker (RCCB) 4Pole (4P) - From 25A to 100A

The RCCBs F200 series assures protection to people and installations against fault current to earth. A large offer for standard instantaneous and selective AC and A types is completed with some configurations for special applications.

• Standards: IEC/EN 61008, UL 1053

• Type of Residual Current: A type

• Rated Voltage (U_r): 230/400 V

• Rated Operational Voltage: 230 / 400 V AC

• Rated Insulation Voltage (U_i): 500 V

• Rated Impulse Withstand Voltage (U_imp): 4 kV

• Input Voltage Type: AC

Ref:

25A 30MA-F204‐25/0.03

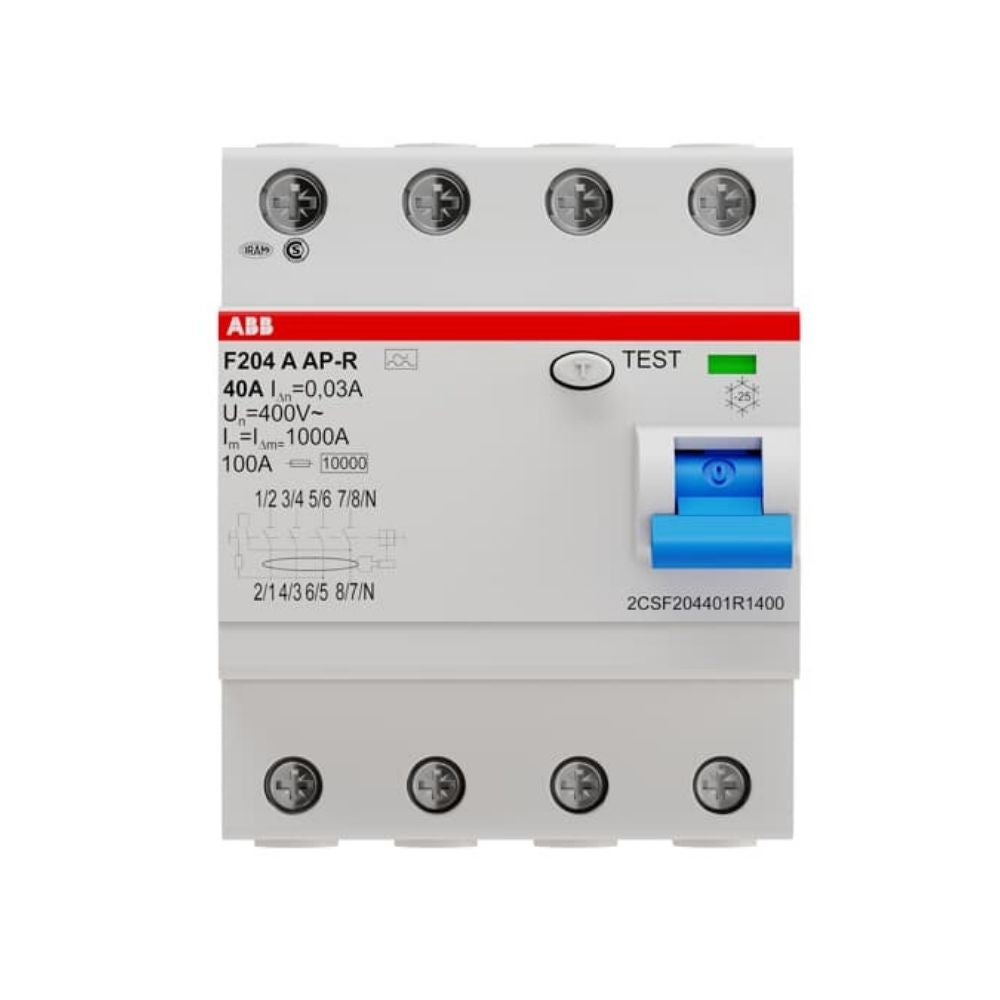

40A 30MA-F204‐40/0.03

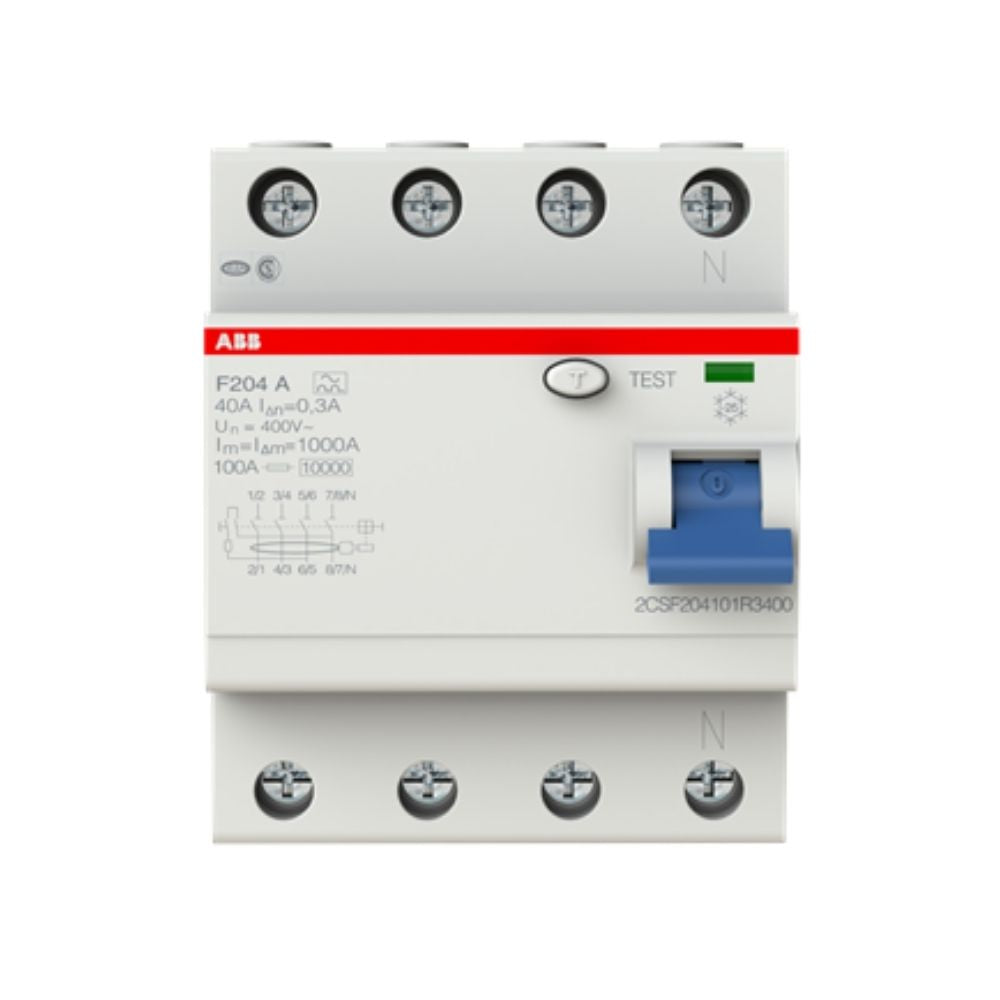

40A 300MA-F204‐40/0.3

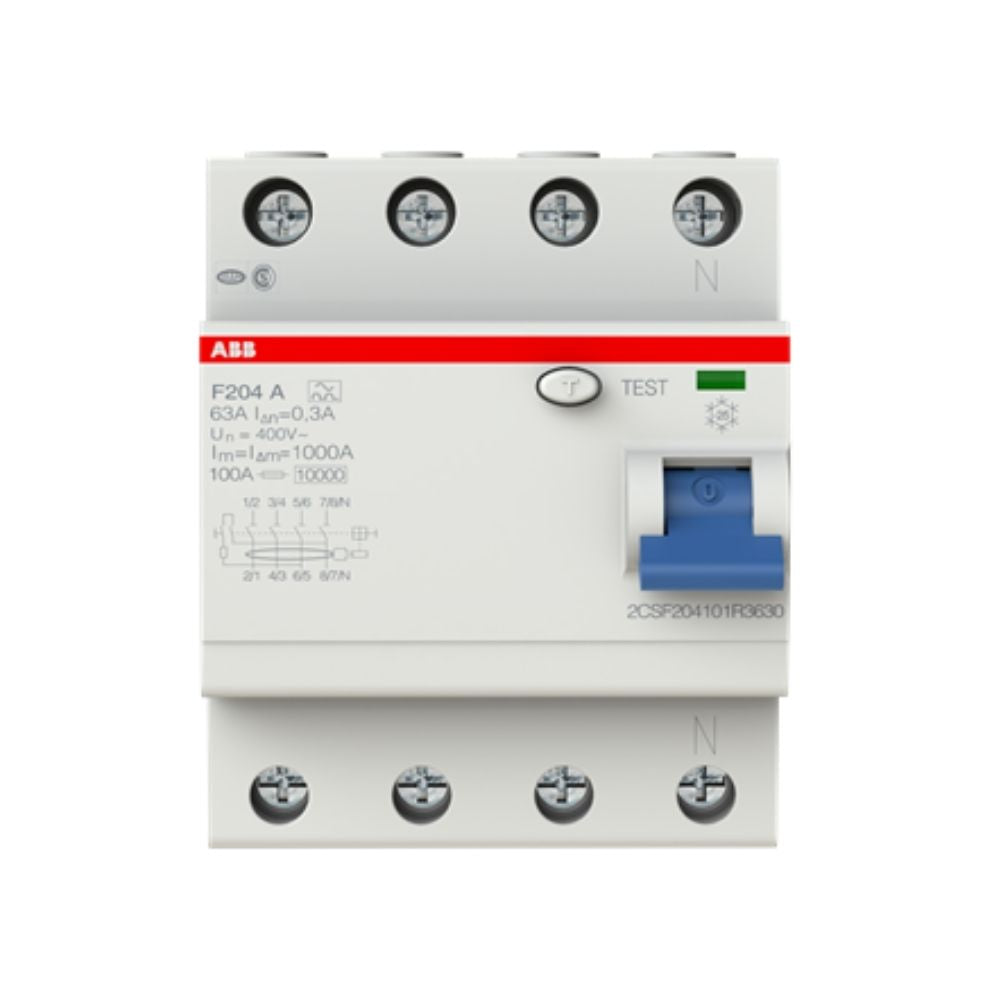

63A 300MA-F204‐63/0.3
