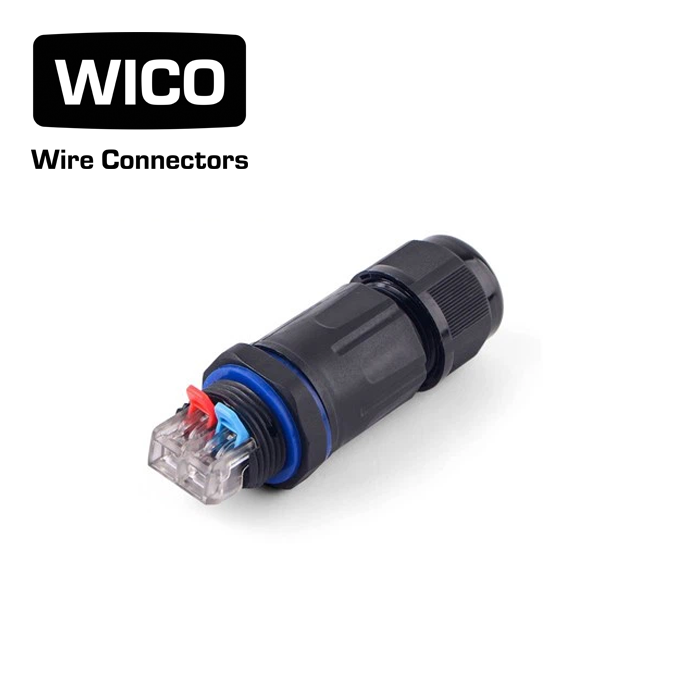

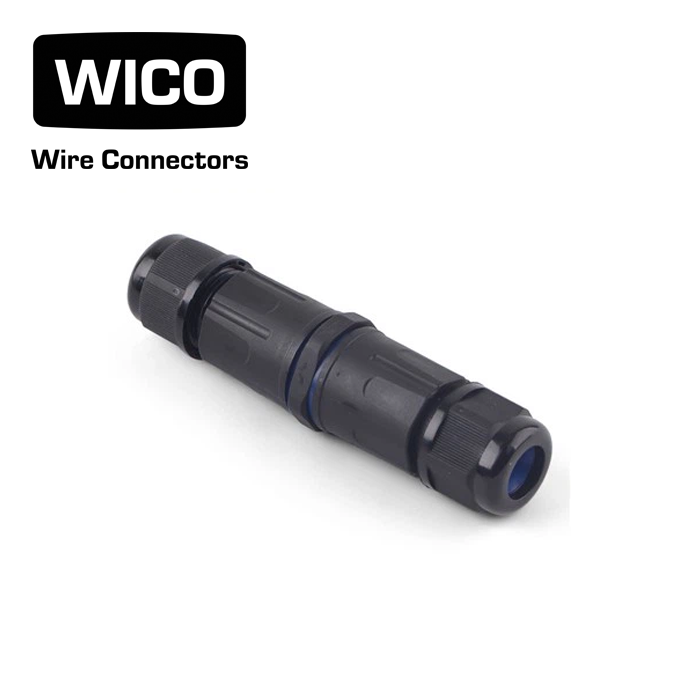

WICO WNP292X Waterproof Connector

The WICO WNP292X Waterproof Connector is a premium wire connector designed for demanding electrical applications where safety, speed, and durability are essential. Featuring a spring and lever mechanism, it enables quick, secure, and professional wiring — similar in convenience to Wago connectors — but with added waterproof protection.

With its PA66 polyamide housing, copper conductive elements, and rubber seals, the WICO WNP292X ensures strong, long-lasting performance even in the harshest conditions. Thanks to its IP68 waterproof rating, this connector is suitable for applications that require complete submersion and reliable sealing.

Key Features

• Voltage: 250–450V AC

• Rated Current: 16A

• Connection Capacity: 0.5–1.5mm²

• Working Temperature: -40°C to +85°C

• Protection Rate: IP68

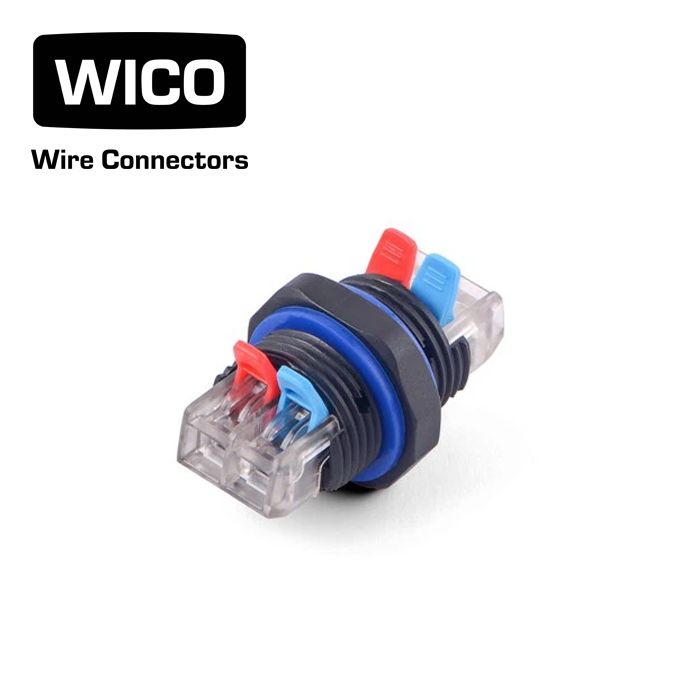

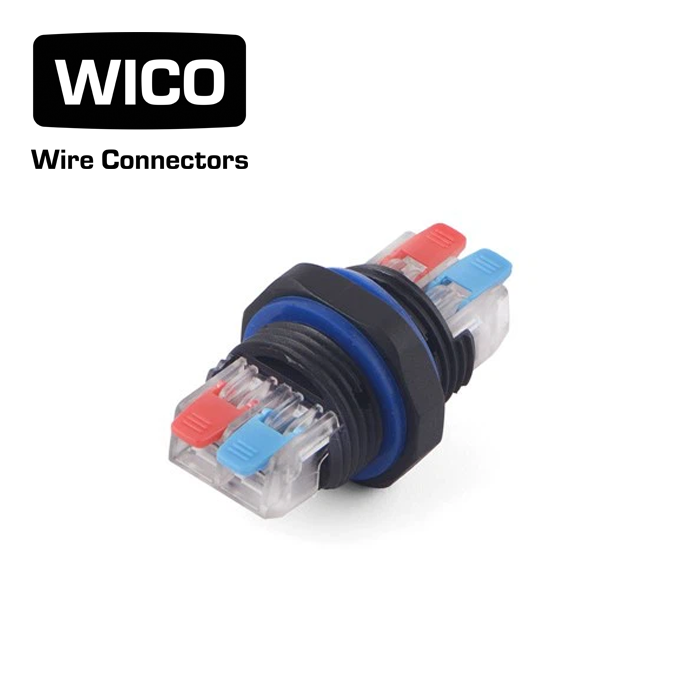

• Connection Type: Spring & Lever Mechanism

Materials

• Shell: High-strength PA66 Polyamide

• Conductive Parts: Copper

Applications

The WICO Waterproof Wire Connector is ideal for:

• Outdoor lighting systems

• Garden and landscape wiring

• Marine and underwater applications

• Industrial electrical equipment

• Renewable energy installations

Choose WICO wire connectors for the same ease of use as Wago, with the added advantage of full waterproofing for challenging environments.
