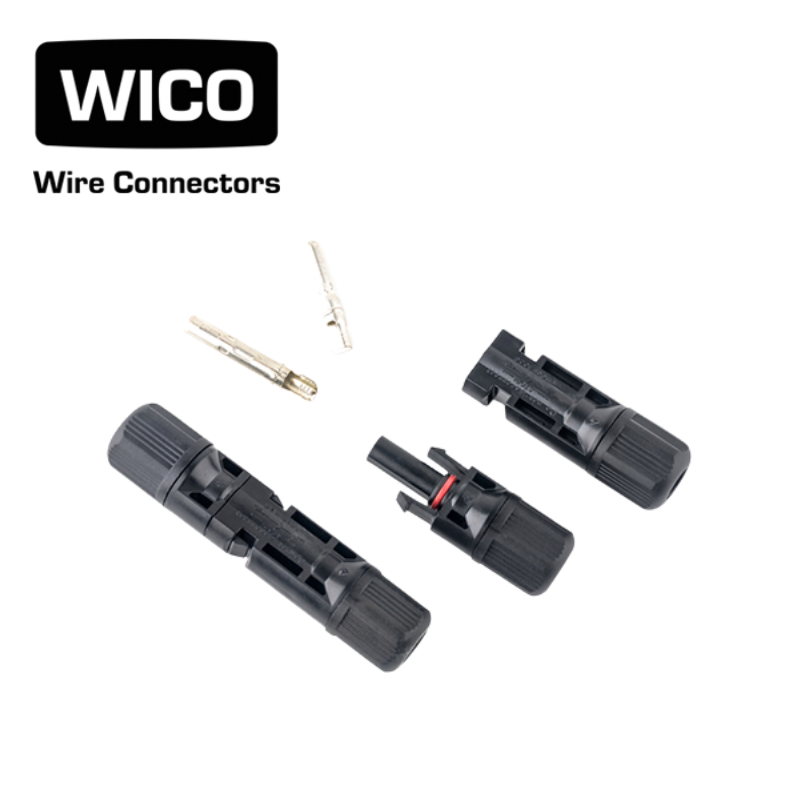

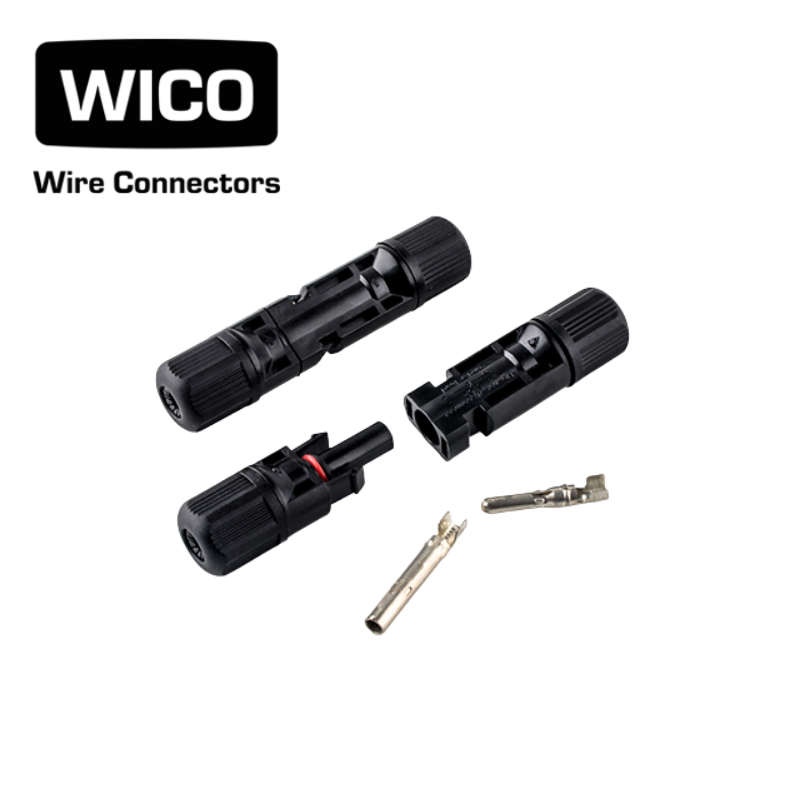

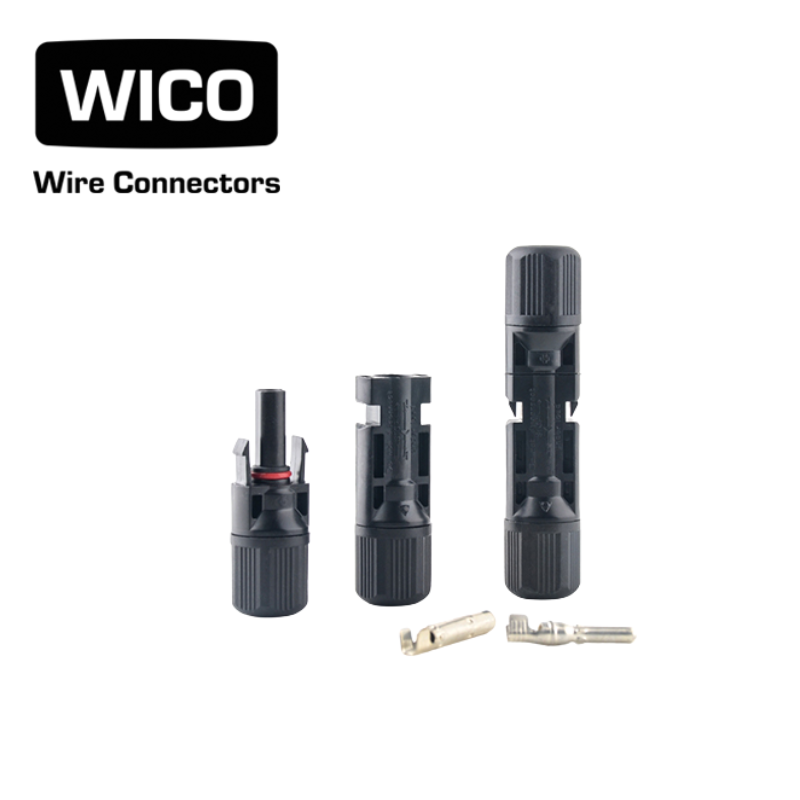

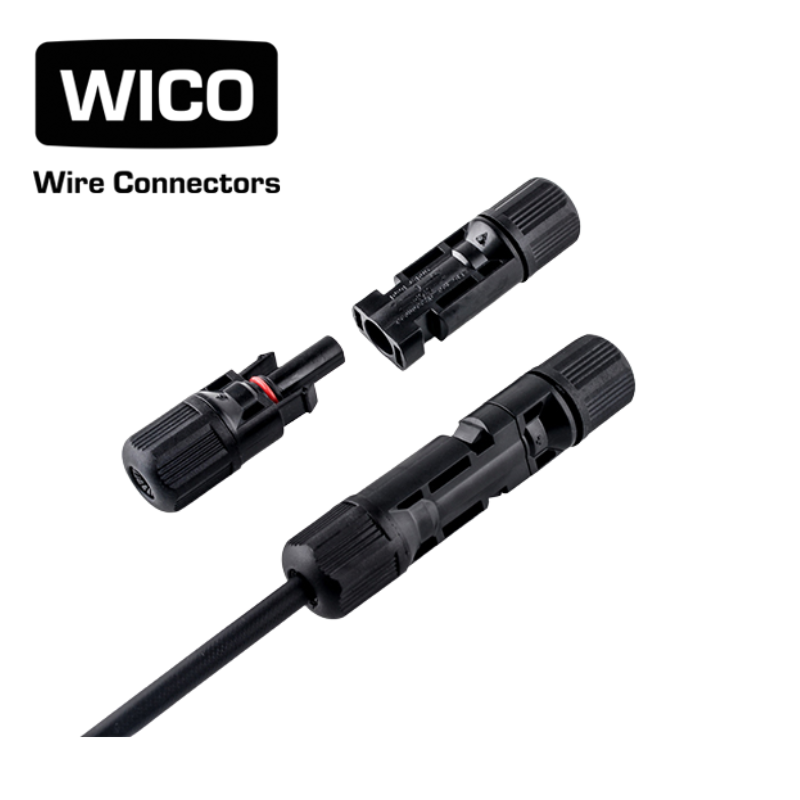

WICO MC4 Solar Panel Connector

The WMK-MC4 Solar Panel Connector-1000V 30A is designed to provide an efficient and secure connectivity solution for solar photovoltaic systems. It supports a 1000V DC voltage and a 30A rated current, ensuring stable and reliable performance in a working environment ranging from -40°C to +90°C.

With an IP67 protection rating, low contact resistance down to 0.5mΩ, and construction made of copper alloy and tin-plated materials, it stands as the ideal choice for efficient and secure connections in solar photovoltaic systems. Its dependable snap-in locking system offers assurance for solar installations, ensuring stable operation in various environmental conditions.

Key Features

● Voltage: 1000V DC(IEC) DC(UL)
● Rated Current: 30A
● Ambient temp.range: -40℃ ~ +90℃ (IEC)
● Upper limiting temperature: +105℃ (IEC)
● Protection Rate: IP67
● Degree of protection, unmated: IP2X
● Contact resistance of plug connectors: 0.5mΩ
● Contact material: Copper Alloy, tin plated
● Insulation material: PC/PV
● Locking system: Snap-in

Applications

The WMK-MC4 Solar Panel Connector-1000V 30A finds wide application in the solar energy sector, facilitating the reliable interconnection of solar panels in photovoltaic arrays. It plays a crucial role in ensuring efficient energy capture and transmission in both residential and commercial solar power systems, contributing to the advancement of sustainable and clean energy solutions.

The WMK-MC4 Solar Connector is ideal for:

• Solar panel installations
• Photovoltaic (PV) systems
• Solar combiner boxes
• Solar inverters
• Residential solar projects
• Commercial and industrial solar systems
• Off-grid and renewable energy installations

Designed for reliable outdoor solar connections, the WICO MC4 30A 1000V Connector offers secure performance, durability, and professional-grade protection for photovoltaic systems.
