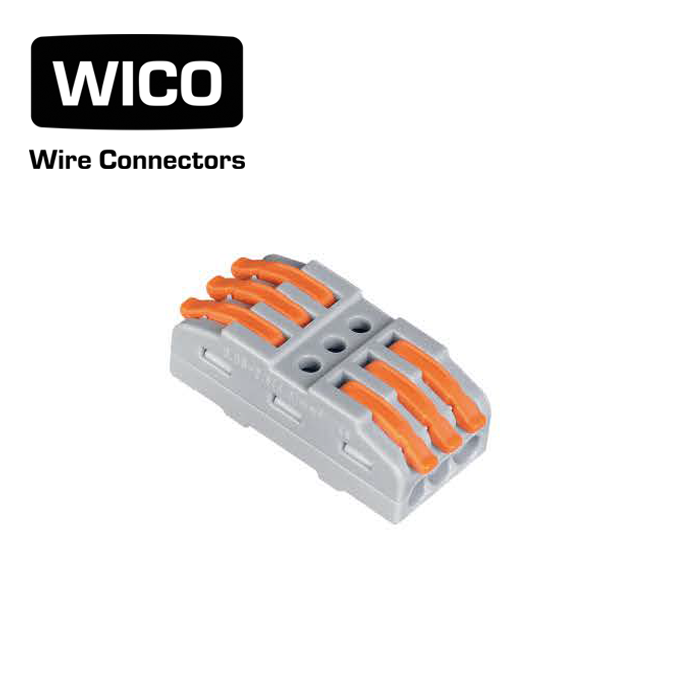

WICO WMK-423 6-pin Bilateral Push-In Quick Wire Connector - Lever Nut

The WICO WMK-423 6-pin Bilateral Push-In Quick Wire Connector (also called a double-sided connector) is designed for fast, reliable splicing of solid, stranded, and fine-stranded wires. With its lever-actuated push-in design, this connector enables quick, tool-free installation — providing the same ease as Wago wire connectors, but with the added advantage of WICO’s robust construction.

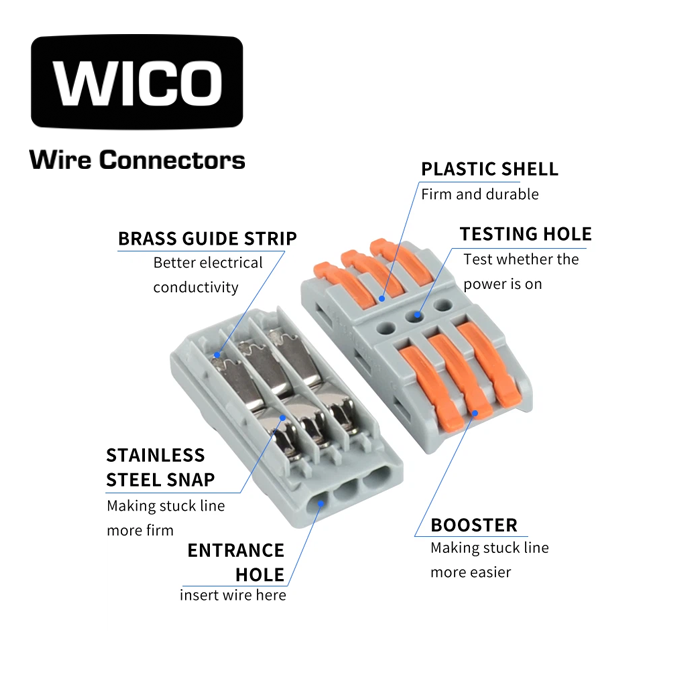

Built with a PA66 shell, SS301 stainless steel contact springs, and thinned copper conductive parts, it ensures excellent electrical conductivity and durability even in demanding conditions. Its bilateral design makes it ideal for creating efficient inline wire connections.

Key Features

• Connection Capacity:

  • Rigid wire: 0.08–4mm²

  • Flexible wire: 0.2–2.5mm²

• Rated Current: 32A

• Rated Voltage: 450V

• Working Temperature: -40°C to +105°C

• Strip Length: 11mm / 0.43 inch

• Connector Shell & Lever: PA66

• Contact Spring: SS301 Stainless Steel

• Conductive Parts: Thinned Copper

Applications

The WICO Bilateral 6-pin Push-In Quick Wire Connector is ideal for:

• Inline splicing of wires

• Residential and commercial wiring projects

• Lighting and fixture connections

• Distribution boxes and control panels

• Industrial electrical systems

Choose WICO wire connectors for fast, tool-free wiring — offering the same ease as Wago with WICO’s reliability for long-lasting performance.
