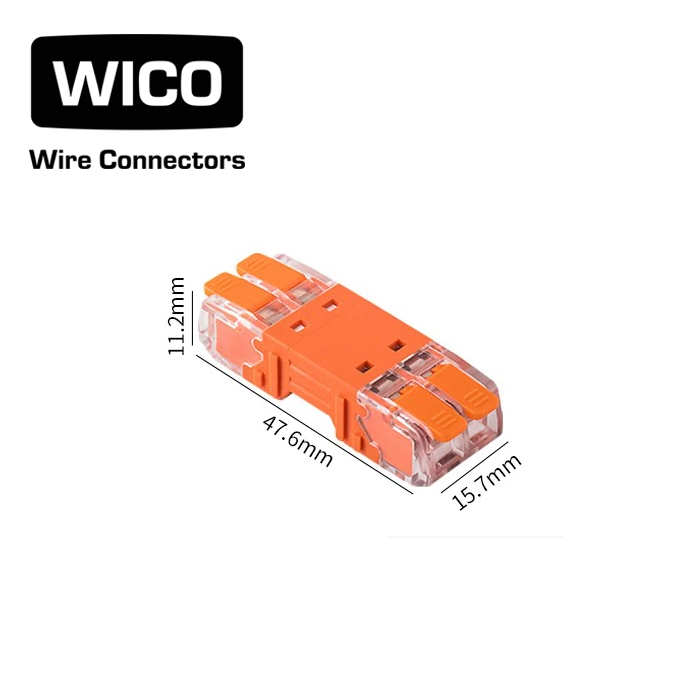

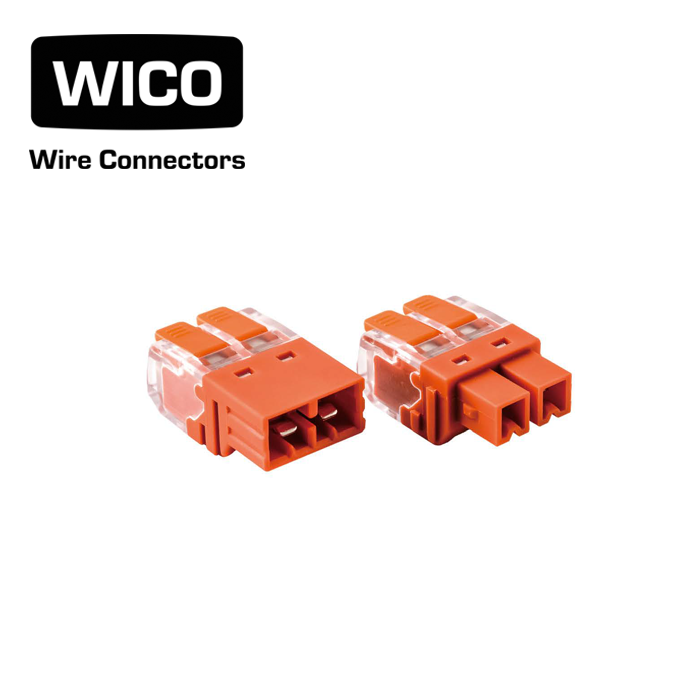

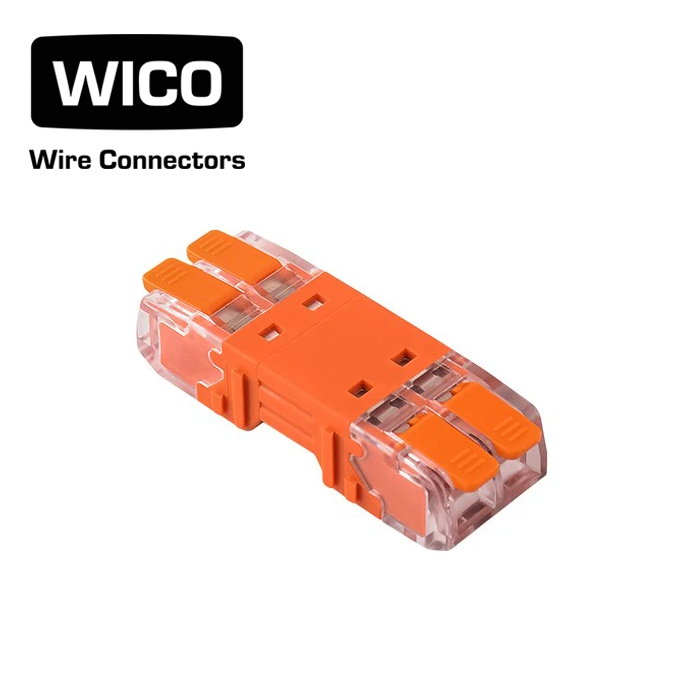

WICO WMK-642 4-Pin Push-In Push-out Quick Wire Connector - Lever Nut

The WICO WMK-642 4-Pin Push-In Quick Wire Connector is a durable, high-quality solution for secure and professional wire splicing. Its lever-actuated push-in design allows tool-free installation, providing the same ease as Wago wire connectors with WICO’s added durability and reliability.

Made from a PA66 housing, SS301 stainless steel springs, and thinned copper conductive parts, this connector ensures excellent conductivity, high mechanical strength, and long-lasting performance. With an 11mm strip length, it is compact, efficient, and easy to install in tight spaces such as junction boxes and panels.

Key Features

• Connection Capacity:

  • Rigid wire: 0.2–4mm²

  • Flexible wire: 0.08–2.5mm²

• Rated Current: 32A

• Rated Voltage: 450V

• Working Temperature: -40°C to +105°C

• Strip Length: 11mm / 0.43 inch

• Connector Shell & Lever: PA66

• Contact Spring: SS301 Stainless Steel

• Conductive Parts: Thinned Copper

Applications

The WICO 4-Pin Push-In Quick Wire Connector is ideal for:

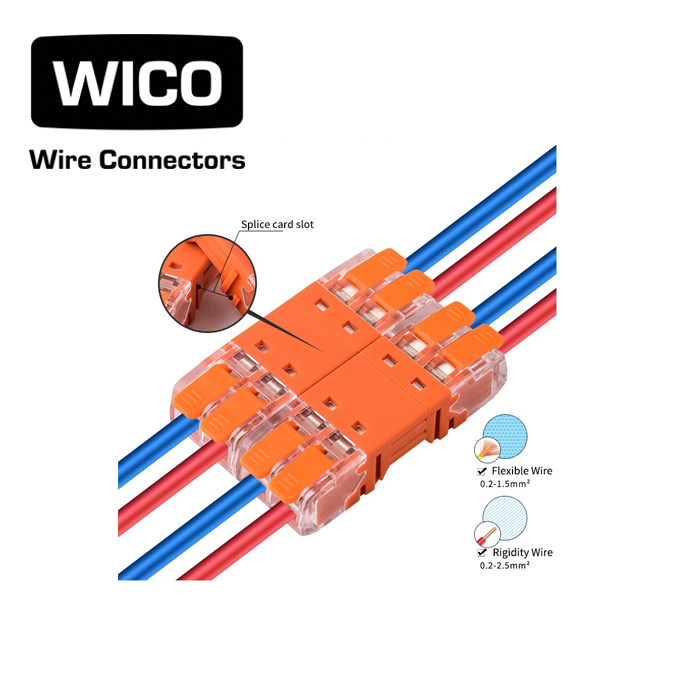

• Connecting multiple wires in one compact block

• Residential and commercial wiring projects

• Lighting and fixture installations

• Distribution boxes and control panels

• Industrial electrical systems

Choose WICO wire connectors for quick, tool-free splicing — combining the ease of Wago with WICO’s proven strength and dependability.
