Description

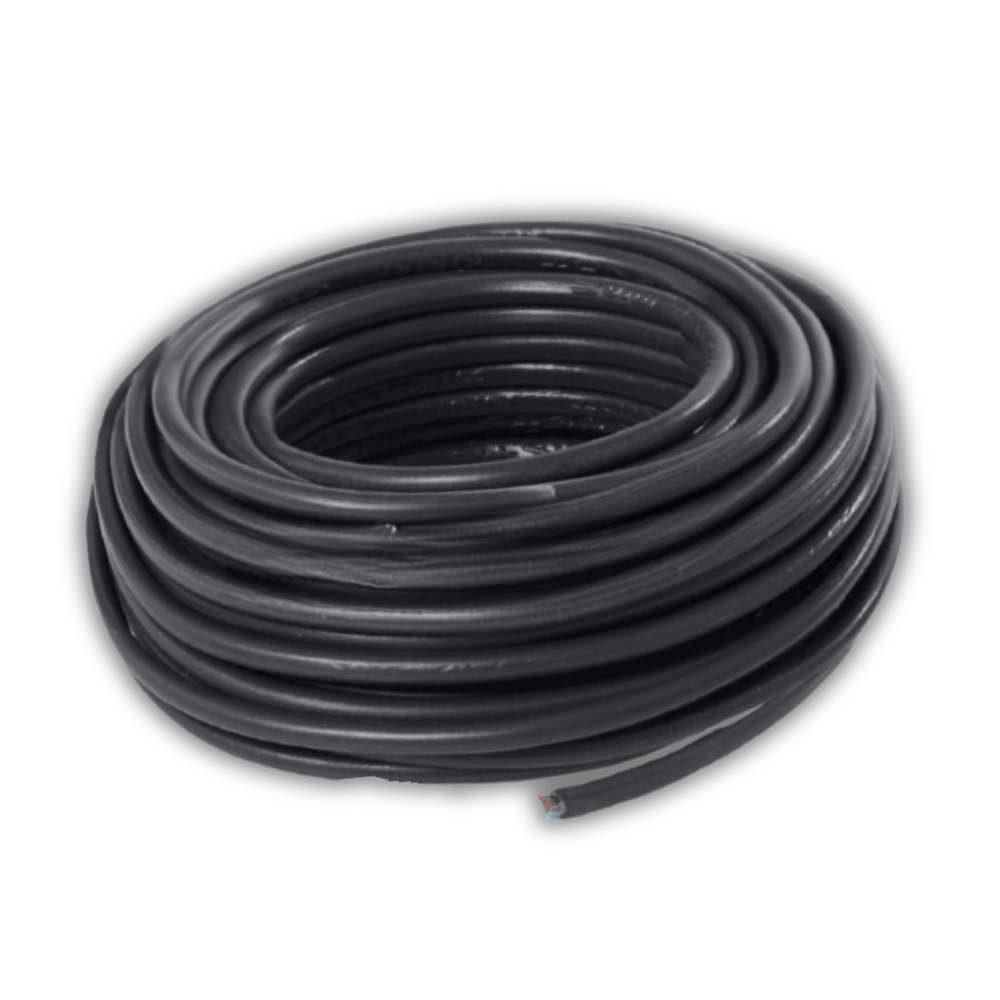

Vatan Kablo electrical cable FLEXIBLE Black - 3 core 2.5mm - roll of 100m
Vatan Cables FLEXIBLE H05VV-F 300-500V BLACK 3 x 2.5MM
Made in Turkey
Product characteristics
For n dry and wet places, household appliances, heaters etc.
Structure
Technıcal Data
Permissible operating temp. : 70 °C
Maximum short circuit temp. : 160 °C
Test voltage (AC): 2kV
Installation temp. min: -5 °C
Colour of outer sheath: White, Black
Technical Features
| Rated Cross Section mm² | 3 x 2.5 |
| Overall Diameter of Cable (Approx) mm | 10,00 |
| Current Carrying Capacity | |
| Air - | 25 |
| Conductor DC Resistance | |
| ohm/km (20°C) - | 7,98 |
| Net Weight (Approx) kg/km | 160 |
