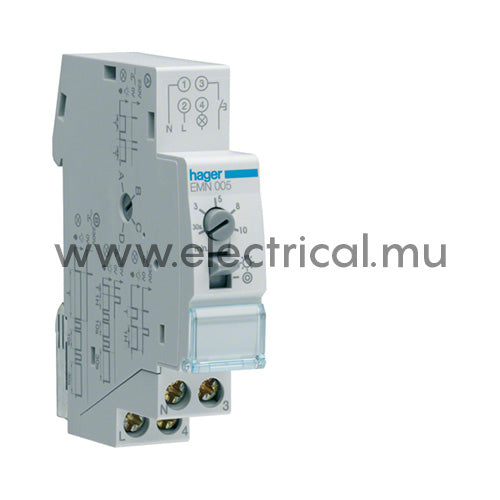

Description
| Architecture | |
|---|---|
| Fixing mode | Din-Rail |
| Main electrical features | |
| Rated operational voltage Ue | 195 / 230 / 253 V |
| Frequency | 50;60 Hz |
| Rated current | 16 A |
| Voltage | |
| Supply voltage | 230V AC |
| Electric current | |
| Acceptable current rating with AC1 | 16 A |
| Dimensions | |
| Depth of installed product | 64 mm |
| Length | 64 mm |
| Width of installed product | 17.5 mm |
| Power | |
| Max. power with fluo uncompensated lamps | 3600 VA |
| Power consumed | 1 VA |
| Total power loss under IN | 2 W |
| Power dissipation per coil | 0.25 W |
| Capacity | |
| Number of modules | 1 |
| Power supply | |
| Supply voltage | 230 V |
| Fluorescent bulbs control | |
| Max. power with fluorescent parallel lamps | 1000 VA |
| Incandescent bulbs control | |
| Max. power with incandescent lamps | 2300 W |
| Installation, mounting | |
| Mounting type | din-Rail |
| Connection | |
| Connection cross-sect. flexible conductor | 1 ; 6mm² |
| Connection cross-sect. rigid cable | 1,5 ; 10mm² |
| Type of connection | with screw |
| Connection type | 3 and 4 wires |
| Number of contacts | 1 |
| Type of contacts | 1NO |
| Settings | |
| Time delayed range | 30s ; 10min |
| Safety | |
| Protection index IP | IP20 |
| Use conditions | |
| Storage temperature | -20/60 °C |
| Temperature | |
| Operating temperature | -10/55 °C |
