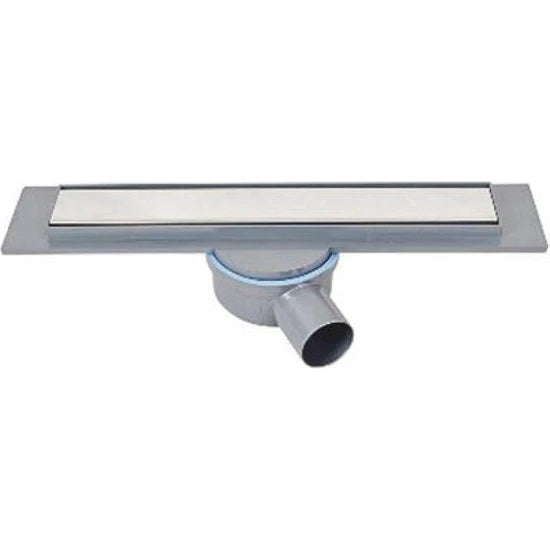

Sukar Line-3G Shower Drain 60cm Ø50 - Plastic Case (Plain Grate)

Linear Shower Drain / Suitable for liquid insulation, two-tier draining, plastic case

Length: 60cm

Width: 6 cm

Height (h): 8 cm

Outlet Diameter : Ø 50

Suitable for liquid insulation, two-tier draining, plastic case


304 quality stainless steel grille
Skirted ABS (plastic) case for waterproofing Water
system odor prevention
360° rotatable laminated seal
Ø50 mm ABS lower body
Adjustable leveling feet
6cm width
8cm height
50 mm outlet diameter

Advantages
- Thanks to its plastic insulated skirt, it allows for water insulation and smooth ceramic laying in the water leakage area between the last ceramic row and the strainer.
- 304 quality stainless steel grill.
- It can be easily connected to the installation pipe coming from any direction with its 360° rotatable laminated sealed lower body.
- Suitable for wall-mounted applications.
- Height adjustable feet make installation easier. Allows pouring slope concrete at the desired height.

Areas of Use
-It is offered as an economical solution for insulated or non-insulated showers. If desired, a twin drain feature can be added during application. It can also be used for wall-mounted applications.
- Bathroom showers,
- Saunas and spas,
- Hospital and hotel showers,
- Fitness center changing rooms and showers.

Commercial Presentation
The product is sold commercially with its case and grill.

Ease of Installation
- 360° rotatable lower body provides ease of installation by adjusting according to the installation direction. Height adjustable feet ensure that the system remains balanced while the slope screed is poured.
- The waterproofing applied on the slope concrete is combined with the insulation skirt of the channel using butyl tape.
- The plastic frame on the upper body allows for smooth ceramic laying.
- If desired, twin drain feature can be added to this system by drilling holes into the plastic frame.

Box contents
304 quality stainless steel grill, water system odor prevention, skirted ABS body height adjustable metal balance legs, 360° rotatable laminated sealed Q50 diameter ABS lower body, butyl tape
