Description

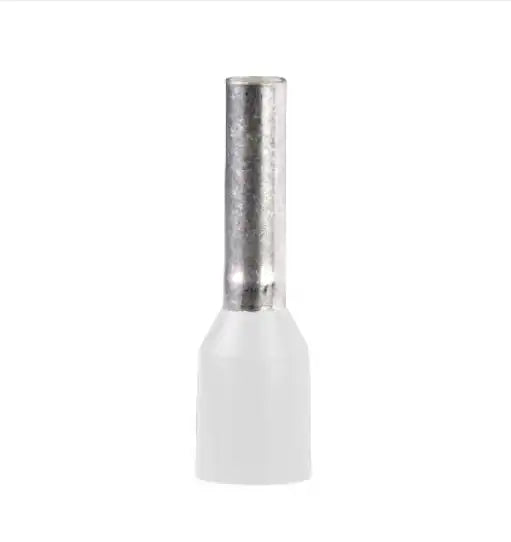

Starfix Linergy TR cable ends, single conductor, white, 0.5mm², medium size
Linergy cable end insulated without marker tag holder. It applied to single conductor with 0.5 mm² cable cross section. It has white surface treatment. It is medium size without marker tag holder. Packing by string of bags and quantity per set is 10 sets of 100. Ambient air temperature for operation is from -20 to 105 °C. It conforms to NF C 63-023 standard. It is UL certified. It is compliant with Green Premium (RoHS/REACH).
Specifications
| Range of Product | Linergy |
|---|---|
| Product or Component Type | Cable end |
| cable end size | Medium |
| Standards | NF C 63-023 |
| Type of Packing | String of bags |
| Quantity per Set | 10 sets of 100 |
| Cable cross section | 0.00 in² (0.5 mm²) |
| cable end type | Single conductor |
|---|---|
| additional information | Without marker tag holder |
| Color | White |
| bezel material | Halogen-free plastic |
| Tube material | Copper ISO 1337 |
| Number of cables | 1 |
| AWG gauge | AWG 22 |
| bezel size | Ø 3.1 mm |
| Tube diameter | 0.05 in (1.3 mm) |
| Length | 0.55 in (14 mm) |
| Tube length | 0.31 in (8 mm) |
| Net Weight | 0.20 lb(US) (0.09 kg) |
| Product Certifications | UL |
|---|---|
| Ambient air temperature for operation | -4…221 °F (-20…105 °C) |
| Category | 22621-IEC PANEL ACCESSORIES |
|---|---|
| Discount Schedule | I |
| GTIN |
3389110537123 |
- Linergy cable end insulated without marker tag holder
- Packing by string of bags and quantity per set is 10 sets of 100
- Releasing pressure on the sides stops the flow of cable ends
- Markable, standard, or twin available in three different lengths
- No need to use other marking accessories for cables
- Environmental performance of the product
