Description

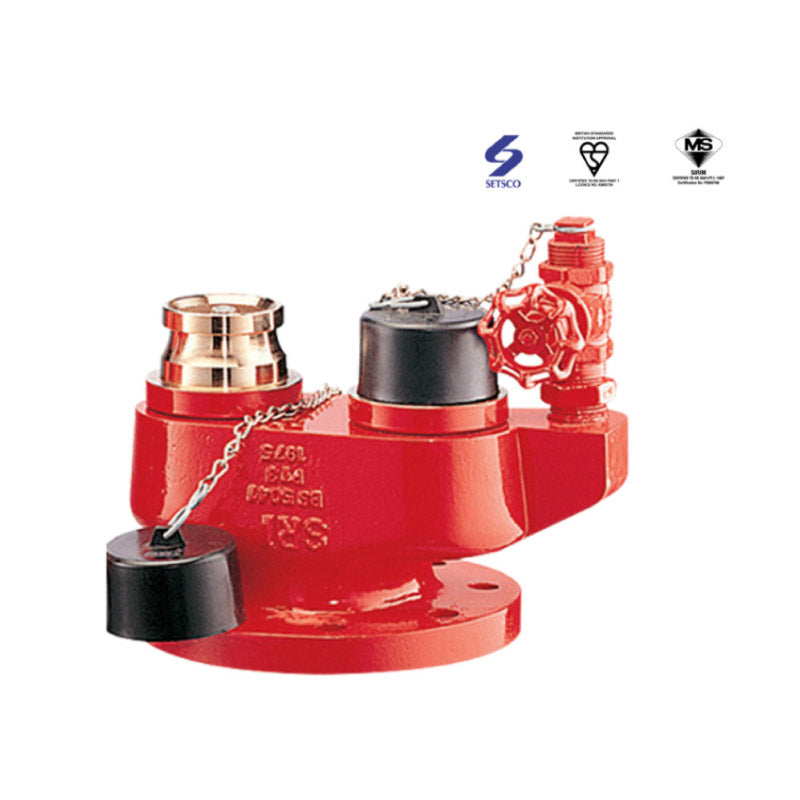

SRI 2-way Breeching Inlet
Category: Wet and Dry Riser Systems
Description
| Body | Ductile Iron |
| Inlet | BS Instantaneous Male Copper Alloy to BS 1982 |
| Outlet | 2 Way Breeching Inlet Flanged 4” table E. BS 10 |
| 4 Way Breeching Inlet Flanged 6” table E. BS 10 | |
| 2 Way Breeching Inlet Flanged 4” table D | |
| 2 Way Breeching Inlet Flanged 3” ANSI | |
| Working Pressure | 10 Bar |
| Testing Pressure | 20 Bar |
| Code No. | Description | Inlet Size | Outlet Size |
|---|---|---|---|
|
DRS095-DI-BSPN16
|
2-way breeching inlet
|
BS 336 Male
|
Table E/PN 16
|
|
WRS115-DI-BSPN16
|
4-way breeching inlet
|
BS 336 Male
|
Table E/PN 16
|
|
DRS095-DI-BSPN 16
|
2-way breeching inlet
|
BS 336 Male
|
Table D
|
|
DRS095-GM-080AN
|
2-way breeching inlet
|
BS 336 Male
|
3″ ANSI
|
Installation & commissioning to BS 5306 part 1.
