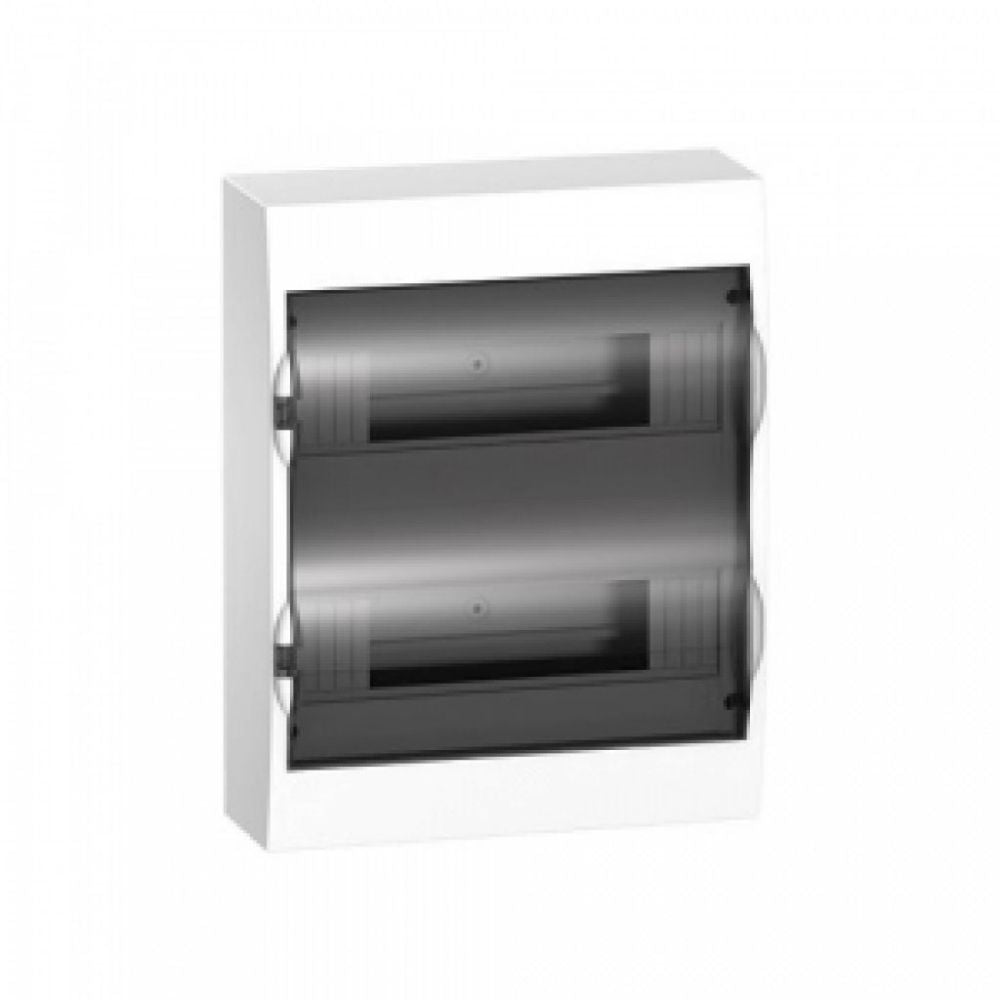

Easy9 - surface enclosure 24 modules - smoked door - with E/N term.blocks

This Easy9 enclosure is a surface mounted modular enclosure. This plastic enclosure is composed of 2 rows of 12 modules of 18mm. It can accomodate all types of modular switchgear. This enclosure is dedicated to indoor installation. The IP degree of protection is IP40 closed door, and IP30 open door. It is provided with a transparent smoked door reversible with an operating angle of 180°. The colour of enclosure is white (RAL 9003). It is intended for installation in residential. The cables can enter on the back of the enclosure by knock-out cable entries. It is equipped with a front cover with notch. It is provided with DIN rail. It comes with 2 earth/neutral terminal blocks. Each terminal block has 17 outgoers. The electrical insulation class is class II (double insulated). The Ui rated insulation voltage is 500V. The Ue rated operational voltage is 400VAC. The In rated current is up to 63A. This product complies with IEC 60670-1 and 24 standard. The total dimensions are (W) 256mm x (H) 326mm x (D) 96mm. The product weight is 1.29kg. The material is a plastic self-extinguishing material. Its resistance to flames and to abnormal heat is 650°C as per IEC 60695-2-10. The IK degree of protection is IK07. The operating temperature is -5°C to 60°C. The storage temperature is -15°C to 70 °C.
