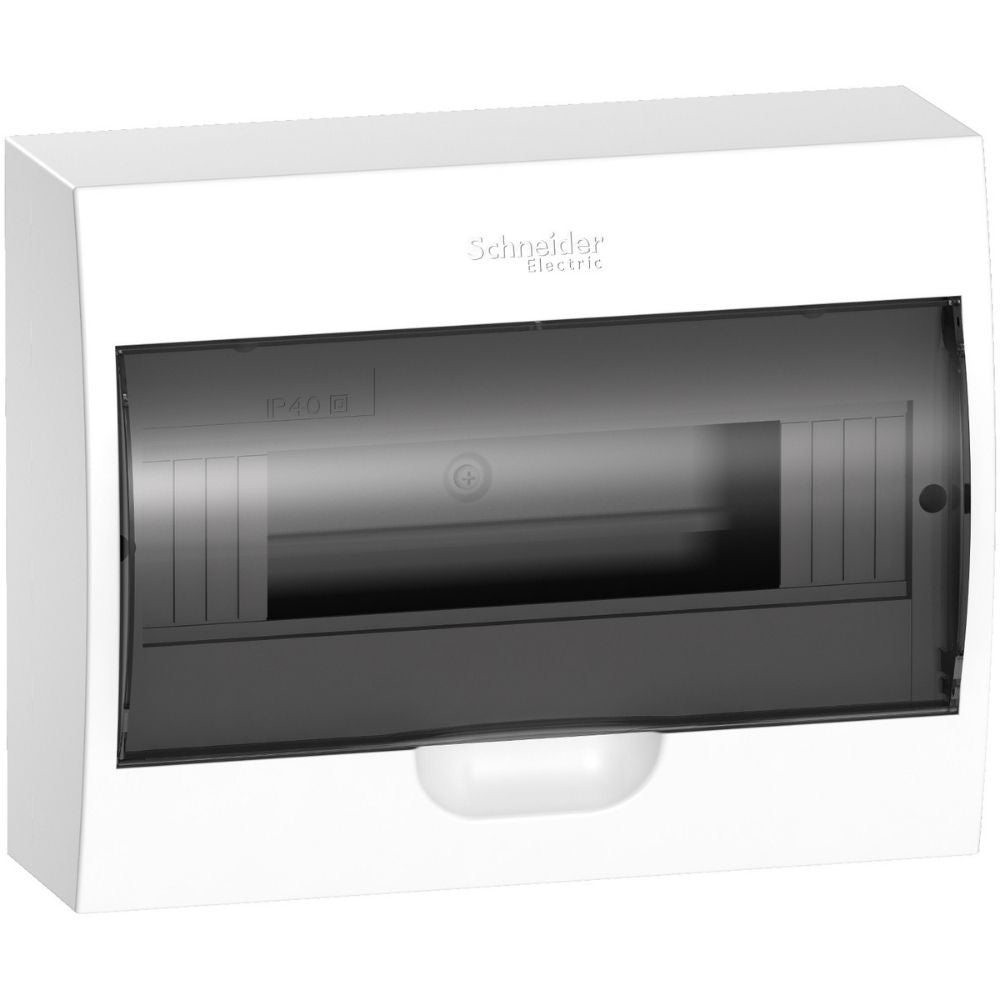

Easy9 - surface enclosure 12 modules - smoked door - with E/N term.blocks

This Easy9 enclosure is a surface mounted modular enclosure. This plastic enclosure is composed of 1 row of 12 modules of 18mm. It can accomodate all types of modular switchgear. This enclosure is dedicated to indoor installation. The IP degree of protection is IP40 closed door and IP30 open door. It is provided with a reversible transparent smoked door with an operating angle of 180°. The colour of the enclosure is white (RAL 9003). It is intended for installation in residential. The cables can enter on the back of the enclosure by knock-out cable entries. It is equipped with a front cover with notch. It can be mounted on DIN rail for modular installation. It comes with 2 earth/neutral terminal blocks with their support. Each terminal block has 8 outgoers. It has a Uimp rated impulse withstand voltage of 2.5kV. The pollution degree is 2. The In rated current is up to 63A. The electrical insulation class is class II (double insulated). The Ui rated insulation voltage is 500V. The Ue rated operational voltage is 400VAC. The dimensions are (W) 184mm x (H) 200mm x (D) 94mm. The product weight is 600g. The width in 9mm pitches are 16. The enclosure material is self-extinguishing plastic. Its resistance to flames and to abnormal heat is 650°C with duration of 1800s, conforming to IEC 60695-2-10 standard. According to IEC 62262 standard, the IK degree of protection is IK07. The operating temperature is from -5°C to +60°C. The storage temperature is from -15°C to +70°C. This enclosure is complies with IEC 60670-1 and 24 standards.
