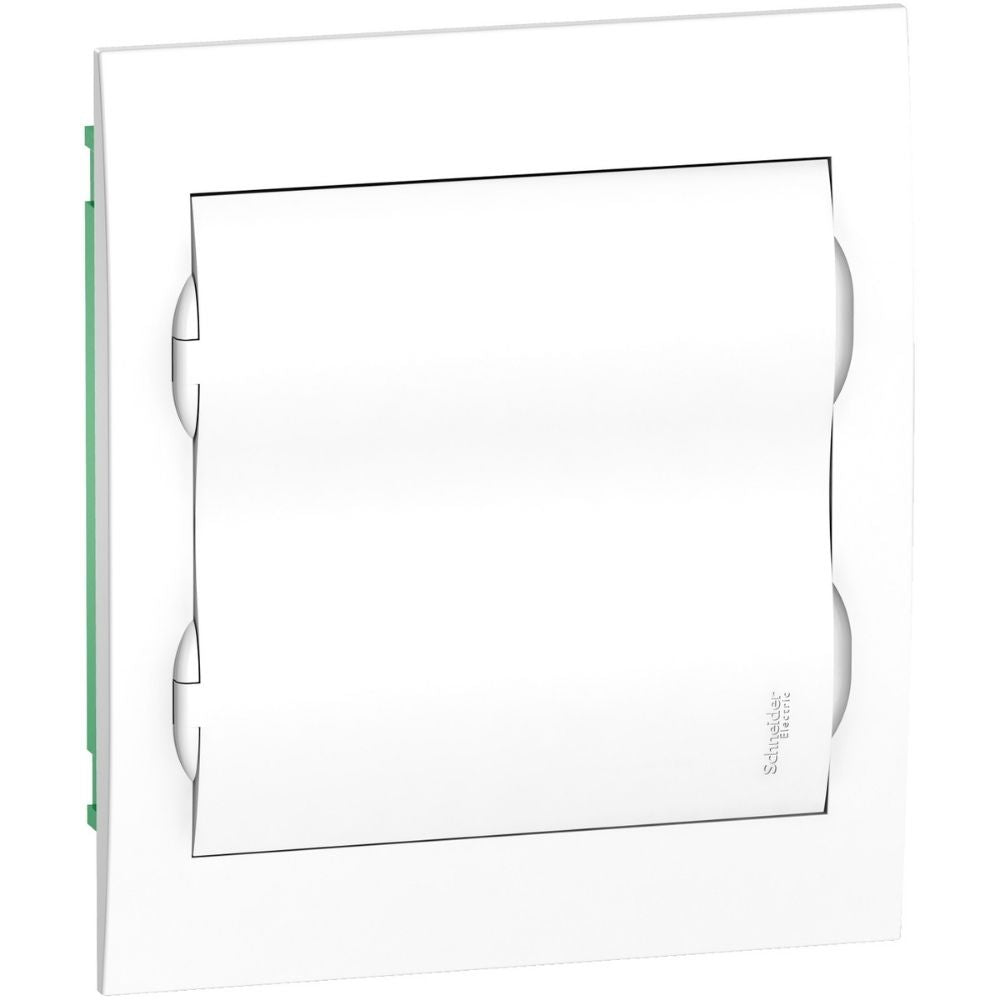

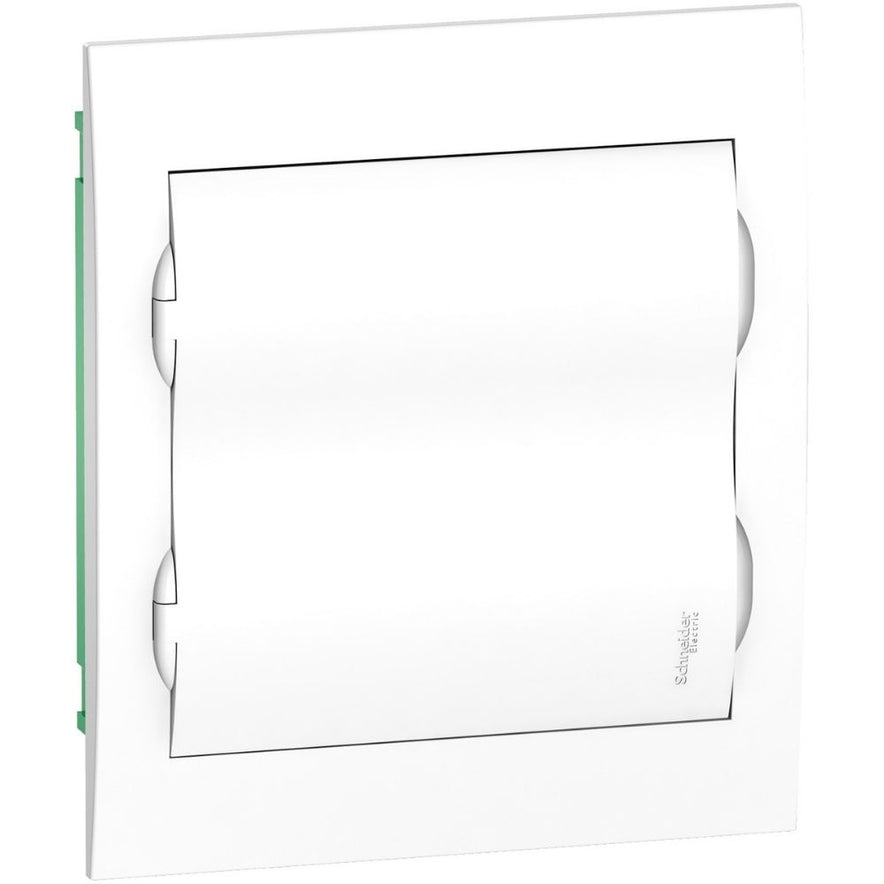

Easy9 - flush enclosure 24 modules - plain door - with E/N term.blocks

This Easy9 enclosure is a flush mounted modular enclosure. This plastic enclosure is composed of 2 rows of 12 modules of 18mm. It can accomodate all types of modular switchgear. This enclosure is dedicated to indoor installation. It is provided with a plain door reversible opening with an operating angle of 180°. It is intended for installation in residential. The cables can enter via the 4 sides of the enclosure with pre-holes for entry tubes. This product complies with IEC 60670-1-24 standard. This modular enclosure comes with 2 earth/neutral (screwed) terminal blocks with 17 outgoers. The material is self-extinguishing plastic. Its resistance to flames and to abnormal heat is 650°C as per IEC 60695-2-10 standard. The electrical insulation class is class II (double insulated). The In rated current is up to 63A. The Ui rated insulation voltage is 500V. The Ue rated operational voltage is 400VAC. It is equipped with a front cover with notch. It is provided with DIN rail. The total outside dimensions are (W) 300mm x (H) 345mm x (D) 100mm. The colour of enclosure is white (RAL 9003). The product weight is 1400g. The IP degree of protection is IP40 for closed door, and IP30 for open door. The IK degree of protection is IK07. The operating temperature is from -5°C to +60°C. The storage temperature is from -15°C to +70 °C.
