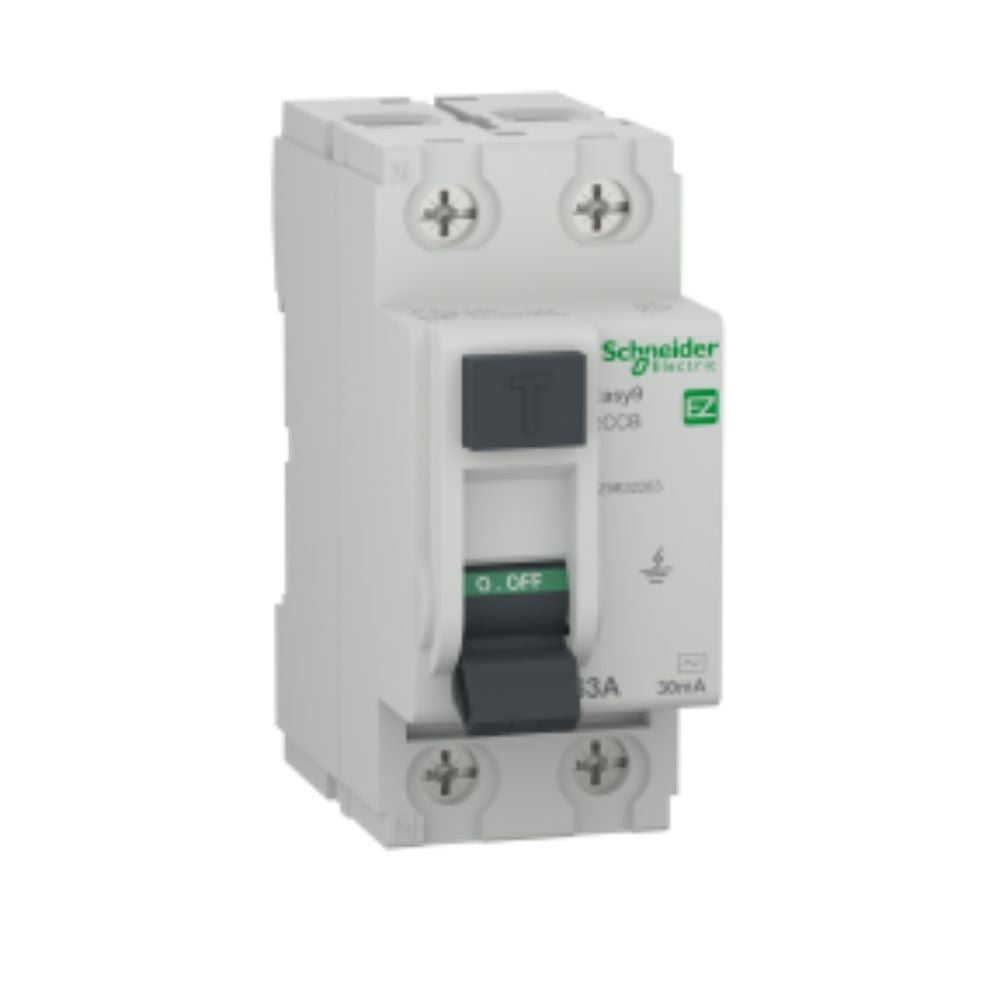

Schneider Easy9 RCD 2P Residual Current Circuit Breaker, 30 mA, AC type - 63A

This Easy9 is a residual current circuit breaker (RCCB). It is a 2P circuit breaker with a rated current In of 63 A, an earth leakage sensitivity of 30 mA and a protection class of type CA. This product protects against electric shocks by direct or indirect contact. It also has protection against fire hazards due to persistent earth fault current. This product has a position contact signaling with fault trip indication on the front panel by the position of the handle (0-I engraved). It is dedicated to residential buildings and small commercial buildings. It complies with the IEC 61008-1 standard. The rated breaking and short-circuit capacity (Im/m) is 500 A. The rated conditional short-circuit current (Inc/C000) is 6000 A. It has an electrical endurance of up to 4000 cycles and a mechanical endurance of up to 10000 cycles. The rated operating voltage Ue is up to 230 VAC with an operating frequency of 50 Hz. The rated insulation voltage Ui can reach 440 V. It has a rated impulse withstand voltage Uimp of 4kV. It can be mounted on a DIN rail for modular installation. The width in 9 mm steps is 4. The dimensions are (W) 36 mm x (H) 81 mm x (D) 73 mm. According to IEC 60529, the IP protection degree is IP20 and becomes IP40 once in a modular cabinet. The operating temperature is between -5 °C and +60 °C. The storage temperature is between -40 °C and +85 °C.
