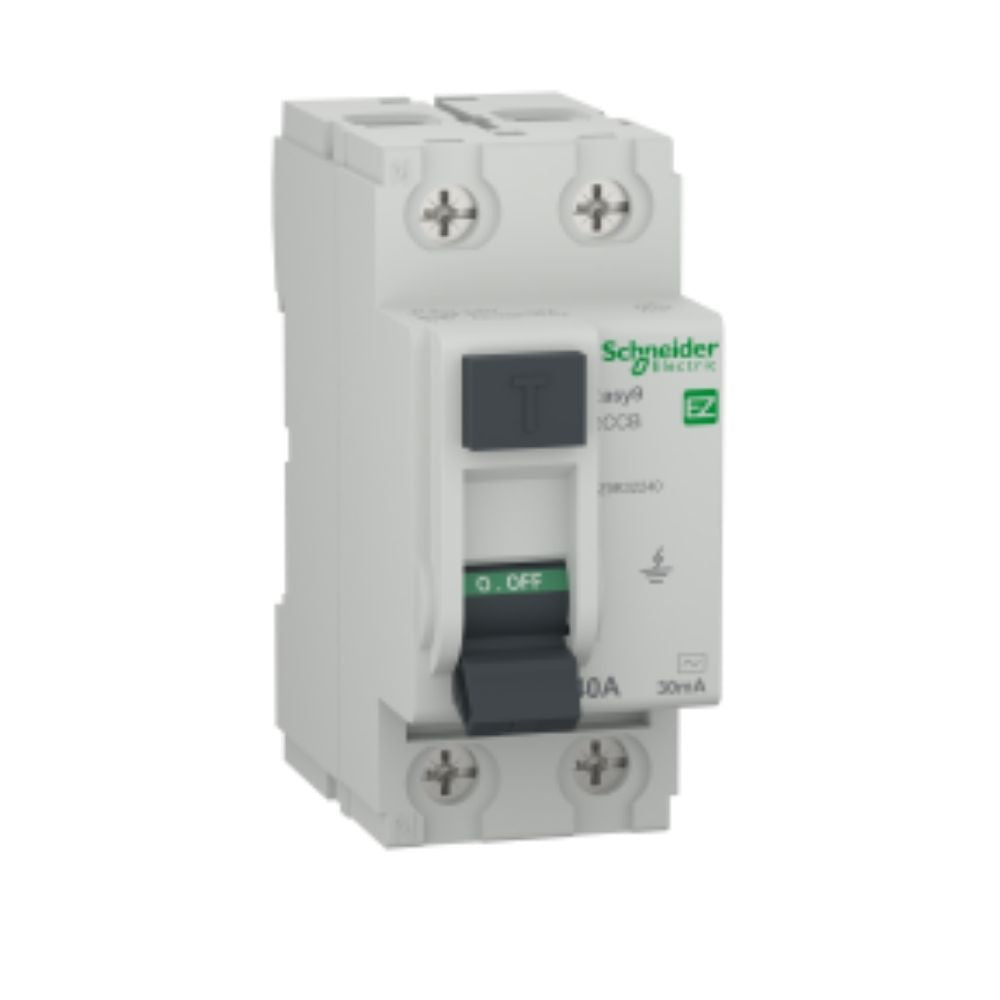

Schneider Easy9 RCD AC Type 2P 30 mA - 40A
Schneider Easy9 RCD AC Type 2P 30 mA - 40A
Regular price
Rs 1,700.00
Regular price
Sale price
Rs 1,700.00
Unit price
per
Tax included.
Couldn't load pickup availability
Shipping & Returns
Shipping & Returns
Delivery Available on this product.
We deliver all Mauritius domestic orders within 2-5 business days!
Schneider Easy9 RCD 2P Residual Current Circuit Breaker, 30 mA, AC type - 40A
Protection of persons against electric shock by direct contactnotification_ok
Suitability for residential isolation according to IEC 61008-1notification_ok
Easy to install with unified terminal design and wiring indicationnotification_ok
Complies with global RoHS/Reach regulations to protect your family and environment. This Easy9 is a residual current circuit breaker (RCCB). It is a 2P circuit breaker with a rated current In of 40 A, an earth leakage sensitivity of 30 mA and a protection class of type CA. This product protects against electric shocks by direct or indirect contact. It also has protection against fire hazards due to persistent earth fault current. This product has a position contact signaling with fault trip indication on the front panel by the position of the handle (0-I engraved). It is dedicated to residential buildings and small commercial buildings. It complies with the IEC 61008-1 standard. The rated breaking and short-circuit capacity (Im/m) is 500 A. The rated conditional short-circuit current (Inc/C000) is 6000 A. It has an electrical endurance of up to 4000 cycles and a mechanical endurance of up to 10000 cycles. The rated operating voltage Ue is up to 230 VAC with an operating frequency of 50 Hz. The rated insulation voltage Ui can reach 440 V. It has a rated impulse withstand voltage Uimp of 4kV. It can be mounted on a DIN rail for modular installation. The width in 9 mm steps is 4. The dimensions are (W) 36 mm x (H) 81 mm x (D) 73 mm. According to IEC 60529, the IP protection degree is IP20 and becomes IP40 once in a modular cabinet. The operating temperature is between -5 °C and +60 °C. The storage temperature is between -40 °C and +85 °C.
| Range | Easy9 |
|---|---|
| Type of product or equipment | Differential switch |
| Application | Protection |
| Poles | 2P |
| Position of the neutral pole | LEFT |
| Network type | THAT |
| Differential sensitivity | 30 mA |
| Differential protection time delay | Instant |
| Differential protection class | Type AC |
| Assigned cutting and closing power | 500 A 230 V complying with IEC 61008-1 |
| Conditional short-circuit rated current | 6000 A |
| Position of the equipment in the installation | Departure |
|---|---|
| Network frequency | 50/60 Hz |
| [Ue] assigned operating voltage | 230 V AC 50 Hz |
| [Ui] assigned insulation voltage | 440 V |
| [Uimp] assigned impulse withstand voltage | 4 kV |
| Fully apparent cut | Yes |
| Order Type | By crank |
| Installation mode | Snap-on |
| Mounting bracket | DIN rail |
| 9mm pitch | 4 |
| Height | 81 mm |
| Width | 36 mm |
| Depth | 73 mm |
| Mechanical endurance | 10000 cycles |
| Electrical life | 4000 cycles |
| Connection mode | Cage type terminal (top or bottom) 1…35 mm² rigid Cage type terminal (top or bottom) 1…35 mm² flexible |
| Tightening torque | 3.5 Nm top or bottom |
| Target country | Albania Kosovo Macedonia |
| Market segment | Residential |
| Standards | IEC 61008-1 |
|---|---|
| IP protection degree | IP20 IP40 (modular housing) |
| Degree of pollution | 2 |
| Tropicalization | 2 comply with IEC 60068-2-30 |
| Relative humidity | 95% at 55°C |
| Ambient air temperature in operation | -5…60 °C |
| Ambient storage temperature | -40…85 °C |
