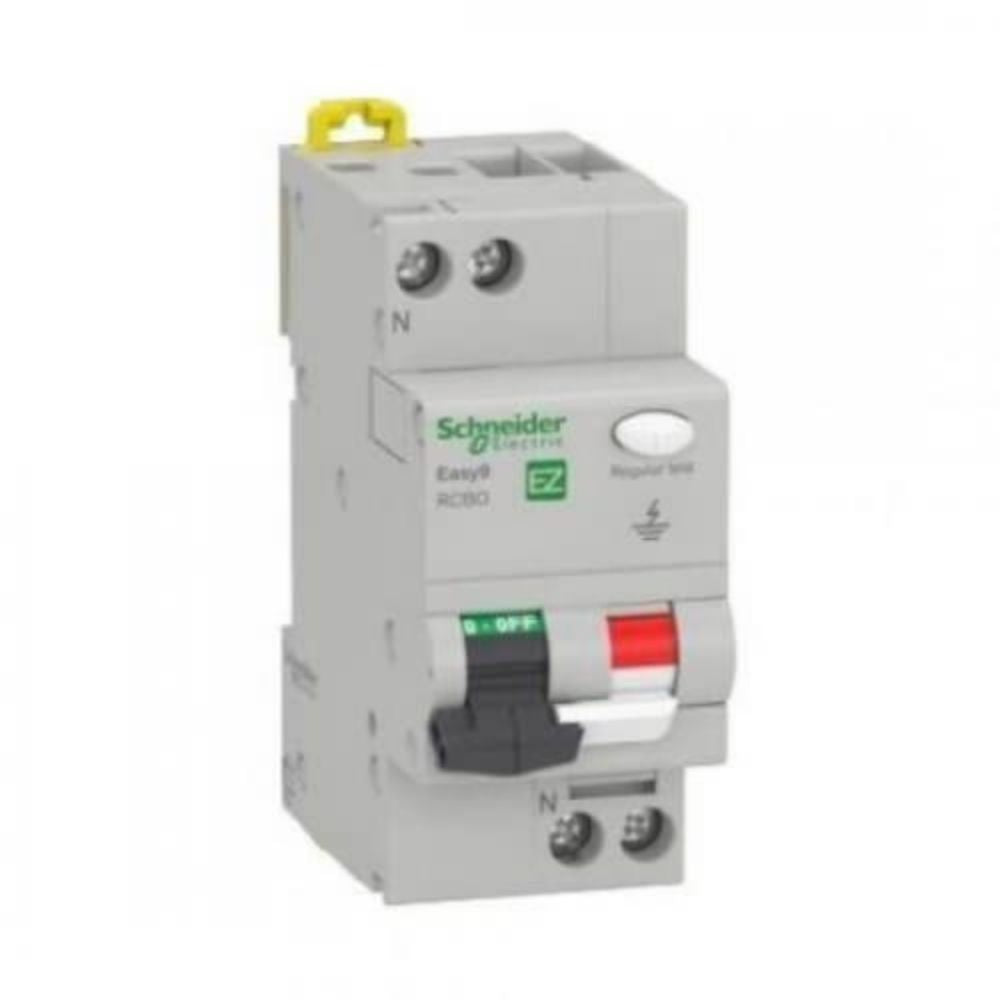

• Schneider Easy9 RCBO C Curve 1P+N 6kA 30 mA - 40A
1 1

Schneider Easy9 RCBO C Curve 1P+N 6kA 30 mA - 40A

Schneider Easy9 RCBO C Curve 1P+N 6kA 30 mA - 40A

Rs 1,950.00
Rs 1,950.00
Sale Sold out
Tax included.

Type : RCBO

SKU : EZ9D35640

Collections : Circuit Breakers, Schneider Easy9,

Availability : In Stock

Shipping & Returns

Delivery Available on this product.
We deliver all Mauritius domestic orders within 2-5 business days!

View full details

Schneider Easy9 RCBO 1P+N C Curve 6000A 30 mA, type AC

40A

main
Range Easy9
Product or component type Residual current breaker with overcurrent protection (RCBO)
poly 1P + N
neutral position Left
number of protected poles 1
Electrical network type That
trigger unit technology Thermo-magnetic
code for the curve C
ground connection sensitivity 30 mA
earth leakage protection delay Instantaneous
earth leakage protection class Type AC
breaking capacity 4500 A
more
device application Protection
device location in the system output
power grid frequency 50Hz
[Ue] operating voltage 230 V AC 50 Hz
magnetic trip limit 5...10 x In
nominal breaking and yielding capacity 4500 A
[Uimp] rated impulse withstand voltage 4 kV
ignition position indicator Yes
control type commutation
mounting bracket DIN rail
mounting method Clips
Number of 9mm steps per row 4
height 82 mm
width 36 mm
depth 70.5mm
mechanical durability 10000 cycles
electrical durability 4000 cycles
connections - terminals Tunnel type terminal (top or bottom) 1…16 mm² rigid
Tunnel type terminal (top or bottom) 1…16 mm² flexible
tightening torque 2 Nm up or down
earth leakage protection cover
environment
standard EN 61009-1
IP protection level IP20
IP40 (modular housing)
tropicalization 2 conforming to IEC 60068-2-30
relative humidity 95% at 55°C
ambient operating temperature -5…60 °C
ambient temperature for storage -40…85 °C
