• Schneider Easy9 MCB C Curve 1P+N 6kA - 25A
1 1

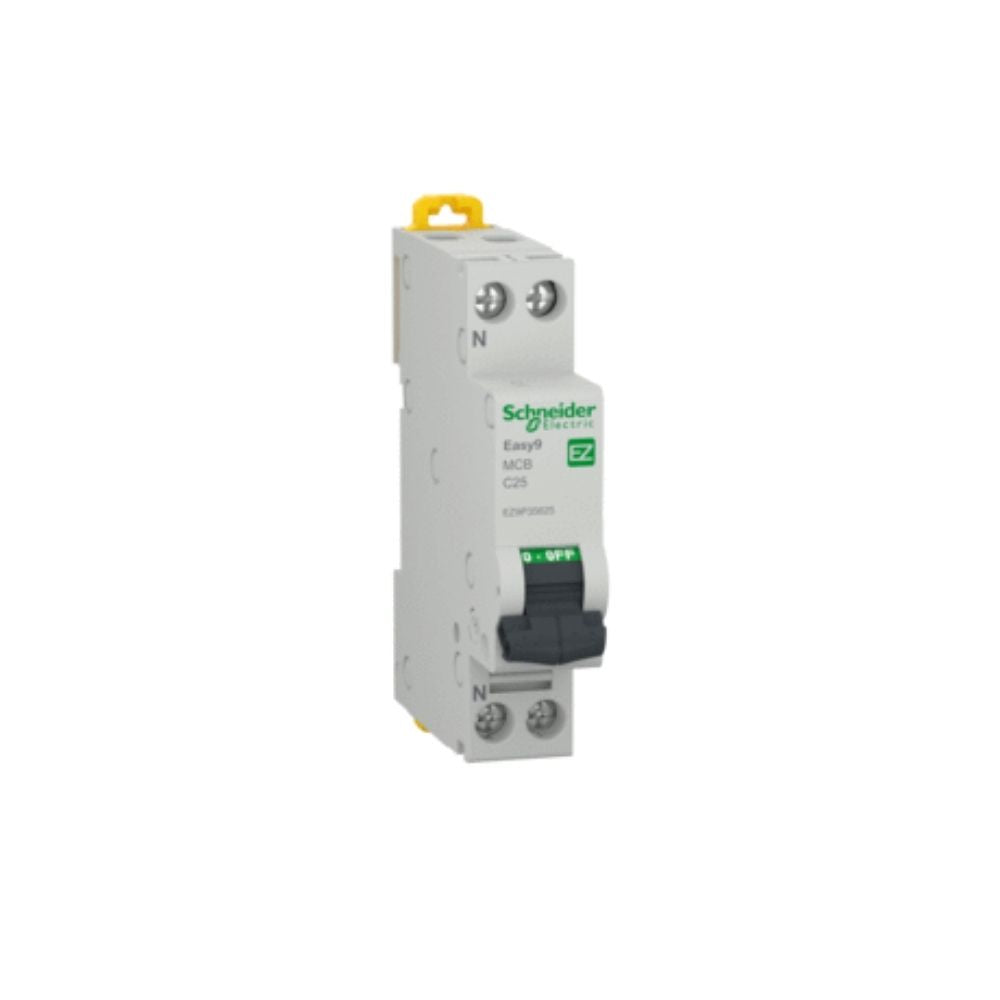

Schneider Easy9 MCB C Curve 1P+N 6kA - 25A

Schneider Easy9 MCB C Curve 1P+N 6kA - 25A

Rs 411.00
Rs 411.00
Sale Sold out
Tax included.

Type : MCB

SKU : EZ9P35625

Collections : Circuit Breakers, Schneider Easy9,

Availability : In Stock

Shipping & Returns

Delivery Available on this product.
We deliver all Mauritius domestic orders within 2-5 business days!

View full details

Schneider Easy9 Circuit breaker 1P+N 6000 C 25A Miniature Circuit Breaker From

25A

Main
Range Easy9
Application Protection
Type of product or equipment Miniature circuit breaker
Poles 1P + N
Number of protected poles 1
Network type THAT
Trigger Type Thermal-magnetic
Trigger curve C
Cutting power 6000 A Icn at 230 V AC 50 Hz conforming to IEC 60898-1
Sectioning Ability Yes compliant with IEC 60898-1
Complementary
Network frequency 50/60 Hz
[Ue] assigned operating voltage 230 V AC 50 Hz
Magnetic trigger 5,,,10 x In
Limitation class 3
[Ui] assigned insulation voltage 440 V
[Uimp] assigned impulse withstand voltage 4 kV
Fully apparent cut Yes
Order Type By crank
Voltage indication Without
Installation mode Snap-on
Mounting bracket DIN rail
9mm pitch 2
Height 81 mm
Width 18 mm
Depth 78 mm
Mechanical endurance 10000 cycles
Electrical life 4000 cycles
Connection mode Cage type terminal (top or bottom) 1…16 mm² rigid
Cage type terminal (top or bottom) 1…16 mm² flexible
Tightening torque 2 Nm high or low
Differential protection Without
Environment
Standards IEC 60898-1
IP protection degree IP20
IP40 (modular housing)
Degree of pollution 2
Overvoltage Category III
Tropicalization 2 comply with IEC 60068-2-30
Relative humidity 95% at 55°C
Ambient air temperature in operation -25…60 °C
Ambient storage temperature -40…85 °C
