• Schneider Easy9 MCB C Curve 1P+N 4.5KA - 6A
1 1

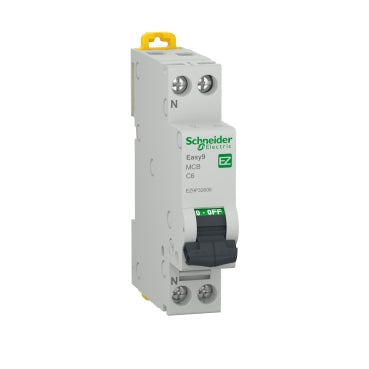

Schneider Easy9 MCB C Curve 1P+N 4.5KA - 6A

Schneider Easy9 MCB C Curve 1P+N 4.5KA - 6A

Rs 330.00
Rs 330.00
Sale Sold out
Tax included.

Type : MCB

SKU : EZ9P32606

Collections : Circuit Breakers, Schneider Easy9,

Availability : In Stock

Shipping & Returns

Delivery Available on this product.
We deliver all Mauritius domestic orders within 2-5 business days!

View full details

Miniature circuit breaker (MCB), Easy9, 1P+N, C curve, 4500 A (IEC/EN 60898-1) -

6 A



Combine protection against short circuit and overload currents
notification_ok
Suitability for residential isolation according to IEC 60898-1
notification_ok
Easy to install with unified terminal design and wiring indication
notification_ok
Complies with global RoHS/Reach regulations to protect your family and environment
This Easy9 is a low voltage miniature circuit breaker (MCB). It is a 1P+N circuit breaker with 1 protected pole, 6 A rated current and tripping curve C. The rated short-circuit breaking capacity Icn can reach 4500 A at 230 VAC, in accordance with IEC 60898-1. It complies with IEC 60898-1. This product has short-circuit protection and cable overload protection. It has a fault trip indication on the front panel by the position of the handle (OI engraved). This product is dedicated to residential buildings and small commercial buildings. It has an electrical endurance of up to 4000 cycles and a mechanical endurance of up to 10000 cycles. The rated operating voltage Ue is up to 230VAC with an operating frequency of 50Hz. The rated insulation voltage Ui can reach 440V. It has an assigned impulse withstand voltage Uimp of 4kV. The overvoltage category is 3. It can be mounted on a DIN rail for modular installation. The width in 9mm steps is 2. The dimensions are (W) 18mm x (H) 81mm x (D) 78mm. According to IEC 60529, the IP degree of protection is IP20 and becomes IP40 once in a modular cabinet. The operating temperature is -25°C to +60°C. The storage temperature is -40°C to +85°C.

Main
Range Easy9
Application Protection
Type of product or equipment Miniature circuit breaker
Poles 1P + N
Number of protected poles 1
In assigned current employment 6 A
Network type THAT
Trigger Type Thermal-magnetic
Trigger curve C
Cutting power 4500 A Icn at 230 V AC 50 Hz conforming to IEC 60898-1
Sectioning Ability Yes compliant with IEC 60898-1
Complementary
Network frequency 50/60 Hz
[Ue] assigned operating voltage 230 V AC 50 Hz
Magnetic trigger 5,,,10 x In
Limitation class 3
[Ui] assigned insulation voltage 440 V
[Uimp] assigned impulse withstand voltage 4 kV
Fully apparent cut Yes
Order Type By crank
Voltage indication Without
Installation mode Snap-on
Mounting bracket DIN rail
9mm pitch 2
Height 81 mm
Width 18 mm
Depth 78 mm
Mechanical endurance 10000 cycles
Electrical life 4000 cycles
Connection mode Cage type terminal (top or bottom) 1…16 mm² rigid
Cage type terminal (top or bottom) 1…16 mm² flexible
Tightening torque 2 Nm high or low
Differential protection Without
Environment
Standards IEC 60898-1
IP protection degree IP20
IP40 (modular housing)
Degree of pollution 2
Overvoltage Category III
Tropicalization 2 comply with IEC 60068-2-30
Relative humidity 95% at 55°C
Ambient air temperature in operation -25…60 °C
Ambient storage temperature -40…85 °C
