• Schneider Acti9 MCB C Curve 4P 6kA - 40A
1 1

Schneider Acti9 MCB C Curve 4P 6kA - 40A

Schneider Acti9 MCB C Curve 4P 6kA - 40A

Rs 2,830.00
Rs 2,830.00
Sale Sold out
Tax included.

Type : MCB

SKU : A9F79440

Collections : Circuit Breakers, Electric Vehicle Chargers,

Availability : In Stock

Shipping & Returns

Delivery Available on this product.
We deliver all Mauritius domestic orders within 2-5 business days!

View full details

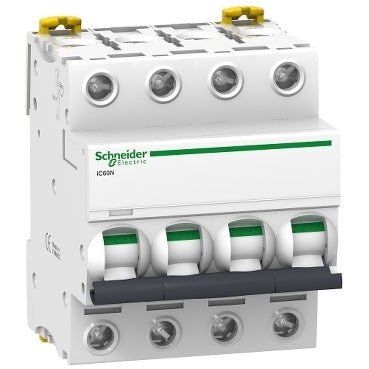

Miniature circuit-breaker, Acti9 iC60N, 4P, 40 A, C curve, 6000 A (IEC 60898-1)



Main
device application Distribution
range Acti 9
product name Acti9 iC60
product or component type Miniature circuit-breaker
device short name IC60N
poles description 4P
number of protected poles 4
[In] rated current 40 A
network type AC
DC
trip unit technology Thermal-magnetic
curve code C
breaking capacity 6000 A Icn at 400 V AC 50/60 Hz conforming to EN/IEC 60898-1
36 kA Icu at 12...60 V AC 50/60 Hz conforming to EN/IEC 60947-2
10 kA Icu at 380...415 V AC 50/60 Hz conforming to EN/IEC 60947-2
20 kA Icu at 220...240 V AC 50/60 Hz conforming to EN/IEC 60947-2
6 kA Icu at 440 V AC 50/60 Hz conforming to EN/IEC 60947-2
36 kA Icu at 100...133 V AC 50/60 Hz conforming to EN/IEC 60947-2
10 kA Icu at <= 250 V DC conforming to EN/IEC 60947-2
utilisation category Category A conforming to EN 60947-2
Category A conforming to IEC 60947-2
suitability for isolation Yes conforming to EN 60898-1
Yes conforming to EN 60947-2
Yes conforming to IEC 60898-1
Yes conforming to IEC 60947-2
standards IEC 60898-1
EN 60898-1
EN 60947-2
IEC 60947-2
Complementary
network frequency 50/60 Hz
magnetic tripping limit 8 x In +/- 20 %
[Ics] rated service breaking capacity 15 kA 75 % conforming to EN 60947-2 - 220...240 V AC 50/60 Hz
7.5 kA 75 % conforming to EN 60947-2 - 380...415 V AC 50/60 Hz
4.5 kA 75 % conforming to EN 60947-2 - 440 V AC 50/60 Hz
15 kA 75 % conforming to IEC 60947-2 - 220...240 V AC 50/60 Hz
7.5 kA 75 % conforming to IEC 60947-2 - 380...415 V AC 50/60 Hz
4.5 kA 75 % conforming to IEC 60947-2 - 440 V AC 50/60 Hz
27 kA 75 % conforming to IEC 60947-2 - 12...133 V AC 50/60 Hz
27 kA 75 % conforming to EN 60947-2 - 12...133 V AC 50/60 Hz
6000 A 100 % conforming to EN 60898-1 - 400 V AC 50/60 Hz
6000 A 100 % conforming to IEC 60898-1 - 400 V AC 50/60 Hz
10 kA 100 % conforming to IEC 60947-2 - 180...250 V DC
10 kA 100 % conforming to EN 60947-2 - 180...250 V DC
limitation class 3 conforming to EN 60898-1
3 conforming to IEC 60898-1
[Ui] rated insulation voltage 500 V AC 50/60 Hz conforming to EN 60947-2
500 V AC 50/60 Hz conforming to IEC 60947-2
[Uimp] rated impulse withstand voltage 6 kV conforming to EN 60947-2
6 kV conforming to IEC 60947-2
contact position indicator Yes
control type Toggle
local signalling Trip indicator
mounting mode Fixed
mounting support DIN rail
comb busbar and distribution block compatibility Top or bottom: YES
9 mm pitches 8
height 85 mm
width 72 mm
depth 78.5 mm
net weight 0.5 kg
colour White
mechanical durability 20000 cycles
electrical durability 10000 cycles
connections - terminals Single terminal (top or bottom) 1…35 mm² rigid
Single terminal (top or bottom) 1…25 mm² flexible
wire stripping length 14 mm for top or bottom connection
tightening torque 3.5 N.m top or bottom
earth-leakage protection Separate block
Environment
IP degree of protection IP20 conforming to IEC 60529
IP20 conforming to EN 60529
pollution degree 3 conforming to EN 60947-2
3 conforming to IEC 60947-2
overvoltage category IV
tropicalisation 2 conforming to IEC 60068-1
relative humidity 95 % at 55 °C
operating altitude 0...2000 m
ambient air temperature for operation -35…70 °C
ambient air temperature for storage -40…85 °C
Packing Units
Unit Type of Package 1 PCE
Number of Units in Package 1 1
Package 1 Weight 479.0 g
Package 1 Height 7.2 cm
Package 1 width 7.5 cm
Package 1 Length 9.4 cm
Unit Type of Package 2 BB1
Number of Units in Package 2 3
Package 2 Weight 1.494 kg
Package 2 Height 8.5 cm
Package 2 width 10 cm
Package 2 Length 22 cm
Unit Type of Package 3 S03
Number of Units in Package 3 33
Package 3 Weight 16.96 kg
Package 3 Height 30 cm
Package 3 width 30 cm
Package 3 Length 40 cm
