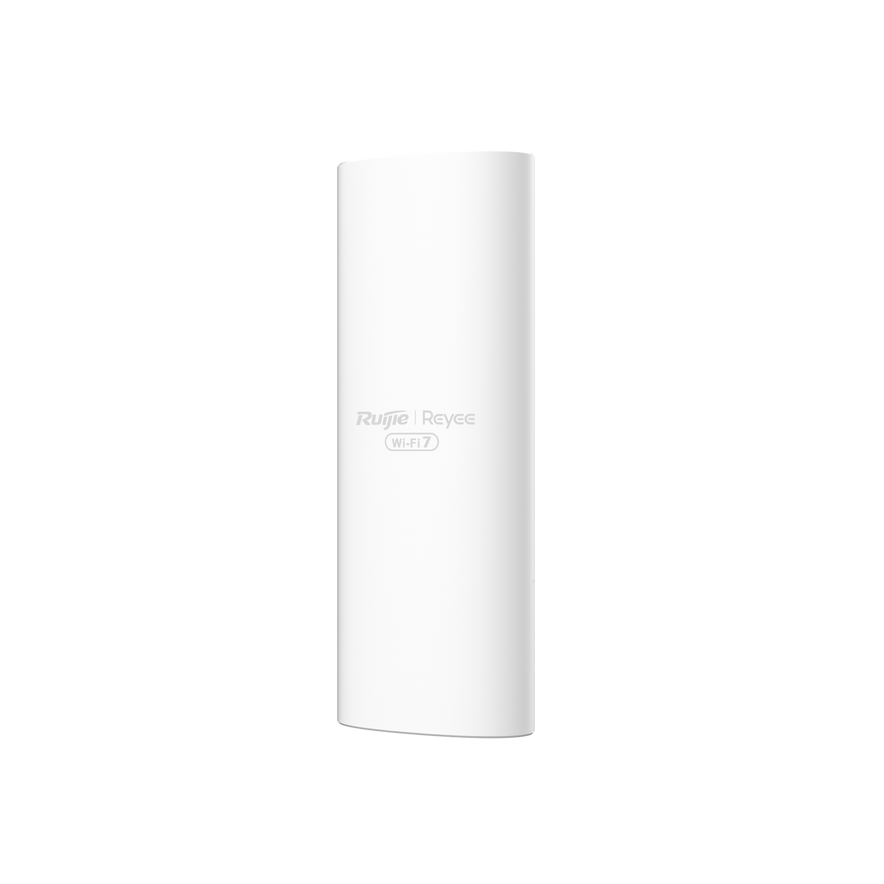

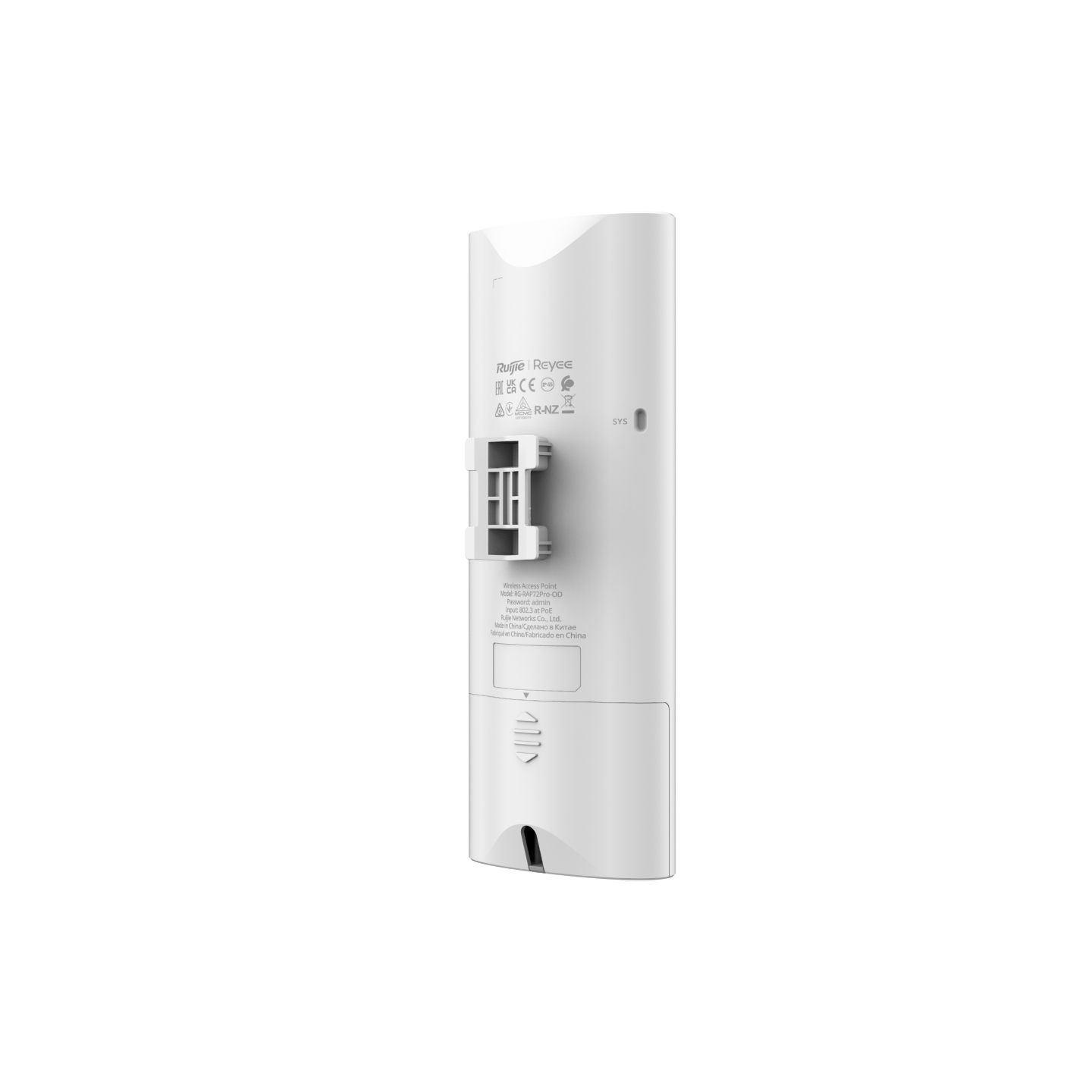

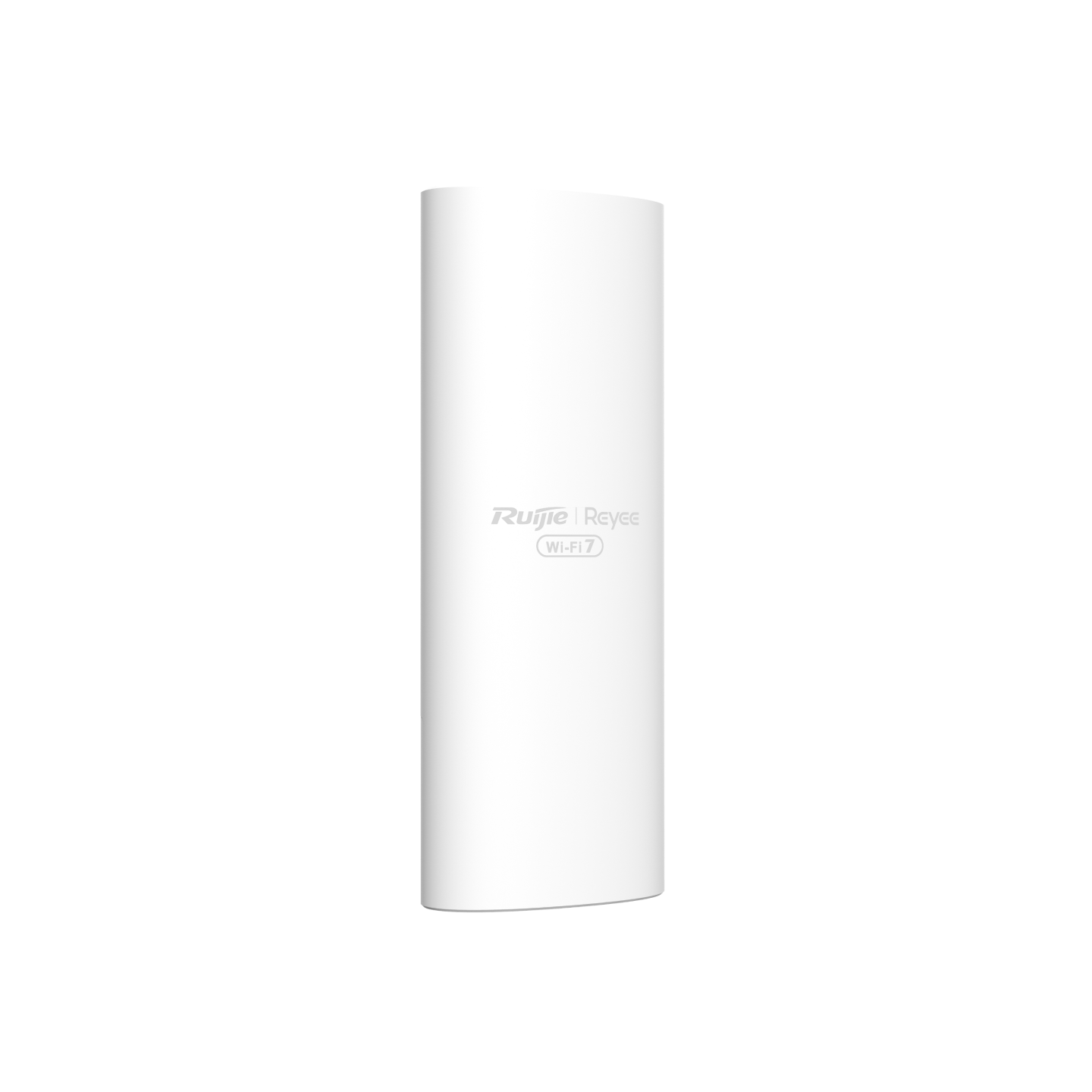

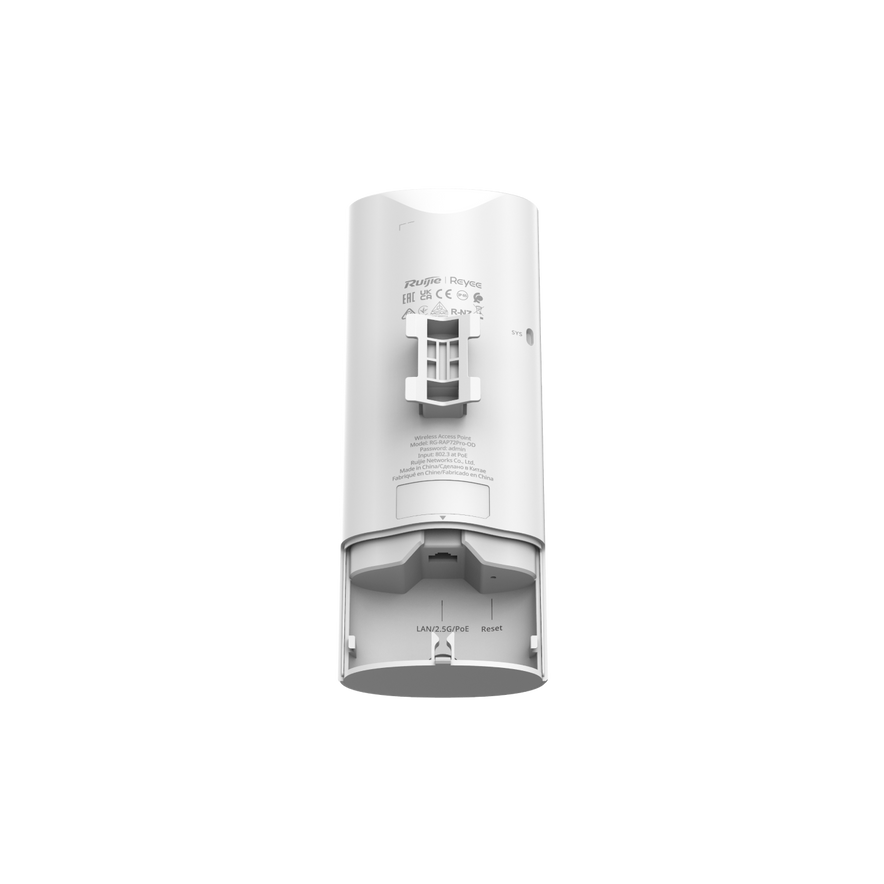

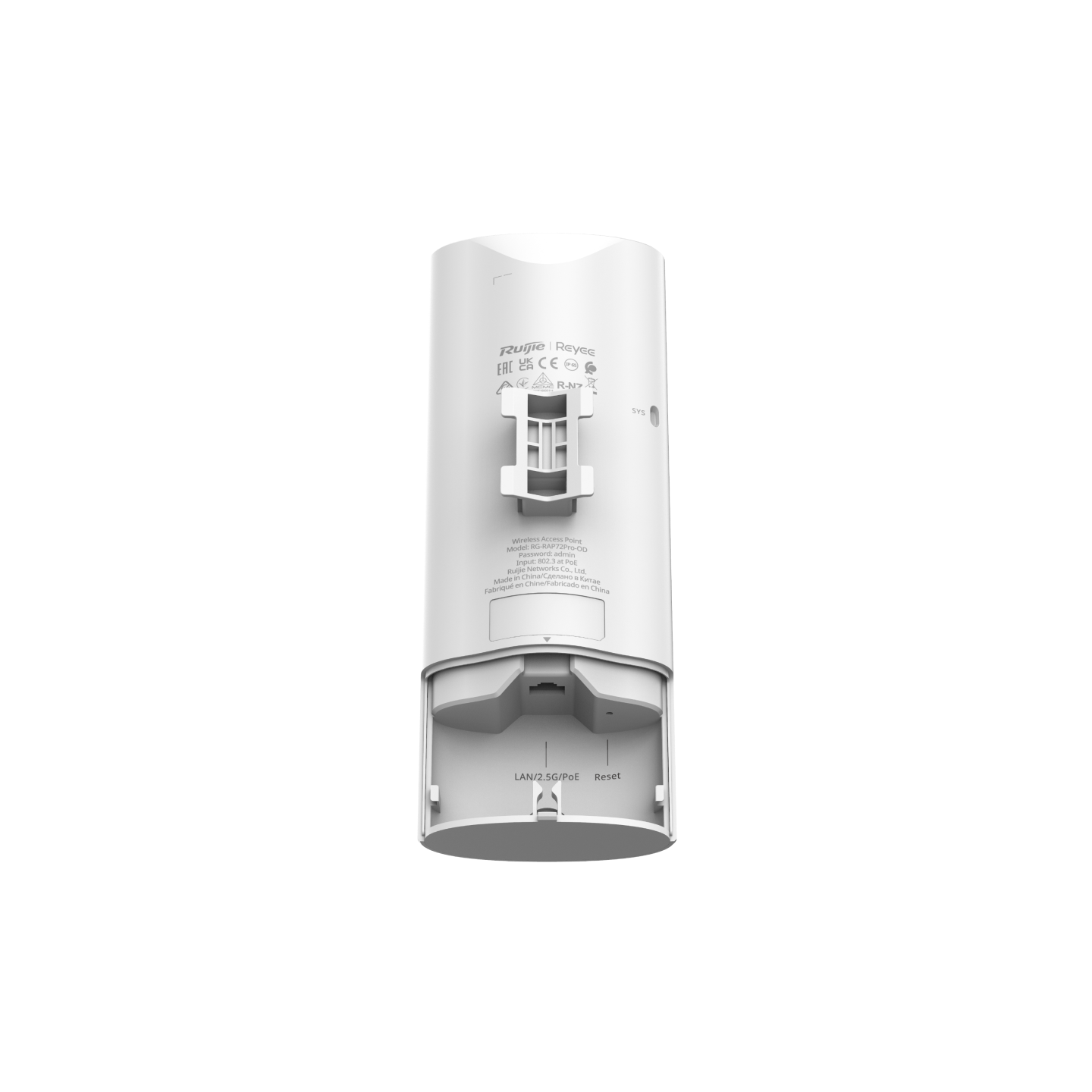

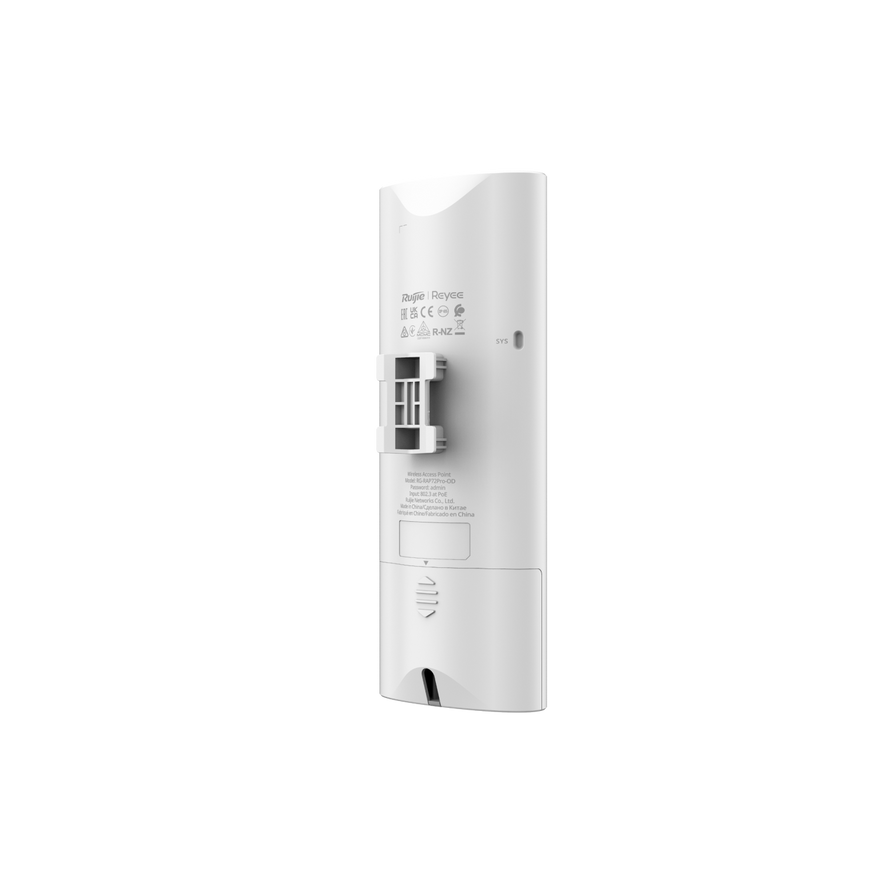

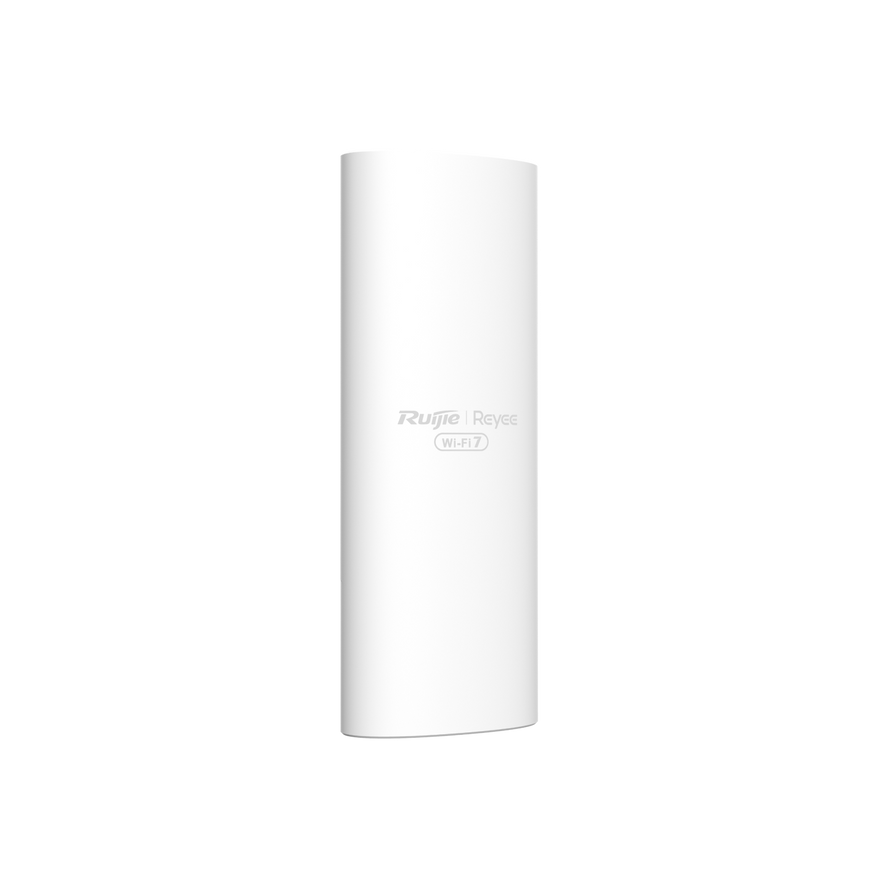

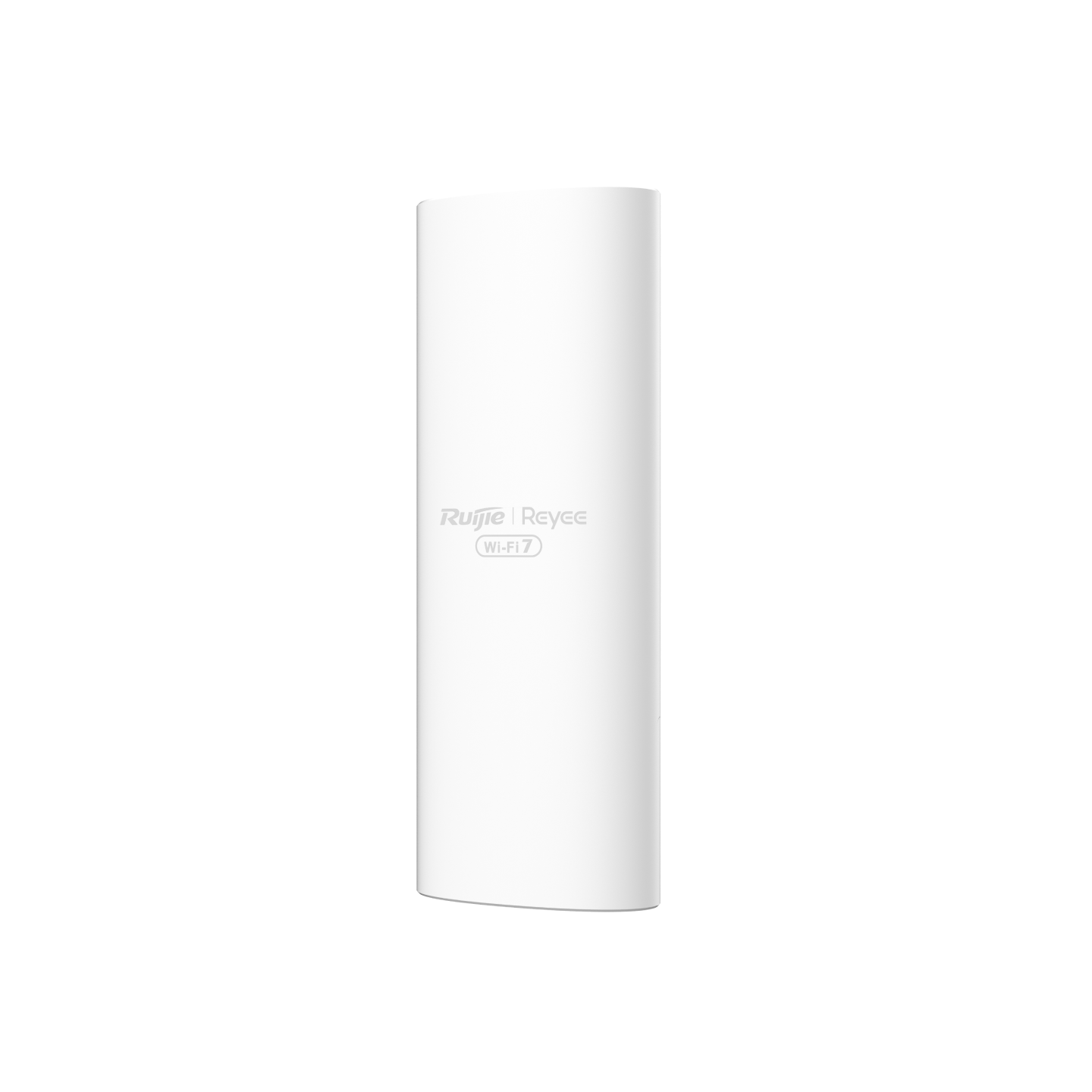

RG-RAP72Pro-OD, BE5040 Wi-Fi 7 Indoor/Outdoor Versatile Access Point

Hotel, Office, etc.

The Reyee RG-RAP72Pro-OD is a Wi-Fi 7 indoor/outdoor access point engineered for hotels, offices, commercial spaces, and residential outdoor areas requiring fast, reliable, and large-area wireless coverage. With BE5040 Wi-Fi 7 performance and dual-band MU-MIMO, it delivers exceptional speed and stability even in high user-density environments.

Designed with an IP65 weatherproof rating, it performs reliably in rain, heat, humidity, and dust, making it ideal for patios, corridors, rooftops, pool areas, shop fronts, and outdoor dining spaces. Integrated antenna design ensures strong, evenly distributed coverage.

With Reyee Mesh, AI roaming, and cloud management, network deployment and expansion are seamless and centralized across multiple buildings or floors.

View full technical details here.

Highlight Features

• AI-Powered Wi-Fi 7 Versatile Outdoor/Indoor Mesh AP
• Wall or Pole Mounting to Fit in Any Location
• IP65 Weatherproof Rating, Delivering Consistent Protection and Signal Stability
• Build-in Antennas for Coverage Where Needed
• Tailored for Retail Businesses with Reyee Mesh, Standalone Portal, and AI Roaming Features

Key Specifications

Wi-Fi Performance

• Dual-radio design with 5 spatial streams

• Maximum wireless speed: 5011 Mbps

• 2.4 GHz: 2 × 2 MU-MIMO (up to 688 Mbps)

• 5 GHz: 3 × 3 MU-MIMO (up to 4323 Mbps)

• Client Capacity:

  • 64 users (2.4 GHz)

  • 511 users (5 GHz)

  • 511 total when both bands are active

Antenna System

• 5 GHz: 1 built-in omnidirectional antenna

• Integrated 2.4 GHz + 5 GHz: 2 built-in omnidirectional antennas

Ports

• 1 × 10/100/1000/2500BASE-T Ethernet port

Power & Consumption

• Powered via PoE / PoE+

• No local DC power input

• Maximum power consumption: 21 W

• PoE budget: Not applicable

Physical Design

• Dimensions: 90 × 46 × 239 mm

• Weight: ≤ 0.7 kg (without packaging)

• Color: White

• Mounting: Wall or Pole installation

Environment

• Operating temperature: –30°C to +65°C (–22°F to +149°F)

• IP rating: IP65 (fully weather-resistant for outdoor use)

Management

• Cloud-managed via Ruijie Cloud / App

• Supports management of up to 300 devices
