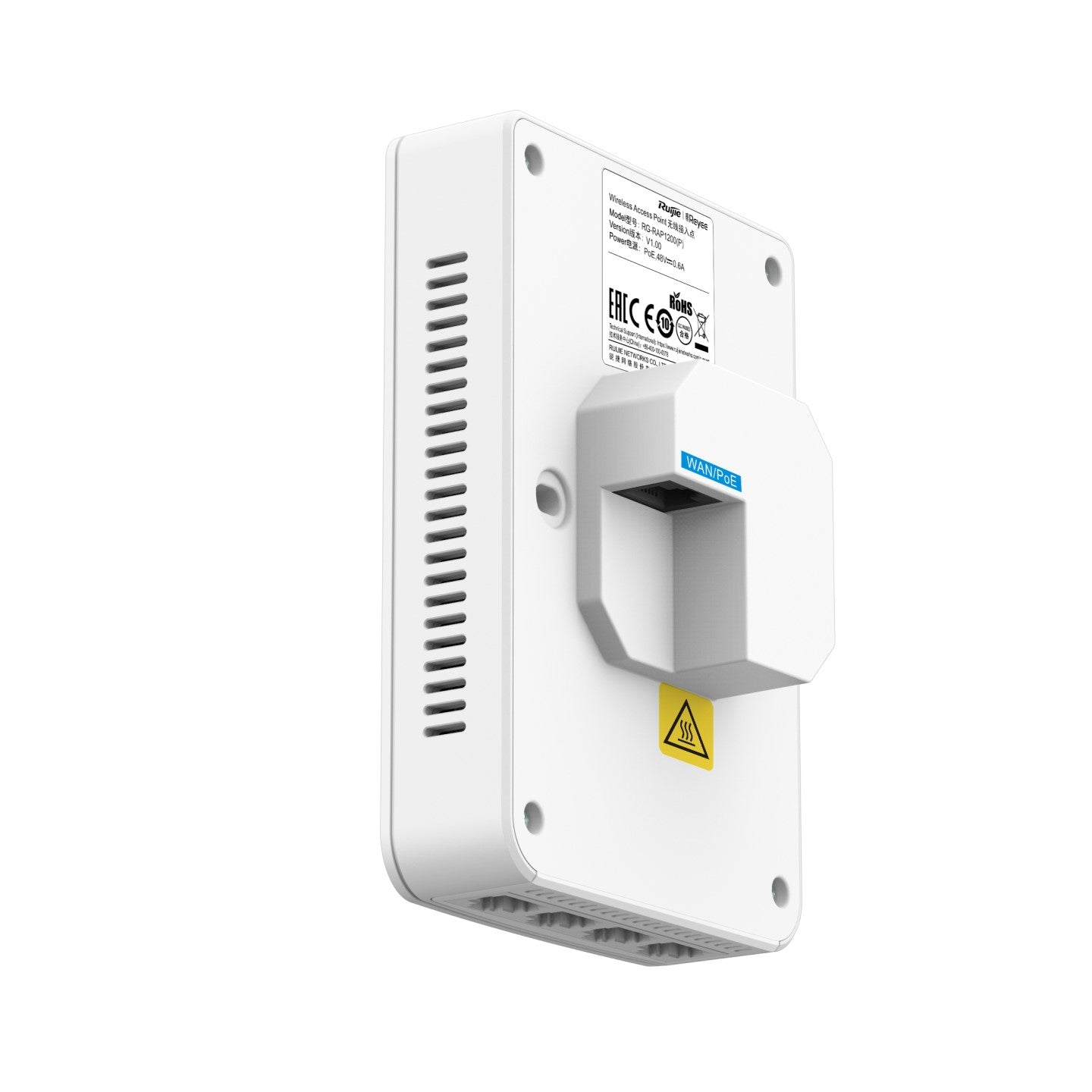

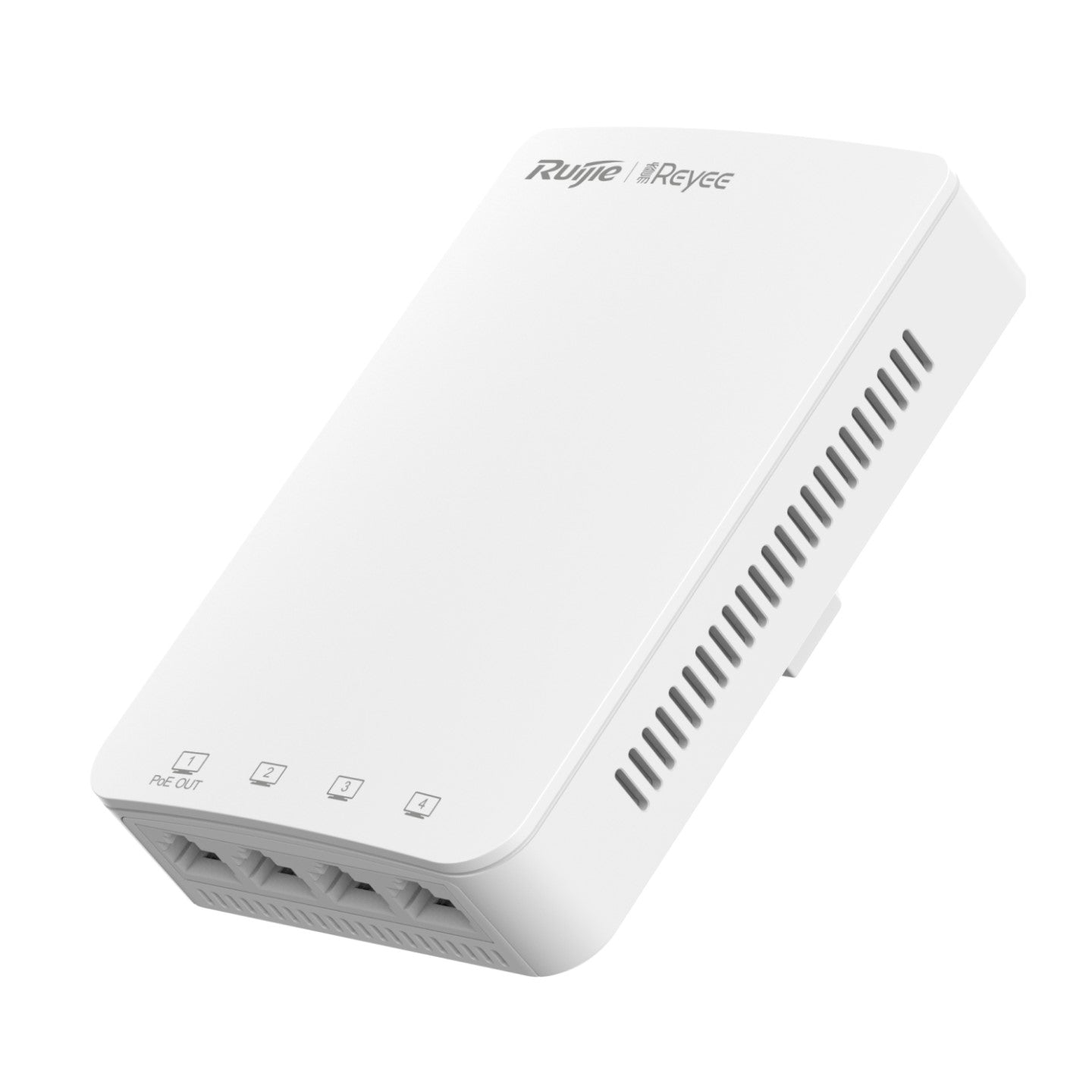

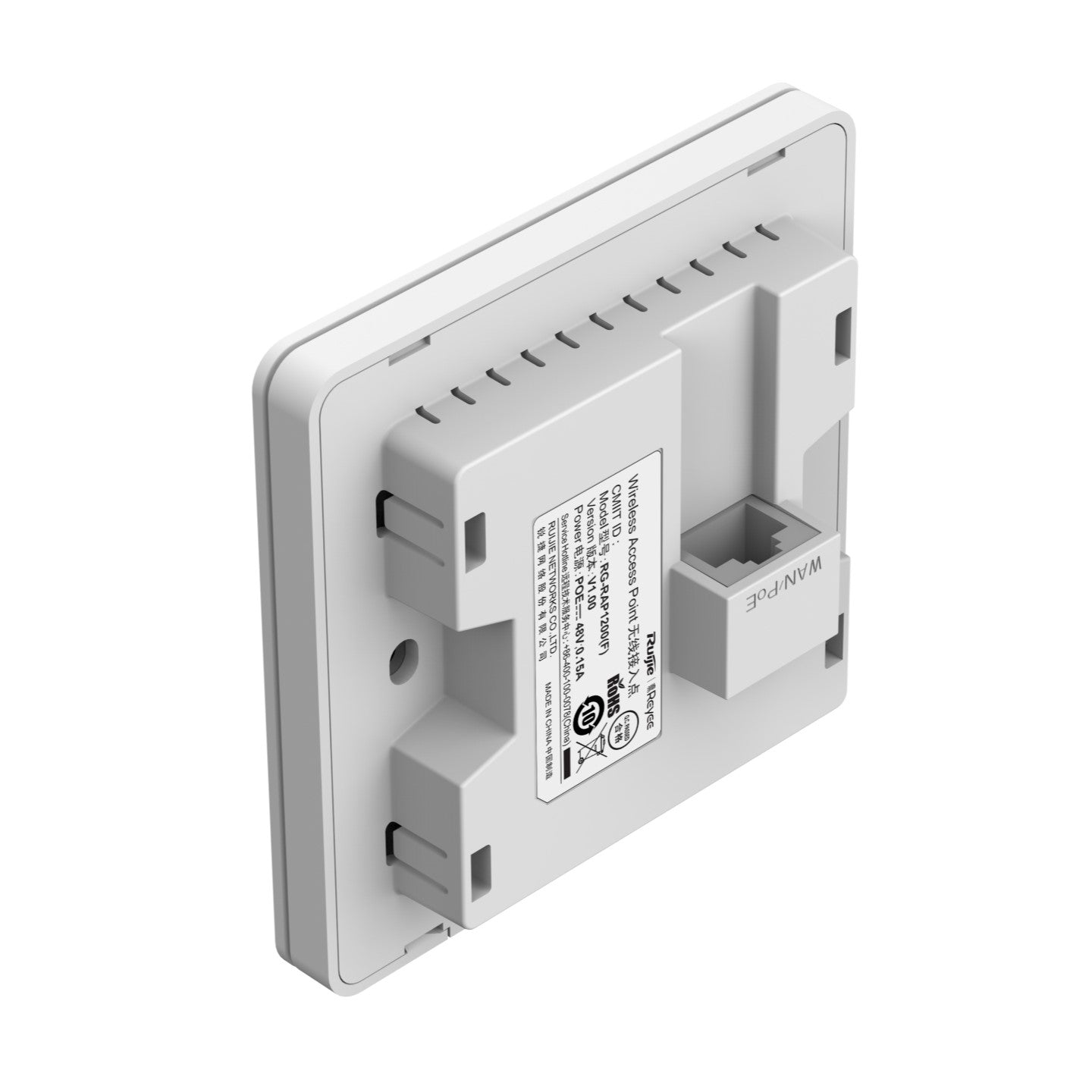

RG-RAP1200(P), Reyee Wi-Fi 5 1267Mbps Wall-mounted Access Point

RG-RAP1200(P), Reyee Wi-Fi 5 1267Mbps Wall-mounted Access Point

Rs 5,815.00
Rs 5,815.00
Sale Sold out
Tax included.

Type : In-wall Access Point

SKU : RG-RAP1200(P)

Collections : Reyee Wi-Fi Solutions,

Availability : In Stock

Shipping & Returns

Delivery Available on this product.
We deliver all Mauritius domestic orders within 2-5 business days!

View full details

RG-RAP1200(F), Reyee Wi-Fi 5 1267Mbps Wall-mounted Access Point

Hotel, Home, Office, etc

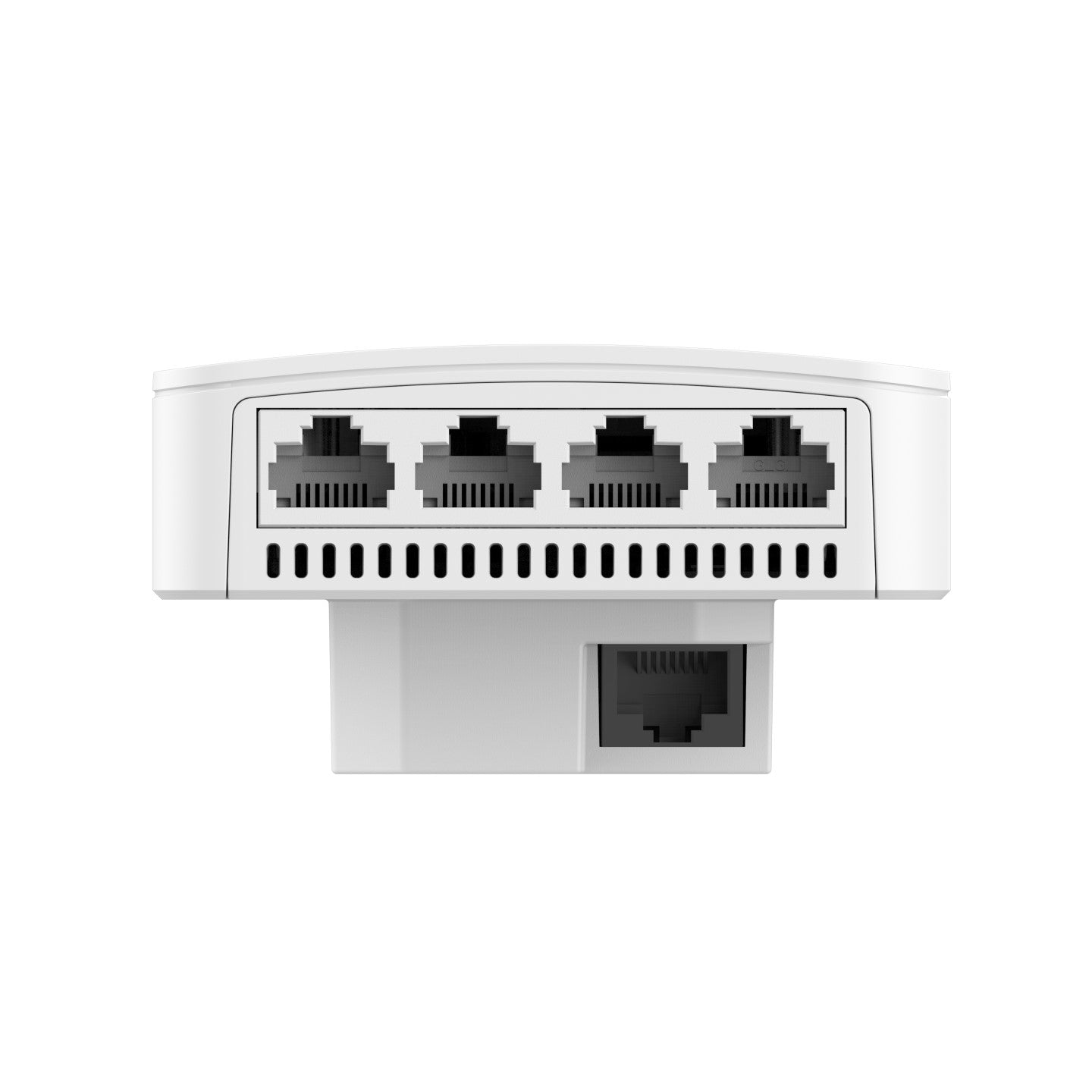

AC1300 Dual Band gigabit wall plate AP, 4 front LAN ports, including 1 standard 802.3af PoE out port, built-in antennas, 1 gigabit uplink port, dual- band 2.4GHz/5GHz, 802.11a/b/g/n/ac Wave1/Wave2, up to 1267Mbps access rate per AP; support AP/ routing mode, Layer 3 roaming, Support



Highlight Features

  • Dual-radio performance, full gigabit wall-mounted access point
  • Better experience with MU-MIMO under 802.11ac Wave2
  • Multi-service support with full gigabit ports
  • Easy installation and full compatibility
  • Optimization in one-click mode, achieving better Wi-Fi experience
  • Easy Wi-Fi network construction within 3 minutes





Easy Wi-Fi Network Construction Within 3 Minutes

With self-organizing network (SON) technology, a Wi-Fi network can be easily built through Ruijie Reyee App.





Cloud, Make Your Business Easy

  • Self-organized Network (SON)
  • Centralized Network Management
  • Scenario-based Configuration
  • Cloud Portal Authentication
  • Remote Monitoring and Maintenance




Product Information
Product Type
Product Type
  • Wall AP
Hardware Specifications
Wi-Fi Radio
Radio design
  • Dual-radio
    4 spatial streams
    ● 2.4 GHz: 2 x 2, MIMO
    ● 5 GHz: 2 x 2, MIMO
Maximum wireless data rate
  • 1266 Mbps
6 GHz wireless data rate
  • No
5 GHz wireless data rate
  • 866 Mbps
2.4 GHz wireless data rate
  • 400 Mbps
Antenna
Antenna
  • 2.4 GHz: 2 built-in omnidirectional antennas
    5 GHz: 2 built-in omnidirectional antennas
Dimensions and Weight
Product dimensions (W x D x H)
  • 86 mm x 50 mm x 126 mm (3.39 in. x 1.97 in. x 4.96 in.)
Color
  • White
Weight
  • ≤ 0.24 kg (0.53 lbs.) (without packaging materials)
Port Specifications
Number of 10/100/1000BASE-T ports
  • 5
Power Supply and Consumption
Power supply
  • PoE/PoE+
Local power supply
  • No
Dimensions of the DC connector
  • No
PoE budget
  • 4 W (when power source is IEEE 802.3af-compliant)
    15.4 W (when power source is IEEE 802.3at-compliant)
Maximum power consumption
  • 8 W (excluding PoE output)
Environment and Reliability
Operating temperature
  • 0°C to 40°C (32°F to 104°F)
Mounting options
  • Junction box
IP rating
  • IP41
Software Specifications
WLAN
Maximum number of associated wireless clients
  • 64 (2.4 GHz)
    110 (5 GHz)
    110 (2.4 GHz and 5 GHz enabled)
Maximum number of devices that can be managed
  • 300
