RG-EST100-E, 2.4GHz Dual-stream 500m Wireless Bridge

RG-EST100-E, 2.4GHz Dual-stream 500m Wireless Bridge

Rs 2,935.00
Rs 2,935.00
Sale Sold out
Tax included.

Type : Wireless Bridge

SKU : RG-EST100-E

Collections : Reyee Wi-Fi Solutions,

Availability : In Stock

Shipping & Returns

Delivery Available on this product.
We deliver all Mauritius domestic orders within 2-5 business days!

View full details

RG-EST100-E, 2.4GHz Dual-stream 500m Wireless Bridge

Elevator, Campus, Building, etc.

View full technical details here.



The Reyee RG-EST100-E is a compact 2.4GHz wireless bridge designed for short to medium-distance network extension up to 500 meters. It is ideal for elevators, inter-building links, warehouses, campuses, small compounds, and CCTV installations where running network cables is difficult or costly.

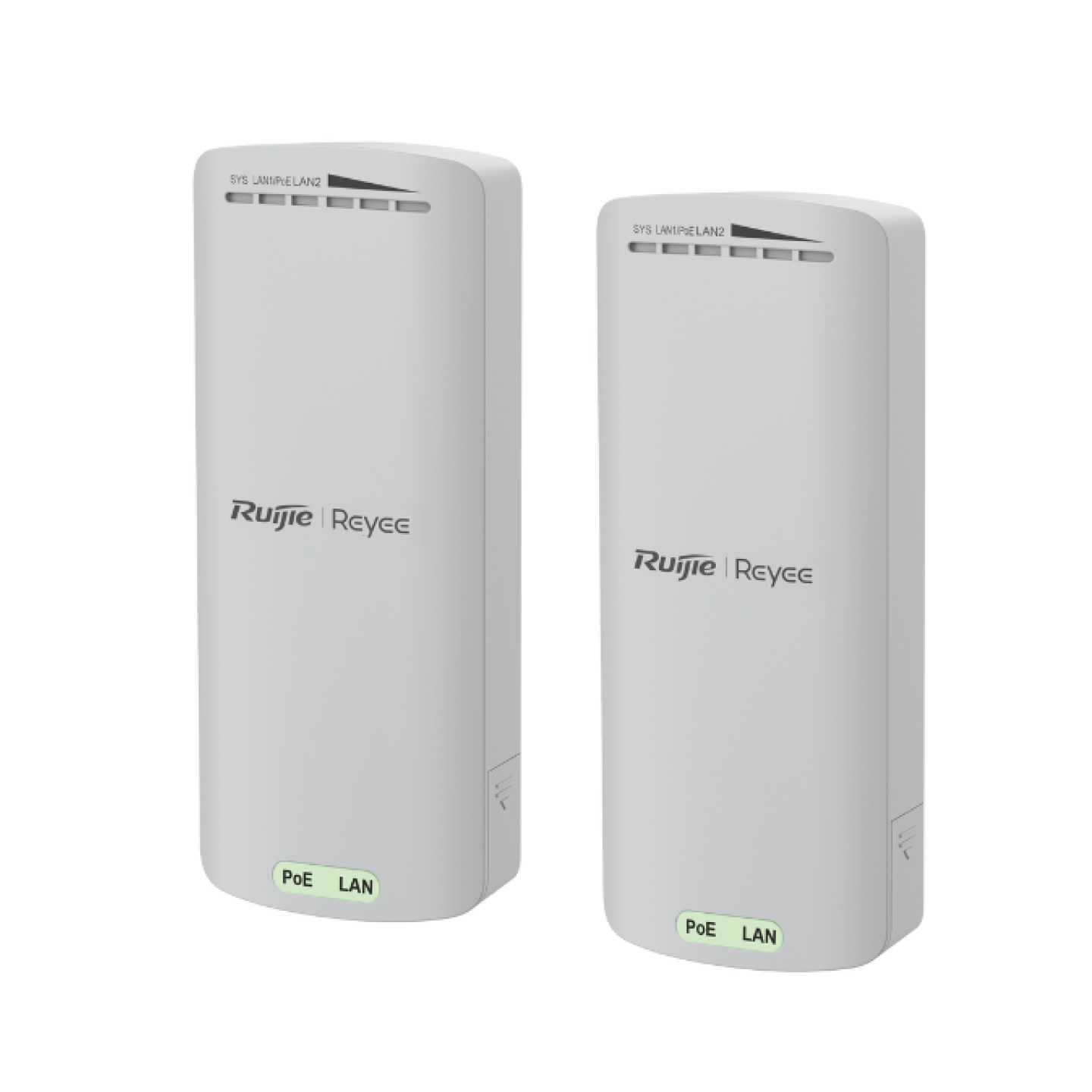

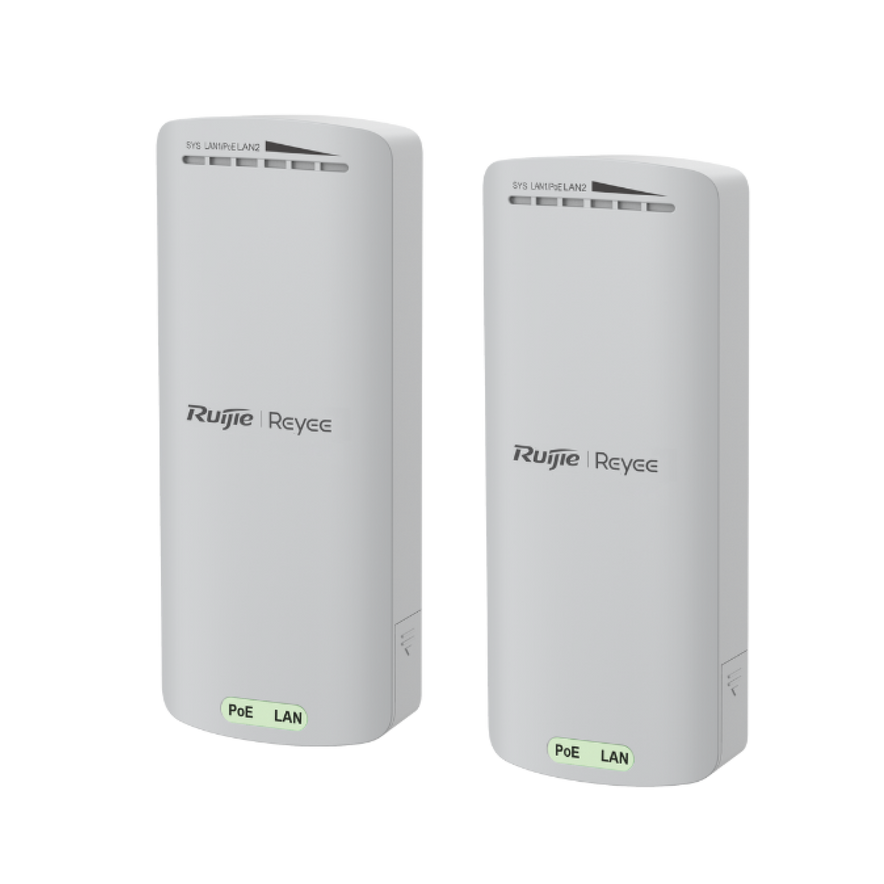

This model is pre-paired, meaning the two bridge units automatically connect to each other out-of-the-box — no alignment or configuration required. It provides stable wireless transmission suitable for IP cameras, access control systems, and network linking between floors or nearby buildings.

With its IP55 weatherproof casing and reliable operation from –30°C to +60°C, the RG-EST100-E is built for both indoor and light outdoor environments, including elevator shafts and exposed building walls.

Key Features

  • Up to 500m Wireless Transmission: Ideal for linking nearby buildings and CCTV points.

  • Plug-and-Play Pairing: Works immediately — no technical setup required.

  • Supports CCTV Backhaul: Handles up to 10 × 3MP cameras at 100m or 5 × 3MP cameras at 500m.

  • Weather & Dust Protection: IP55 rated for outdoor and elevator shaft conditions.

  • Cloud Monitoring: Remote status monitoring via Ruijie Cloud / Reyee App.

  • Simple Maintenance: Visual connection quality information for quick troubleshooting.

Highlight Features

  • RG-EST100-E can easily transmit data from 500m away in real time
  • Factory-free configuration, without complex alignment
  • IP55 Weatherproof, -30℃~60℃ guarantee stable operating at outdoor or elevator environment
  • Support maximum 10 * 3MP cameras loading at 100m, 5 * 3MP cameras loading at 500m
  • Visually Intuitive statistics monitoring on Ruijie cloud, easy maintenance at remotely





Key Specifications

Wi-Fi Performance

  • Single-radio design with 2 spatial streams

  • 2.4 GHz: 2 × 2 MIMO

  • Channel Width Support (2.4 GHz): Auto / 20 / 40 MHz

Power & Connectivity

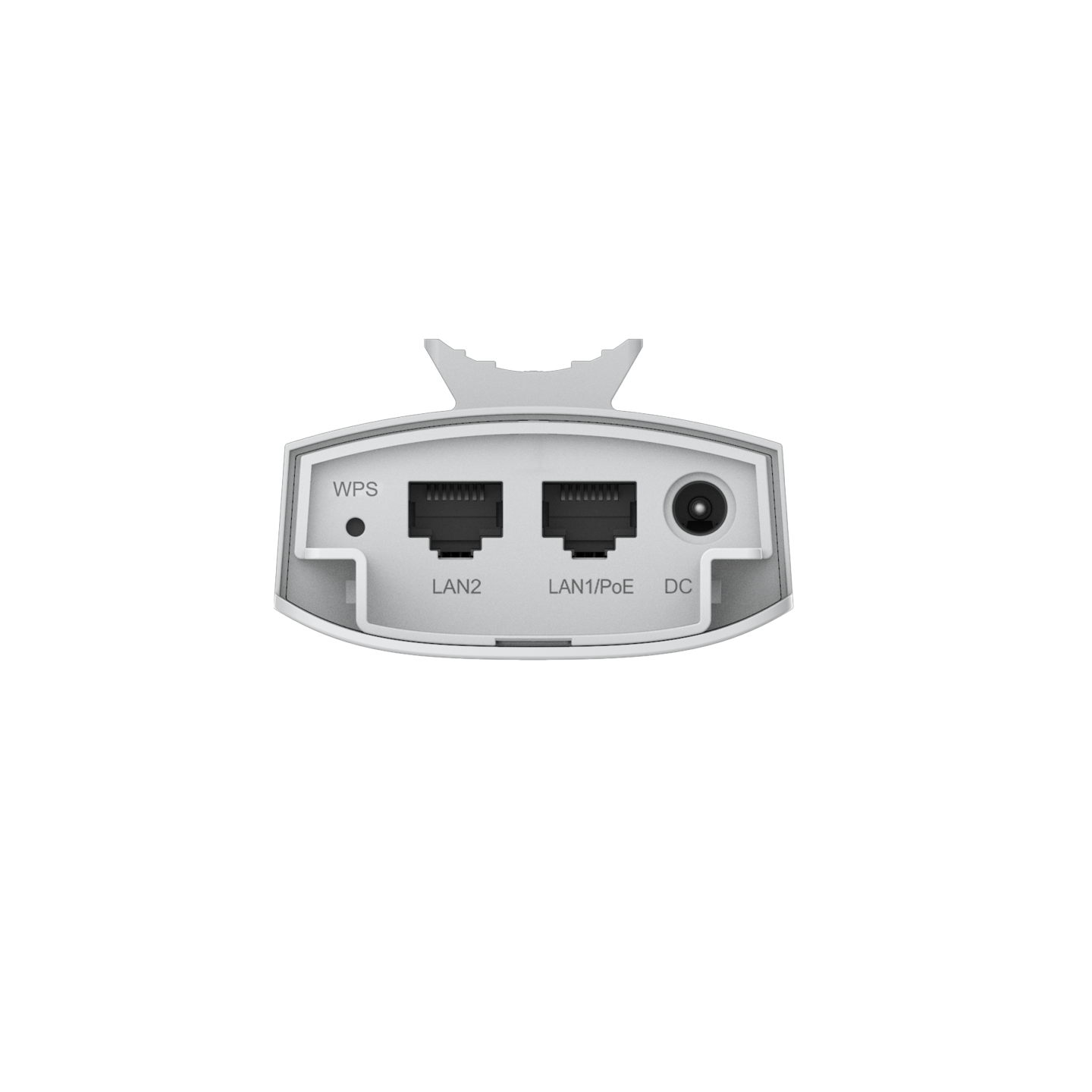

  • 1 × PoE-In port (Power over Ethernet input)

Software & Features

  • Bridge speed test: Supported

  • Self-Organizing Network (SON): Supported

  • Restart devices remotely via Ruijie Reyee App: Supported

  • AI Heatmap: Not supported

  • SNMP (v1 / v2c / v3): Not supported
