RG-RAP73HD, Reyee Wi-Fi 7 Tri-Radio BE19000 Ceiling Access Point

Hotel, Office, etc.

View technical details here.

Highlight Features

• Tri-radio performance, 6G/320MHz brings extre-high wireless rate
• Better Streaming experience with Wi-Fi 7 exclusive feature MLO
• Increase the high-density access capacity up to 1024
• 4K-QAM, deliever data packs better for higher speeds
• Capable of Enterprise Switch to build PRO Office Network

Reyee RG-RAP73HD is a high-performance Wi-Fi 7 tri-radio access point designed for modern hotels, offices, and enterprise indoor networks that require ultra-fast speed and stable multi-user connectivity. With Wi-Fi 7’s 6GHz support, 320MHz bandwidth, and MLO (Multi-Link Operation), it delivers extremely smooth streaming, conferencing, and seamless roaming across large indoor spaces.

Buy online on electrical.mu in Mauritius.

Key Specifications

Wi-Fi Performance

• Tri-radio design with 12 spatial streams

• Maximum wireless throughput: 18668 Mbps

• Band Speeds:

  • 6 GHz: 4×4 MU-MIMO (up to 11528 Mbps)

  • 5 GHz: 4×4 MU-MIMO (up to 5764 Mbps)

  • 2.4 GHz: 4×4 MU-MIMO (up to 1376 Mbps)

• Client Capacity:

  • 512 users on each band individually

  • 1024 users total when all 3 bands are active

Antenna System

• 2.4 GHz: 5 built-in omnidirectional antennas

• 5 GHz: 4 built-in omnidirectional antennas

• 6 GHz: 5 built-in omnidirectional antennas

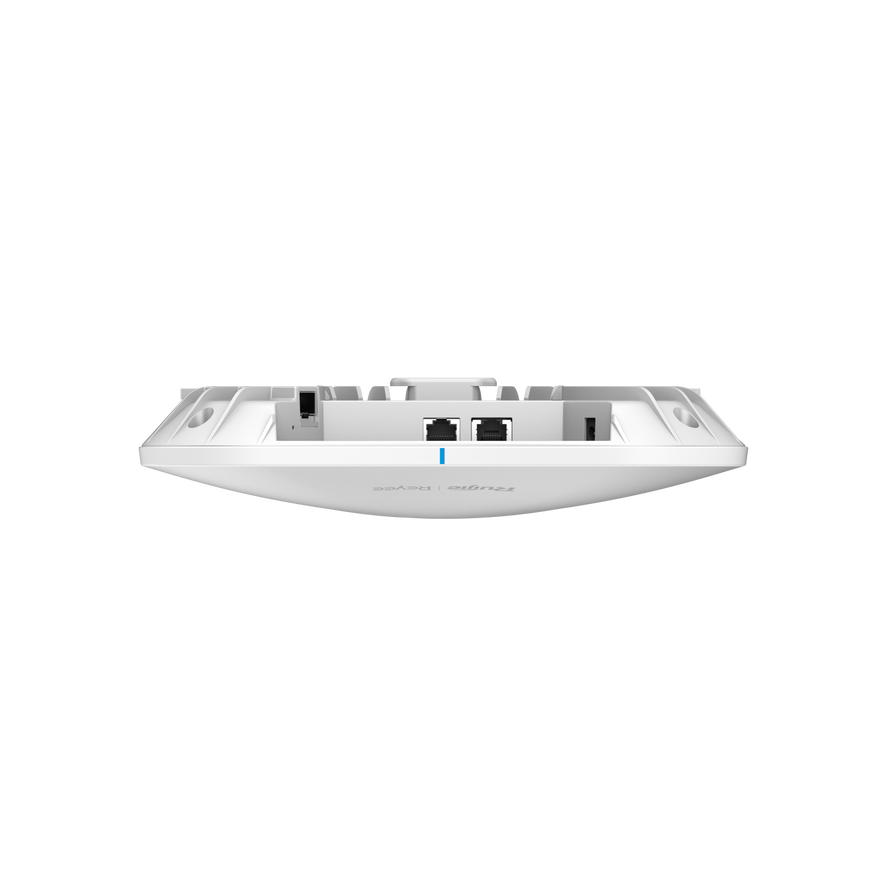

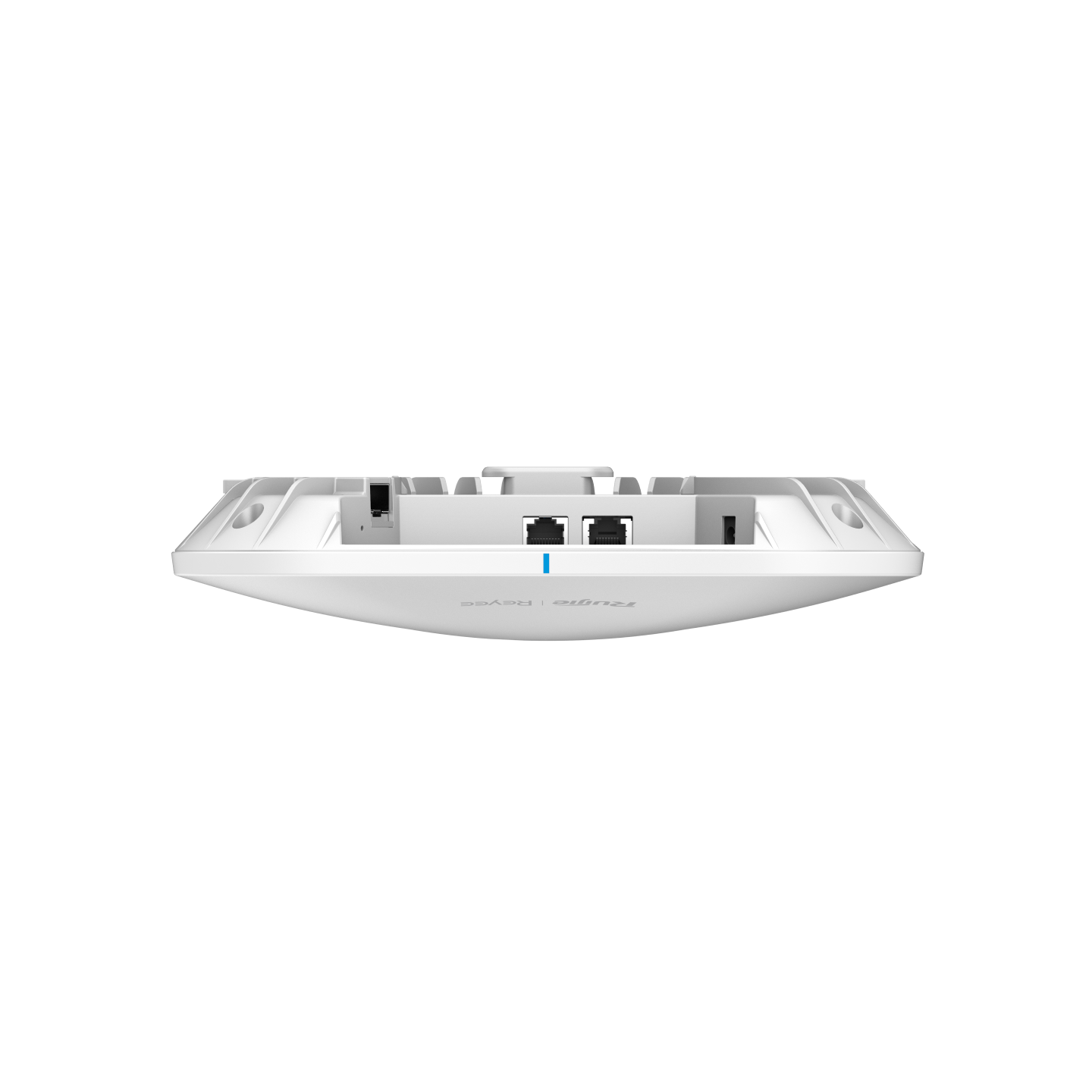

Ports

• 1 × 10/100/1000BASE-T Ethernet

• 1 × 100/1000/2.5G/5G/10GBASE-T Ethernet

• 1 × 10G SFP+ uplink

Power & Consumption

• Supports DC power adapter (48 V / 1.48 A)

• Supports PoE+ / PoE++

• DC power is prioritized if both are connected

• Maximum power consumption: 60 W

• PoE budget: N/A

Physical Design

• Dimensions: 258 × 258 × 59.5 mm

• Weight: ≤ 2.0 kg (without packaging)

• Color: White

• Mounting: Ceiling / Wall

Environment

• Operating temperature: 0°C to 40°C (32°F to 104°F)

• IP rating: IP41

Management

• Cloud-managed via Ruijie Cloud / App

• Supports management of up to 300 devices
