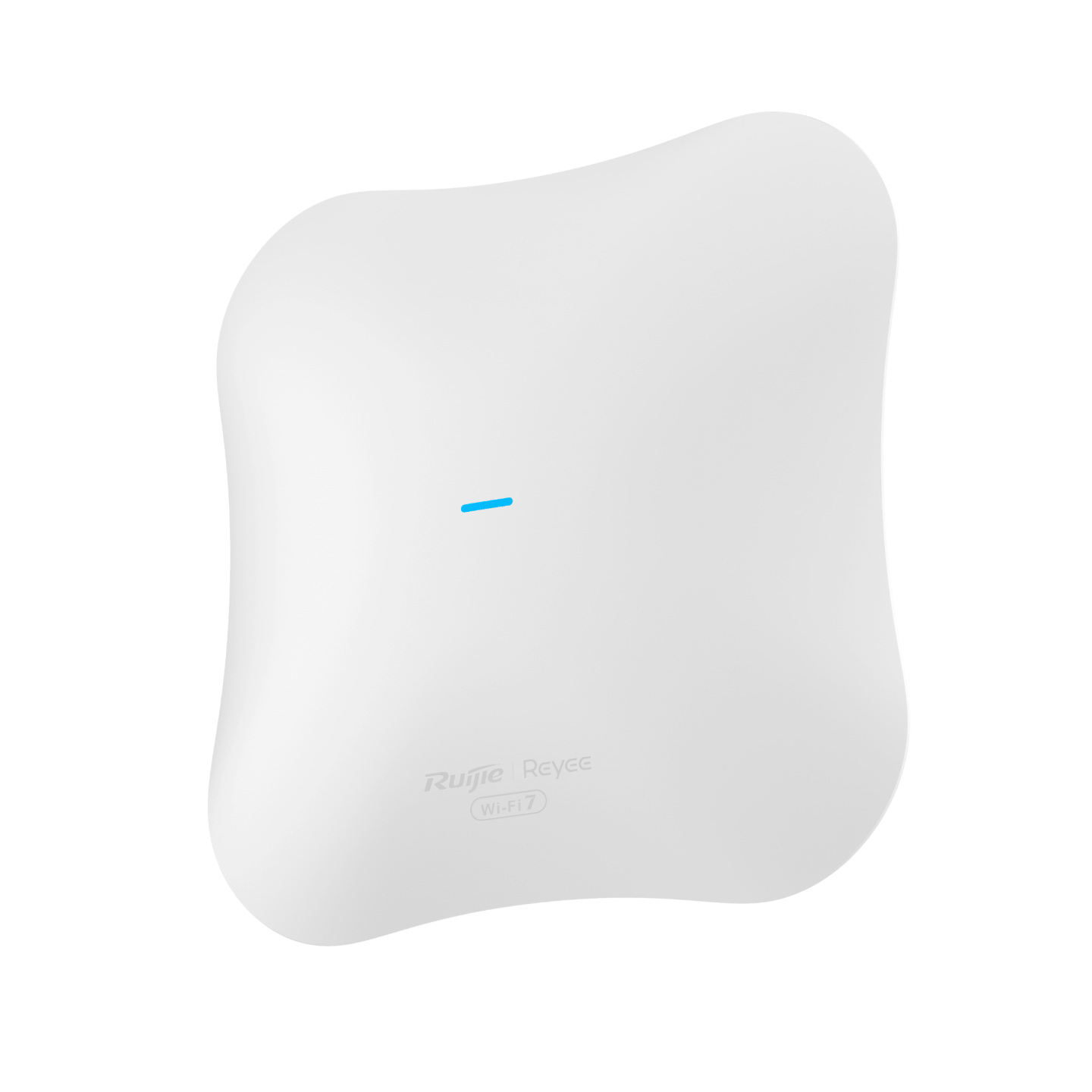

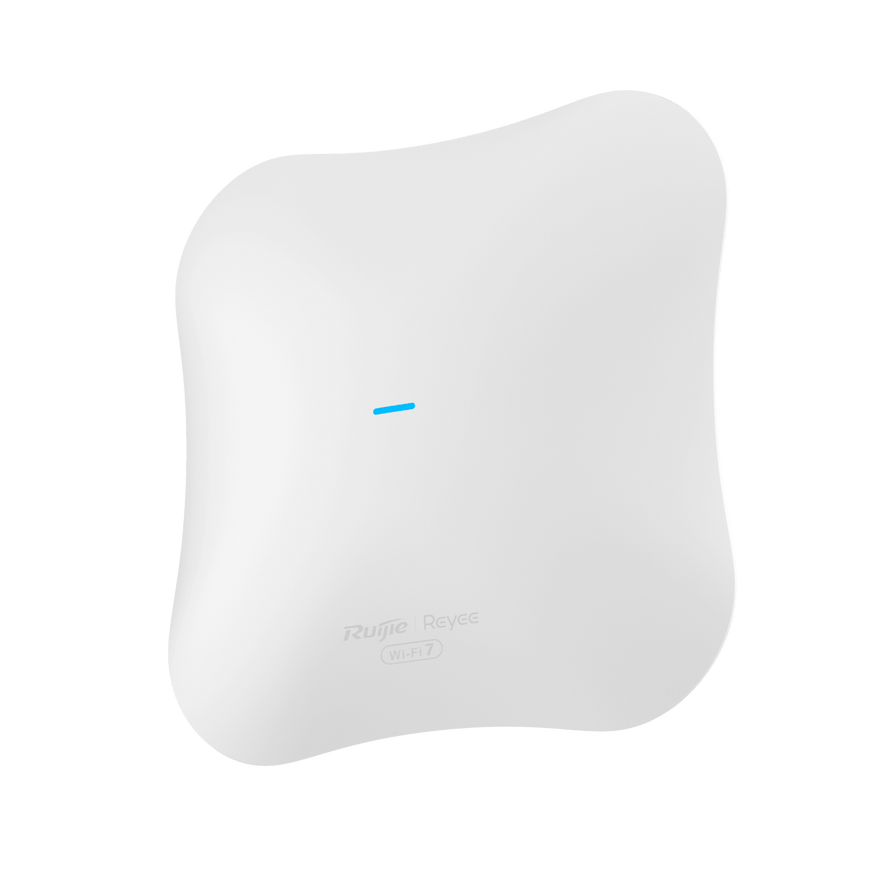

RG-RAP72Pro, Reyee Wi-Fi 7 BE5040 Dual-Band Ceiling Access Point

Hotel, Office, etc.

View technical details here.

The Reyee RG-RAP72Pro is a high-performance Wi-Fi 7 dual-band access point, built for hotels, offices, campuses, clinics, and enterprise indoor networks that require fast, stable, and high-density wireless connectivity. With next-generation BE5040 Wi-Fi 7 technology, it delivers ultra-smooth streaming, conferencing, cloud applications, and team collaboration across busy indoor environments.

Featuring MLO (Multi-Link Operation) and 4K-QAM, the RG-RAP72Pro provides significantly improved speed, reduced latency, and more efficient data transmission. It is simple to deploy on ceilings or walls and integrates seamlessly with Reyee Mesh and Ruijie Cloud for centralized network management across multiple floors or buildings.

Highlight Features

• Next-generation performance with Wi-Fi 7, delivering extra-high wireless speeds
• Superior streaming with Wi-Fi 7's exclusive MLO feature
• Compact design and easy installation
• Enhanced data transmission with 4K-QAM for faster speeds
• Ideal for integrating with enterprise switches to create a robust office network

Buy online on electrical.mu in Mauritius.

Key Specifications

Wi-Fi Performance

• Dual-radio design with 5 spatial streams

• Maximum wireless speed: 5011 Mbps

• 2.4 GHz: 2 × 2 MU-MIMO (up to 688 Mbps)

• 5 GHz: 3 × 3 MU-MIMO (up to 4323 Mbps)

• Client Capacity:

  • 64 users (2.4 GHz)

  • 511 users (5 GHz)

  • 511 total when both bands are active

Antenna System

• 2.4 GHz: 2 built-in omnidirectional antennas

• 5 GHz: 3 built-in omnidirectional antennas

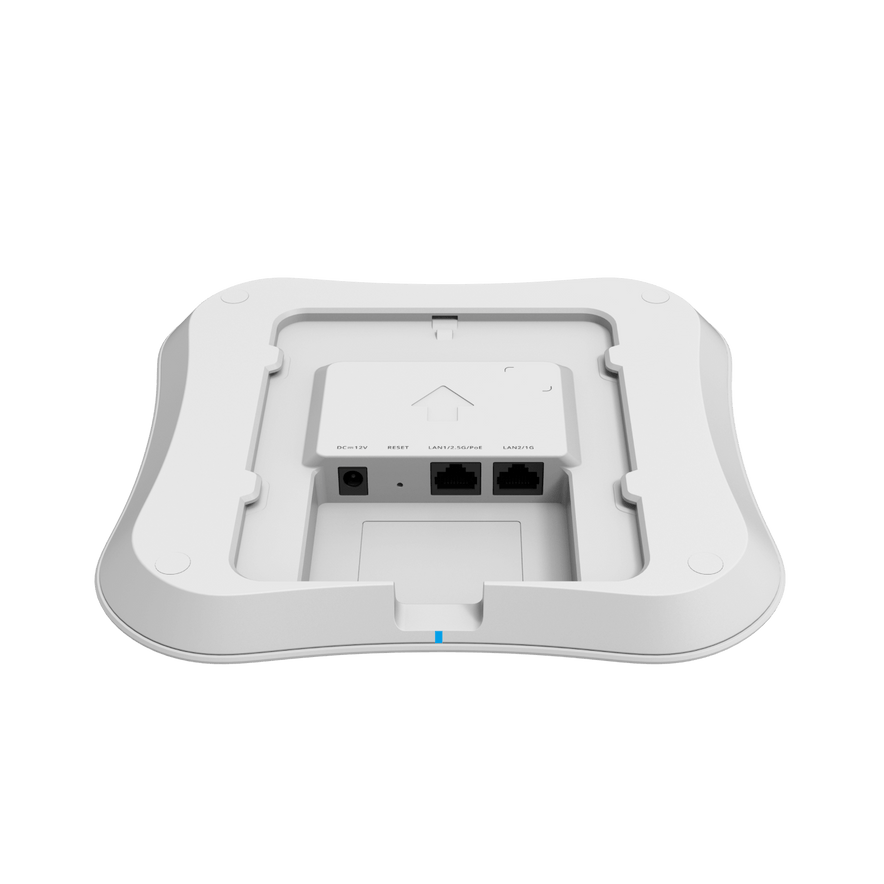

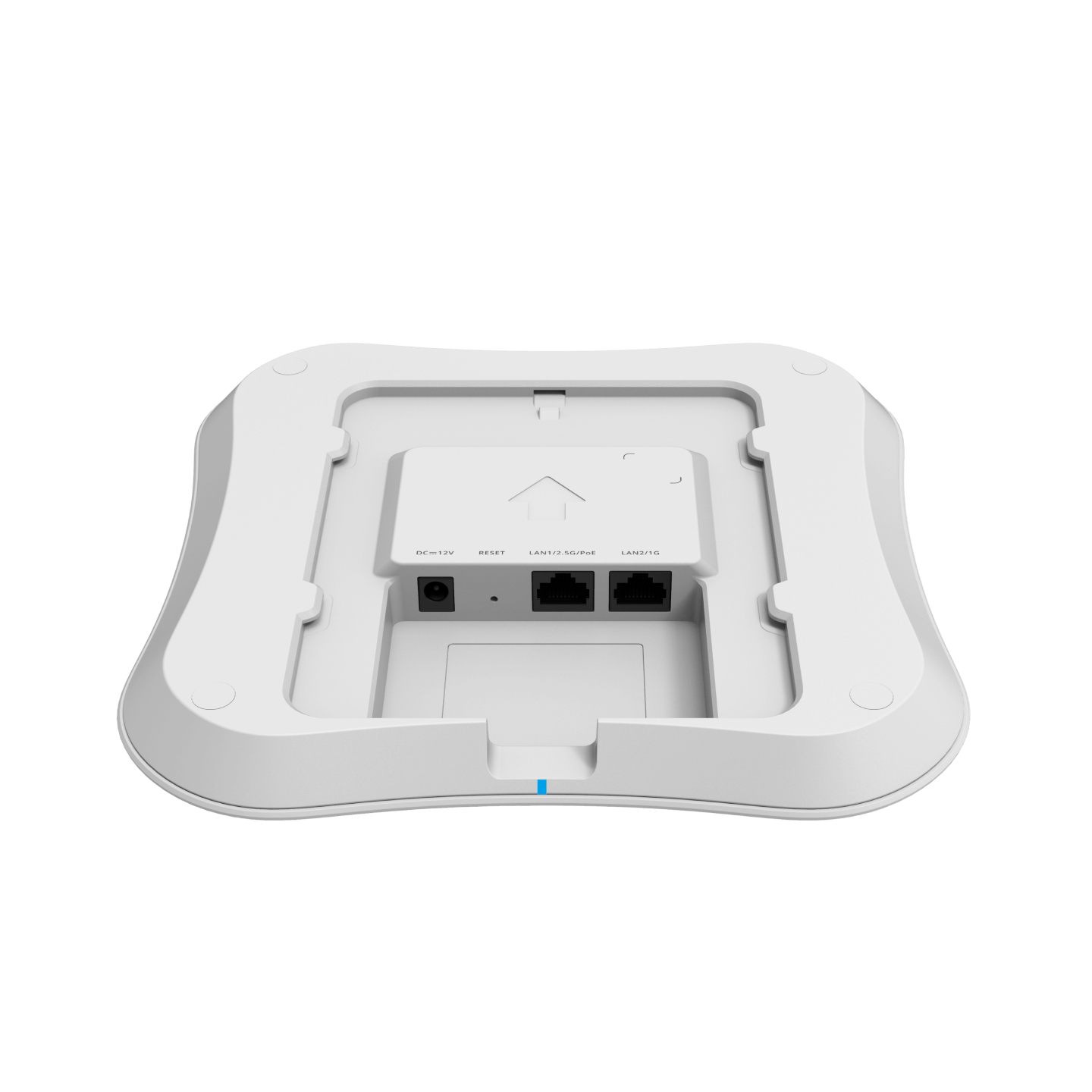

Ports

• 1 × 10/100/1000BASE-T Ethernet port

• 1 × 10/100/1000/2500BASE-T Ethernet port

Power & Consumption

• Supports DC power adapter (12V / 2.5A)

• Supports PoE / PoE+

• DC power is prioritized if both are connected

• Maximum power consumption: 30 W

• PoE budget: N/A

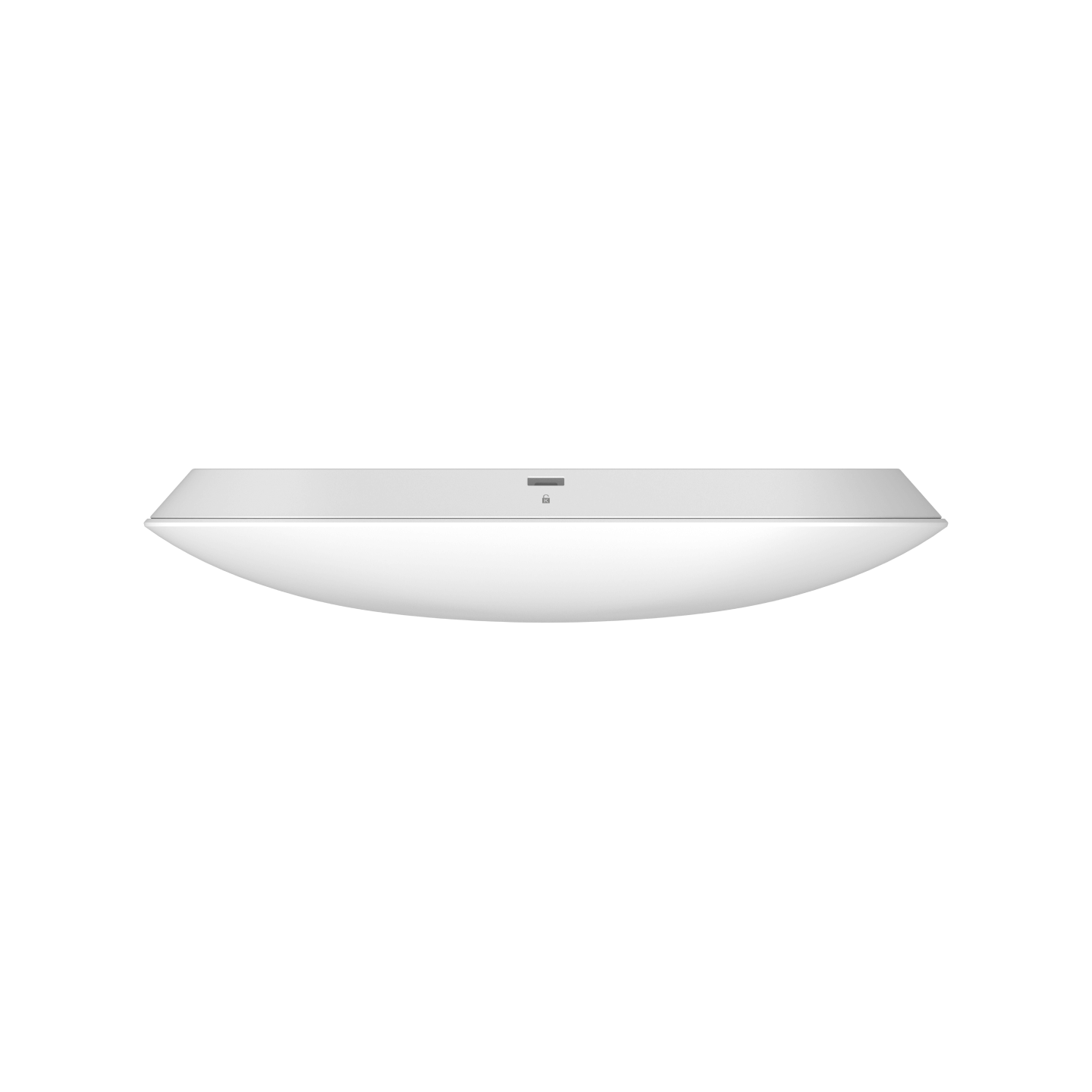

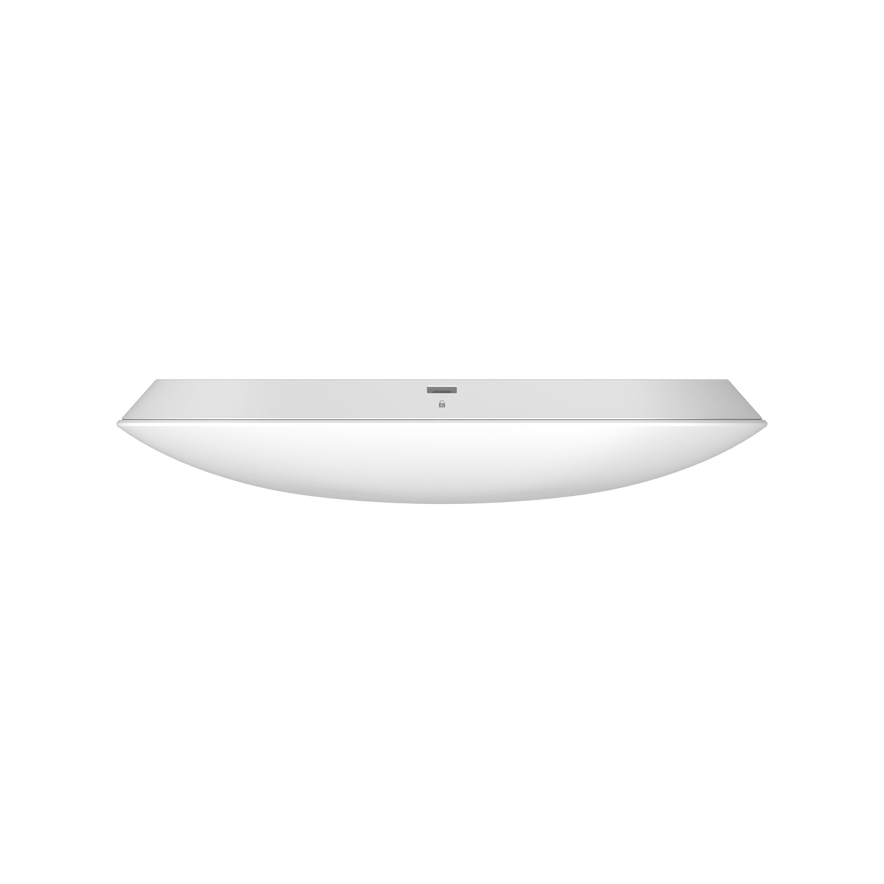

Physical Design

• Dimensions: 208 × 208 × 40 mm

• Weight: ≤ 0.75 kg (without packaging)

• Color: White

• Mounting: Ceiling / Wall

Environment

• Operating temperature: 0°C to 40°C (32°F to 104°F)

• IP rating: IP41

Management

• Cloud-managed via Ruijie Cloud / App

• Supports management of up to 300 devices
