Reyee RG-RAP2260(H) Wi-Fi 6 AX1800 Dual-band Wireless Access Point

Hospitality, Restaurant, Shopping Mall, Meeting Room, Railway Station, etc.

View full technical details here.

The Reyee RG-RAP2260(H) is an advanced Wi-Fi 6 AX1800 dual-band gigabit ceiling access point designed for business and commercial environments in Mauritius. With up to 1800 Mbps wireless throughput, uplink/downlink MU-MIMO, OFDMA, and beamforming, it delivers superior wireless experiences for dense environments. Capable of supporting up to 256 users and featuring high power 400 mW for extensive coverage, this access point ensures seamless roaming and reliable connections. Easily managed via Ruijie Cloud or mobile app, the RG-RAP2260(H) offers advanced security, automatic mesh networking, and robust performance ideal for offices, classrooms, and hospitality. Flexible installation via wall or ceiling mounting provides versatility for different venues.

Wi-Fi 6 (802.11ax) dual-band wireless access point

Uplink/Downlink MU-MIMO and OFDMA for robust connectivity

Supports up to 256 concurrent users

1800 Mbps combined wireless throughput

Seamless Roaming and Layer 3 roaming supported

High power up to 400 mW for wide coverage

4 spatial streams and beamforming technology

Buy online on electrical.mu in Mauritius.

Key Specifications

Wi-Fi Performance

• Dual-radio design with 8 spatial streams

• Maximum wireless speed: 5950 Mbps

• 2.4 GHz Band: 4×4 MU-MIMO (up to 1147 Mbps)

• 5 GHz Band: 4×4 MU-MIMO (up to 4803 Mbps)

• Client Capacity:

  • 64 users on 2.4 GHz

  • 512 users on 5 GHz

  • 512 total when both bands are active

Antenna System

• 2.4 GHz: 4 built-in omnidirectional antennas

• 5 GHz: 4 built-in omnidirectional antennas

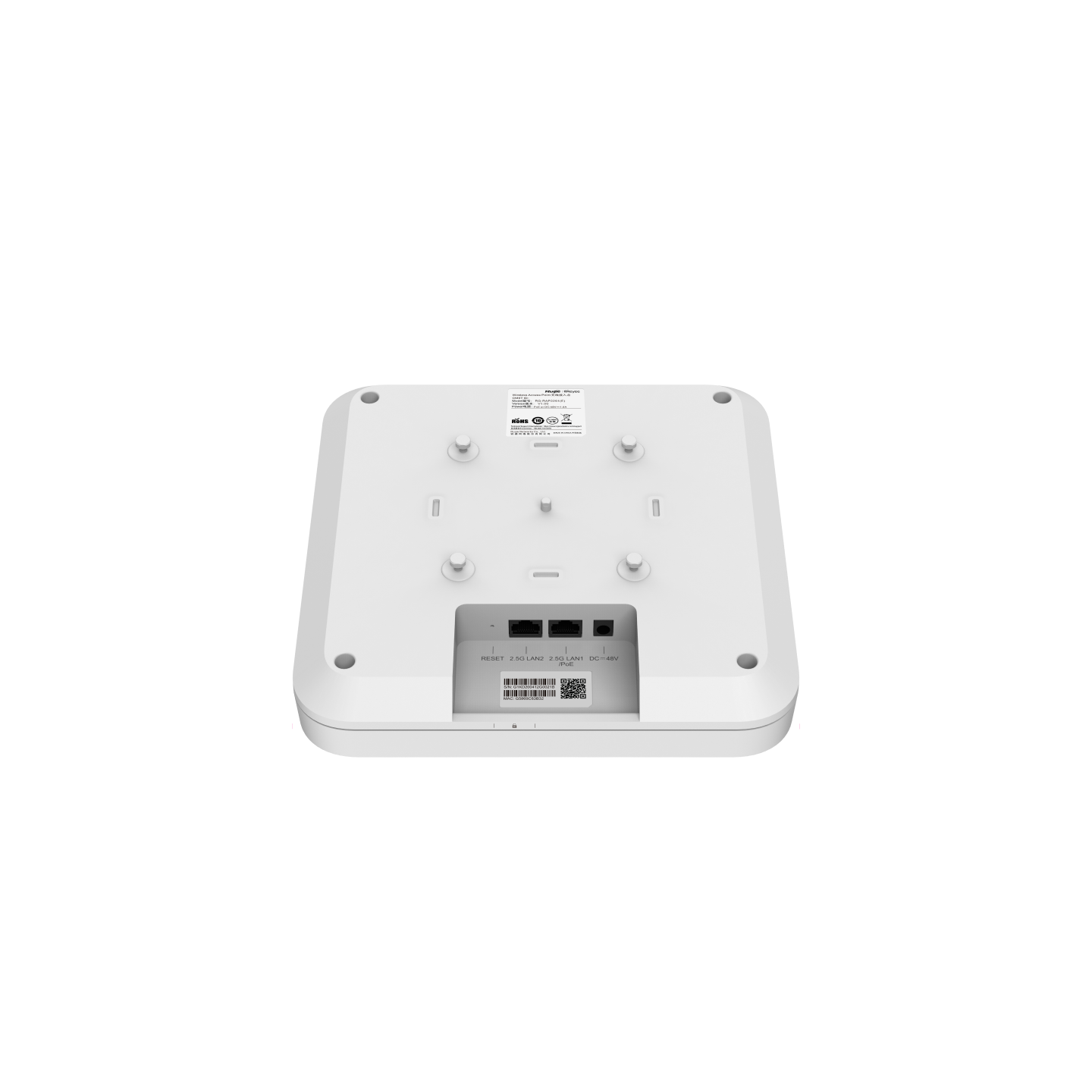

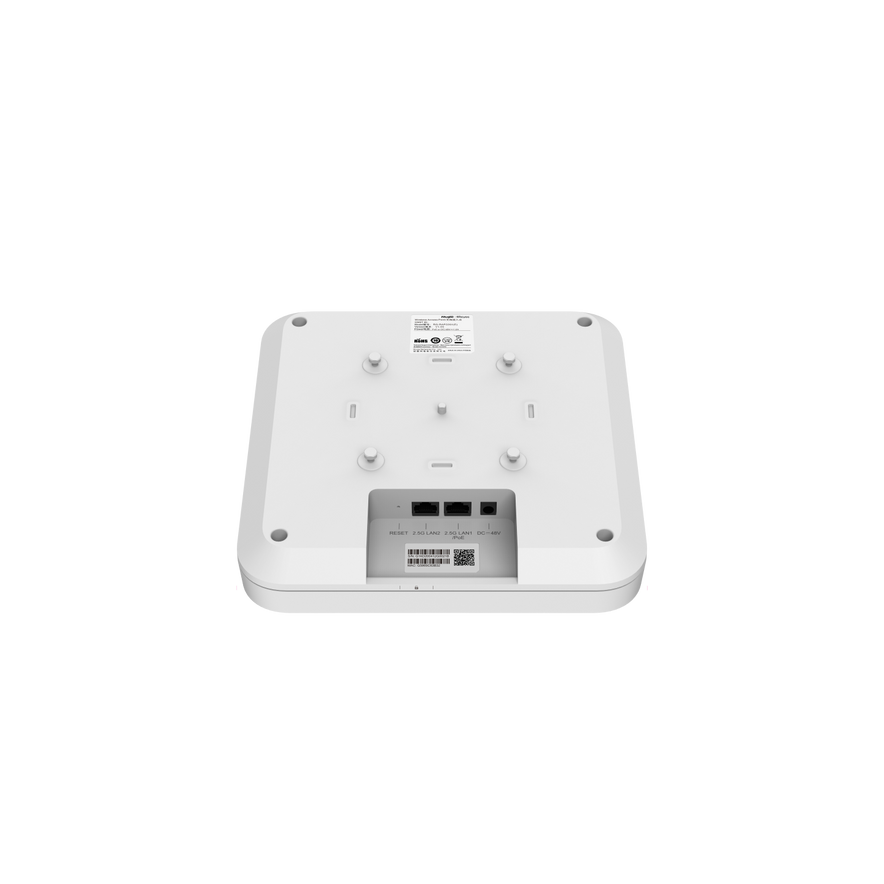

Ports

• 2 × 10/100/1000/2500BASE-T Ethernet ports

Power & Consumption

• Supports DC power adapter (48V / 1A)

• Supports PoE+ / PoE++

• When both DC & PoE are connected, DC power is prioritized

• Maximum power consumption: 40W

• PoE budget: Not applicable

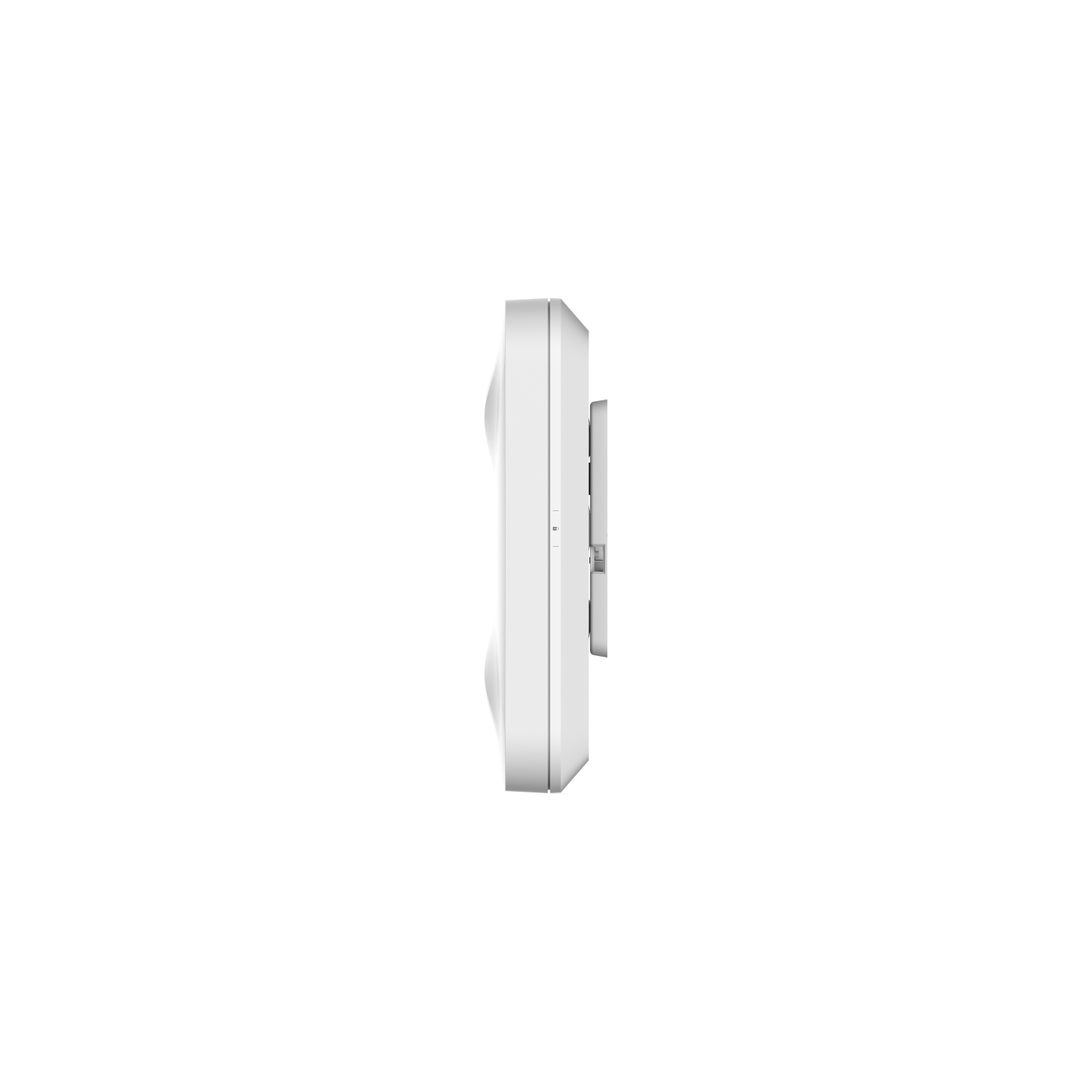

Physical Design

• Dimensions: 230 × 230 × 49.5 mm

• Weight: ≤ 1.36 kg (without packaging)

• Color: White

• Mounting: Ceiling or Wall

Environment

• Operating temperature: 0°C to 40°C (32°F to 104°F)

• IP rating: Not rated

Management

• Supports centralized cloud management

• Can manage up to 300 devices via Ruijie Cloud / App
