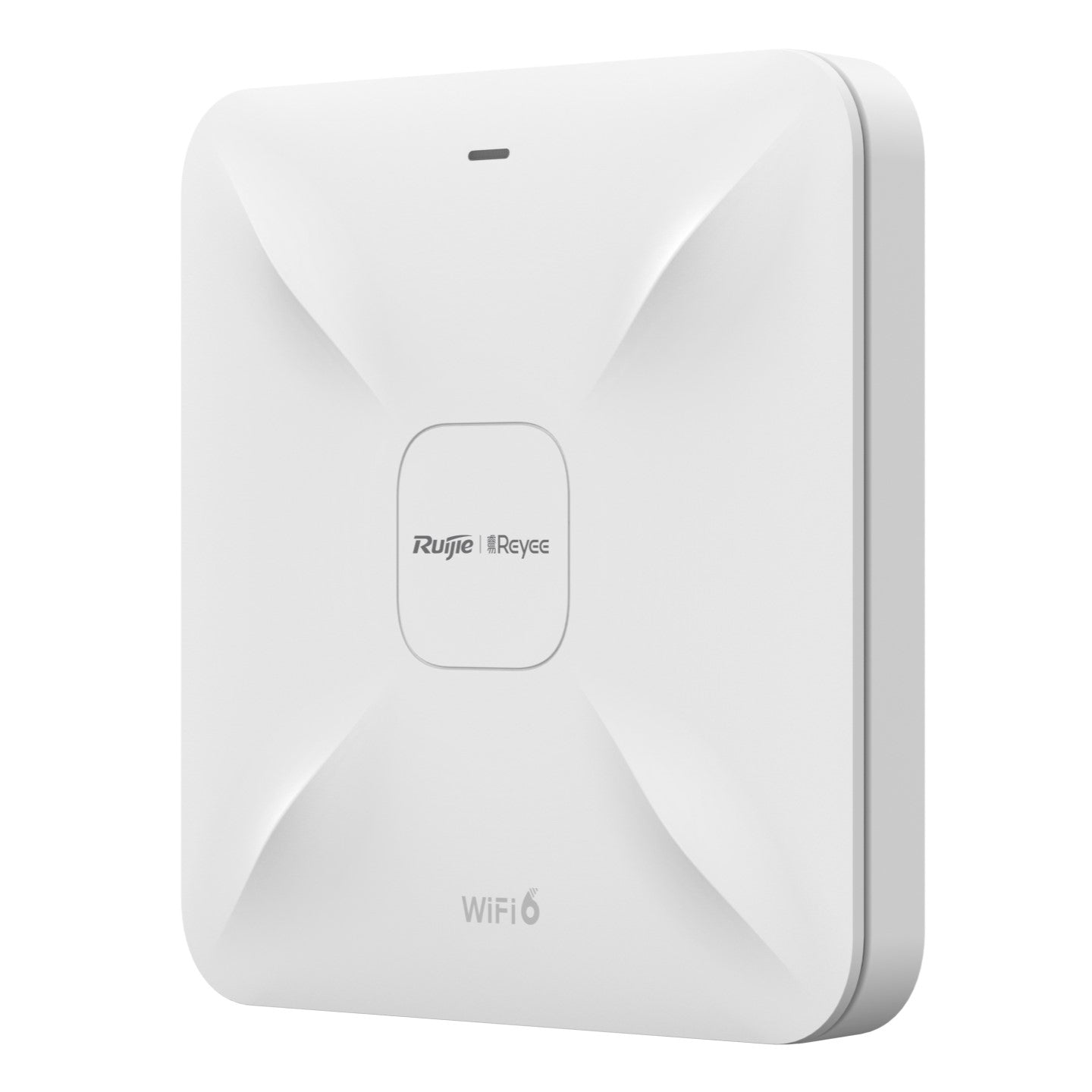

Reyee RG-RAP2260(E) AX3000 Wi-Fi 6 Dual-Band Gigabit Ceiling Access Point

Hospitality, Restaurant, Shopping Mall, Meeting Room, Railway Station, etc.

View full technical sheet here.

Highlight Features

• Build ultra-high performance network with 3202Mbps wireless throughput.
• Client connections over 500, provide higher practical performance for users as well.
• Boost Internet speed with 2.5Gbps uplink.
• Easily install extra AP with Reyee Mesh technology.
• Set up Wi-Fi 6 network in 3 minutes with Ruijie Cloud APP.

The Reyee RG-RAP2260(E) is a high-performance AX3000 Wi-Fi 6 dual-band gigabit ceiling access point designed for small and medium businesses in need of robust wireless connectivity. Offering maximum wireless speeds of up to 2976 Mbps, this AP supports up to 256 concurrent users, ensuring seamless network access in busy environments. It comes equipped with 802.3af/at PoE, simplifying deployment and saving on installation costs. With easy mesh networking and cloud-based management through the Reyee app, network expansion and maintenance are streamlined. Advanced features like rogue AP detection and seamless AP roaming provide improved security and connectivity, making it an ideal choice for modern offices, schools, and hospitality venues in Mauritius.

AX3000 dual-band Wi-Fi 6 with up to 2976 Mbps

Up to 256 concurrent users

802.3af/at PoE supported

Easy mesh networking

Rogue AP detection

Seamless roaming across APs

Cloud management via Reyee app

Buy online on electrical.mu in Mauritius.

Key Specifications

Wi-Fi & Performance

• Dual-radio design with 8 spatial streams

• 2.4 GHz: 4×4 MIMO (up to 800 Mbps)

• 5 GHz: 4×4 MU-MIMO (up to 2401 Mbps)

• Total wireless throughput: 3201 Mbps

• Supports up to 256 clients simultaneously (5 GHz)
  (256 total when both bands enabled, 64 on 2.4 GHz alone)

Antenna System

• 2.4 GHz: 4 built-in omnidirectional antennas

• 5 GHz: 4 built-in omnidirectional antennas

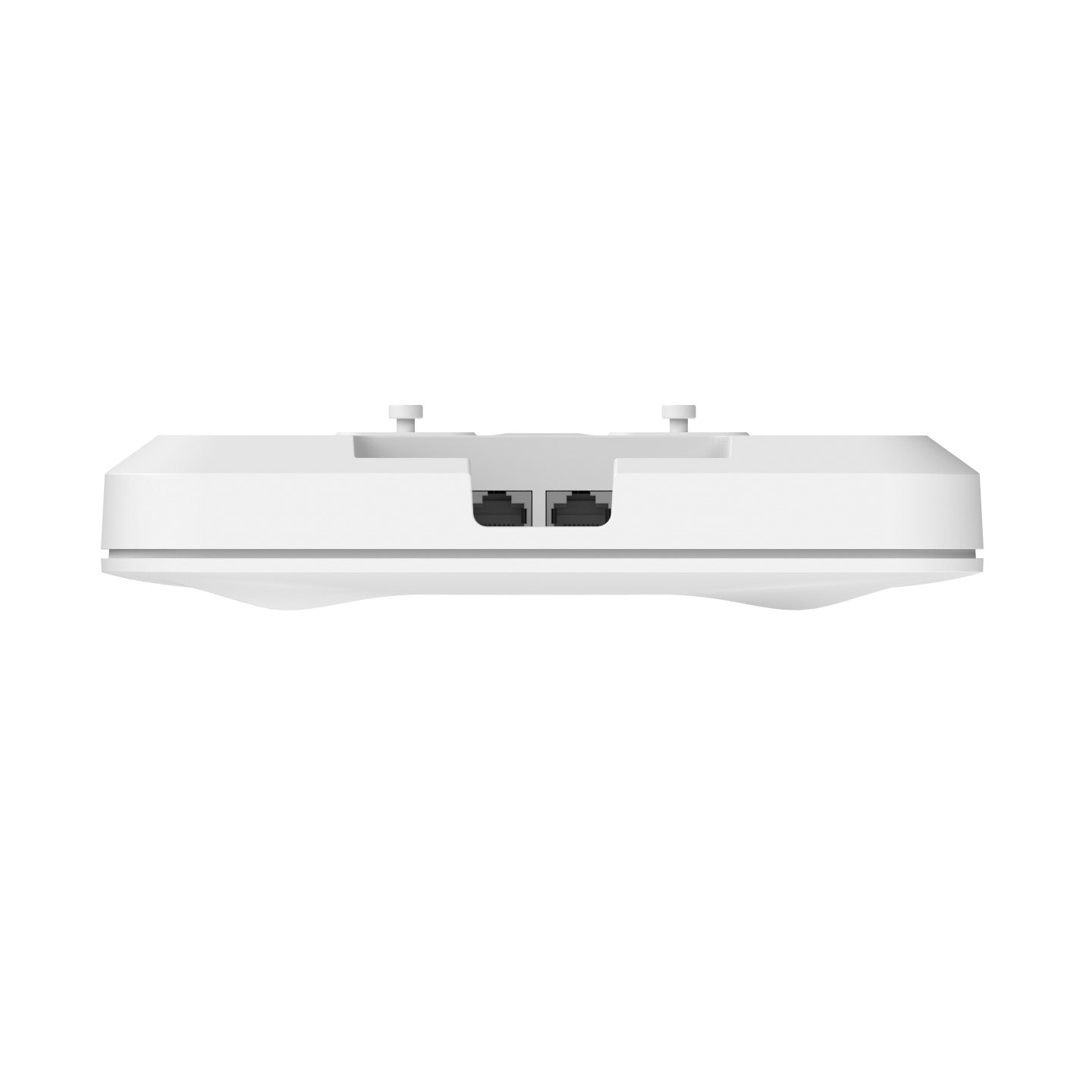

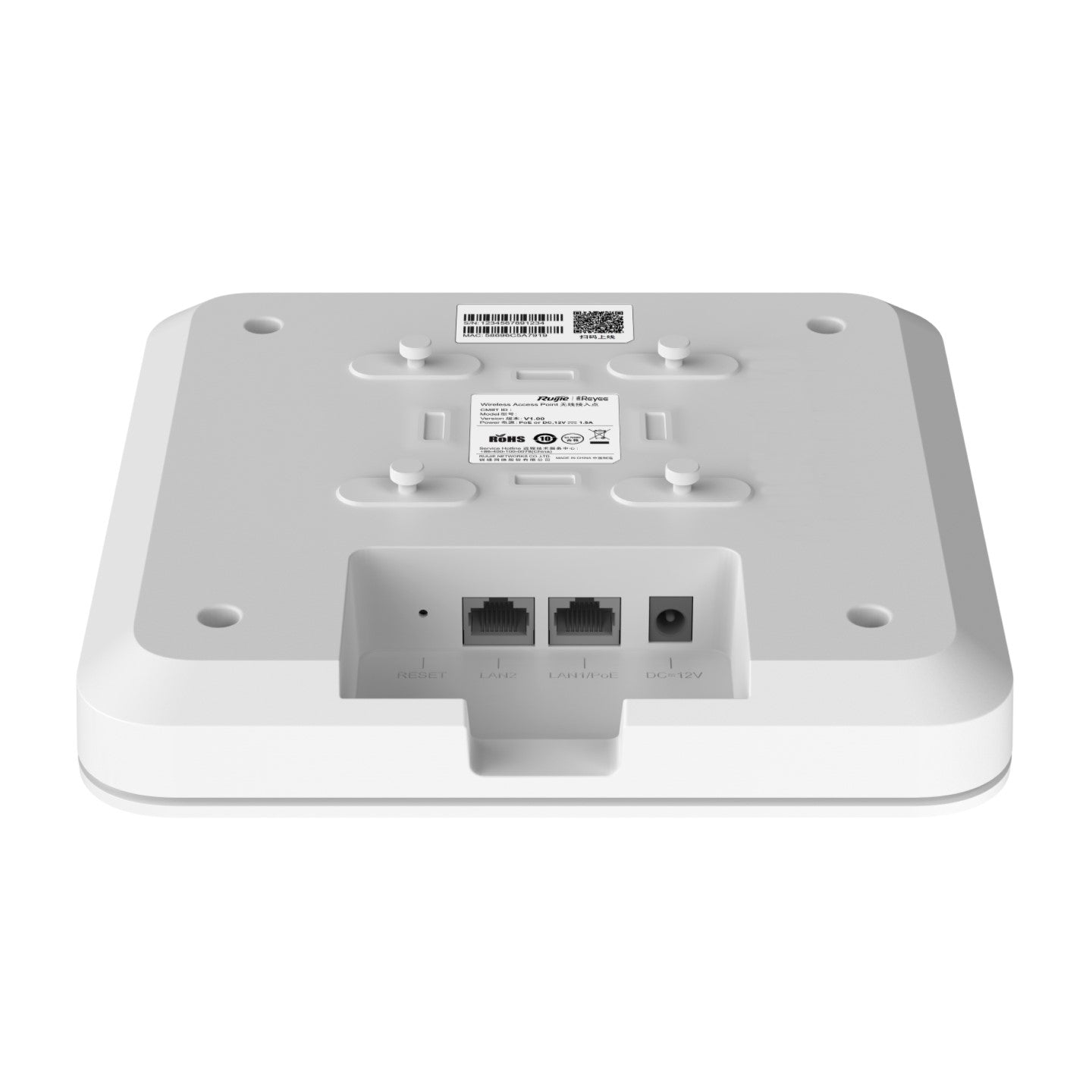

Ports

• 1 × 10/100/1000BASE-T Ethernet

• 1 × 10/100/1000/2500BASE-T Ethernet

Power & Consumption

• Supports DC power adapter (12V / 2.5A) or PoE+

• DC is prioritized if both are connected

• Max power consumption: 25.4W

• PoE budget: N/A

Mounting & Environment

• Install Ceiling or Wall

• Operating temperature: 0°C to 40°C (32°F to 104°F)

• IP41 protection rating

Physical Dimensions

• Size: 220 × 220 × 35 mm (excluding bracket)

• Weight: ≤ 0.55 kg (without packaging)

• Color: White

Management

• Supports management of up to 300 devices via Ruijie Cloud / App
