Maximum working pressure: 16bar / 232psi
Tank pre charge: 4bar / 58psi
Dimension: 124.0cm x 68.0cm
Features:
- Capacity: 300 liter / 79.25 gallon
- 16 bar pressure rating
- Pre-charge: 4.0 bar / 58 psi
- Maximum operating temperature: 90° C / 194° F

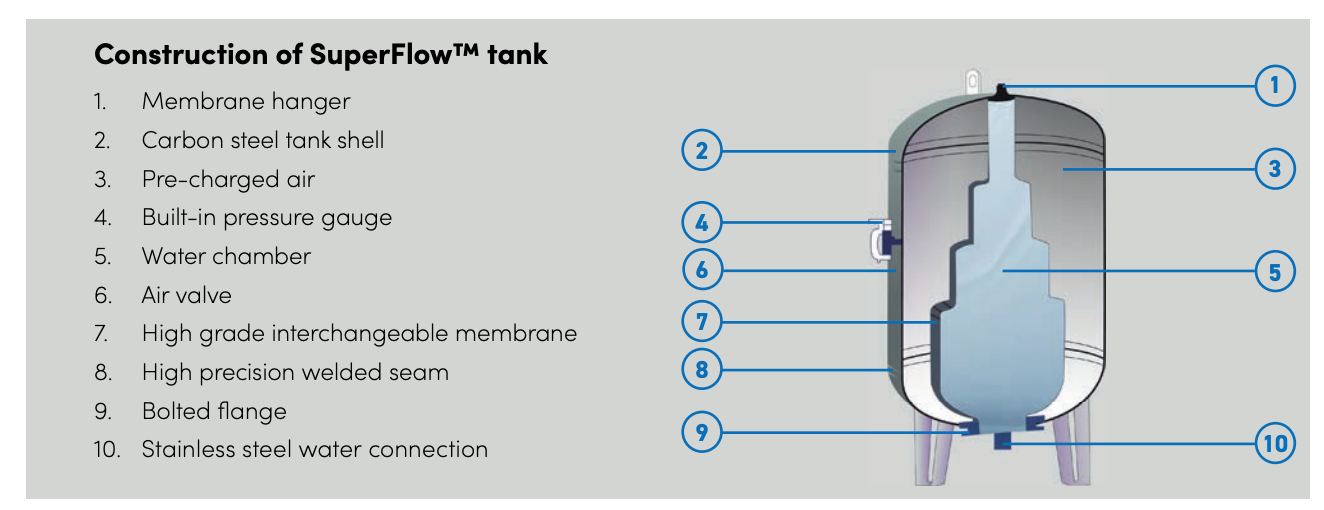

- Replaceable membrane design
- High-grade butyl diaphragm
- Built-in pressure gauge
- All SuperFlow tanks come with a built in pressure switch connection on top to allow for user integration with pump control system
- Stainless steel water connection
- Lifting lugs are mounted for easy movement
SuperFlow™ series tanks are ideally suited for applications where high-volumes and/or high-pressure ratings are required. These applications may include pressure booster systems, hot water circulation systems as well as water hammer arresting in high-rise and multistory buildings such as hotels, hospitals or business centers.
Applications include:
- High rise buildings
- Commerical applications
- Water utility supplies
- High volume/ high pressure applications
- District heating water circulation
- Water hammer arresting
The interchangeable membrane design allows the end user to replace the membrane as required, and the built-in pressure gauge (available on 100 L /26.4 G models and above) allows for easy and efficient pressure monitoring.
SuperFlow series tanks are designed to the EN13831:2007 technical standard and produced in accordance with the Pressure Equipment Directive 2014/68/EU.
SuperFlow series tank volumes range 50 – 10,000 L / 60 – 2,640 G making SuperFlow one of the most comprehensive pressure tank lines globally.
