Vn: 60 liter (15.9 gal)
Virgin polypropylene liner
Stainless steel water connection 1" male thread BSP
Brass air valve
Maximum working temperature: 90ºC
Maximum working pressure: 10bar / 150psi
Tank pre charge: 1.9bar / 28psi
Dimension: 48.10cm x 31.80cm
- Single diaphragm design
- NSF Standard 61, CE/PED, WRAS, ACS, ISO:9001, Gost, Evrazes approved
- Patented stainless steel water connection
- Virgin polypropylene liner
- Two part polyurethane, epoxy primed paint finish
- Leak free, o-ring sealed air valve cap
- Comprehensive testing
- No maintenance
PressureWave™ tanks are ideally suited for a wide range of applications, including booster systems, thermal expansion, irrigation systems, and hydraulic hammer arresting.

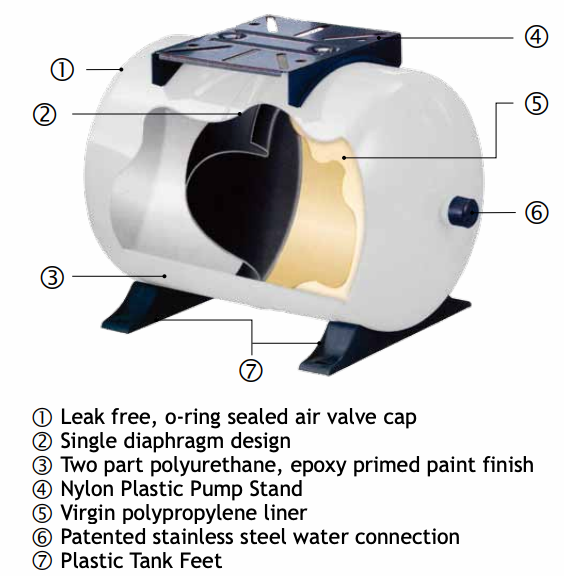

The PressureWave™ Series is constructed of a virgin polypropylene liner combined with an FDA approved high grade butyl diaphragm. This is held against the wall of the tank with a steel clench ring. The brass air valve, sealed by a threaded o-ring valve cap, prevents air leaks. Water enters the tank through a patented stainless steel water connection. The diaphragm and liner are both reinforced in specific wear areas for longer life. All internal parts including the air valve are rounded to prevent piercing of the diaphragm in extreme conditions. The water connection uniquely provides a dual water/air seal ensuring a complete leak free and maintenance free pressure vessel. On the exterior the almond colored two-part polyurethane paint finish over an epoxy undercoating provides hundreds of hours of UV and salt spray protection.
PressureWave™ tanks are quality tested at several stages on the production line to insure the structural integrity of every tank.
PressureWave™ tanks represent the best value for the investment and are the best quality pressure vessels available today
Click here for technical features.
