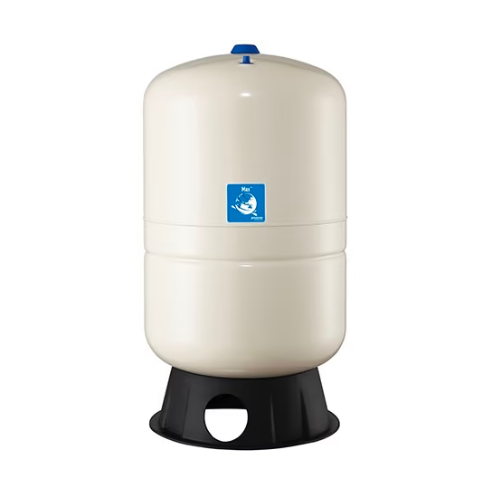

Pressure vessel Max™ Tank - 100L (4 Bar / 58psi)


Price:
Sale priceRs 35,097.00

Description

Pressure vessel Tank - 100L (4 Bar / 58psi), PWB-100LV - PRESSUREWAVE™

Vn: 100 liter (26.3 gal)
Virgin polypropylene liner
Stainless steel water connection 1" male thread BSP
Brass air valve
Maximum working temperature: 90ºC
Maximum working pressure: 16bar / 232psi
Tank pre charge: 4bar / 58psi


Maximum working pressure: 16bar / 232psi
Tank pre charge: 4bar / 58psi

Dimension: 80.40cm  x 43cm



Features

  • Suitable for many high-pressure applications
  • Super thick steel construction
  • Patented stainless steel water connection
  • Virgin polypropylene liner
  • Two part polyurethane, epoxy primed paint finish
  • Leak free, o-ring sealed air valve cap
  • Comprehensive testing
  • No maintenance
  • Single diaphragm design
  • Available in 16 bar and 25 bar maximum pressure



PressureWave™ tanks are ideally suited for a wide range of applications, including booster systems, thermal expansion, irrigation systems, and hydraulic hammer arresting.

The PressureWave™ Series is constructed of a virgin polypropylene liner combined with an FDA approved high grade butyl diaphragm. This is held against the wall of the tank with a steel clench ring. The brass air valve, sealed by a threaded o-ring valve cap, prevents air leaks. Water enters the tank through a patented stainless steel water connection. The diaphragm and liner are both reinforced in specific wear areas for longer life. All internal parts including the air valve are rounded to prevent piercing of the diaphragm in extreme conditions. The water connection uniquely provides a dual water/air seal ensuring a complete leak free and maintenance free pressure vessel. On the exterior the almond colored two-part polyurethane paint finish over an epoxy undercoating provides hundreds of hours of UV and salt spray protection.

PressureWave™ tanks are quality tested at several stages on the production line to insure the structural integrity of every tank.

PressureWave™ tanks represent the best value for the investment and are the best quality pressure vessels available today

Click here for technical features.
