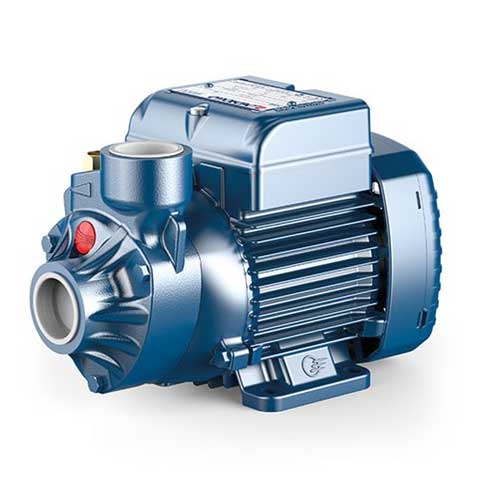

Pedrollo Water Pump with Peripheral Impeller 0.5HP

Description

Suitable for use with clean water that does not contain abrasive particles and liquids that are not chemically aggressive towards the materials from which the pump is made.
Thanks to their reliability, the fact that they are easy to use and are economical, they are ideal for domestic use and in particular for distributing water in combination with small pressure sets and for the irrigation of gardens and allotments.
The pump should be installed in an enclosed environment, or at least sheltered from inclement weather.

Features

Liquid type: Clean Water

Uses: Domestic

Applications: Irrigation pumps, water supply systems, pressure systems

Typology: Surface

Family: Peripheral

Application Limit:

• Temperature of the liquid from -10 °C to +60 °C
• Ambient temperature up to +40 °C (+50 °C for PK 60)
• Manometric suction lift up to 8 m

Max. working pressure:

• – 6 bar for PK 60, PK 60-MD, PK 65
• – 7 bar for PK 70, PK 80
• – 10 bar for PK 90, PK 100, PK 200, PK 300
• Continuous service S1

Specs

MODEL

• PKm 60

PHASE

• Mono-phase

POWER
kW

• 0.37

HP

• 0.50

PERFORMANCE
Q
l/min

• 5 ÷ 40

H
m

• 38 ÷ 5

MOUTHS

asp.

• 1"

mand .

• 1"
