Description

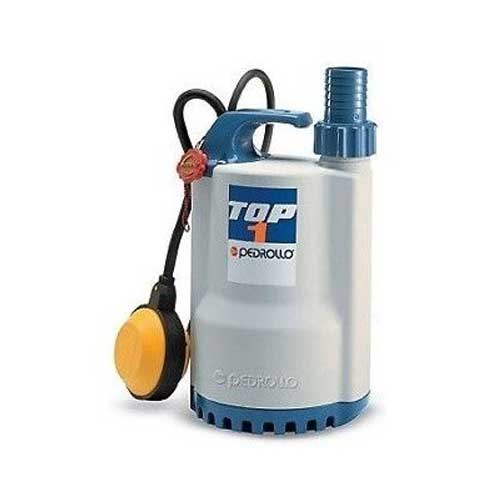

Pedrollo Submersible Pump 0.33hp 160 Lts/min
Max head 7 metres
Description
The TOP series is suitable for use with clear water that does not contain abrasive particles.
As a result of the design solutions that have been adopted, such as the complete cooling of the motor and the shaft with double seal, these pumps are easy to use and reliable.
They are suitable for use in applications such as draining small flooded areas (rooms, cellars, garages) in the event of an emergency, for the disposal of waste water in the home (from dishwashers, washing machines) and for emptying drainage traps.
Features
Liquid type: Clean Water
Uses: Domestic
Applications: Drainage, emptying tanks
Typology: Submersible
Family: Submersible pumps
Performance Range:
- Flow rate up to 360 l/min (21,6 m³/h)
- Head up to 14,50 m
Application Limit:
- Temperature of the liquid to +40 °C
Immersion depth
- – 3 m for TOP 1-2-3
- – 5 m for TOP 4-5 (with a sufficiently long power cable), (Maximum liquid temperature +90 °C for a maximum of 3 minutes intermittent service)
- Passage of suspended solids up to Ø 10 mm
- – 14 mm above ground level for TOP 1-2-3
- – 30 mm above ground level for TOP 4-5
- Continuous service S1
Specs
MODEL
-
TOP 1
PHASE
-
Mono-phase
POWER
kW
-
0.25
HP
-
0.33
PERFORMANCE
Q
l/min
-
20 ÷ 160
H
m
-
6 ÷ 1
MOUTHS
asp.
-
-
mand .
-
1¼"
