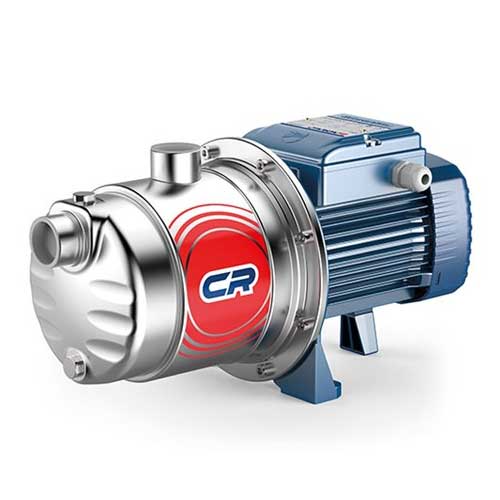

Pedrollo multi-stage Water Pump Silent 0.6hp
Description
Suitable for use with clean water and liquids that are not chemically aggressive towards the materials from which the pump is made.
As a result of their quietness, these pumps are widely used in domestic applications such as the distribution of water in combination with small and medium sized pressure sets, and for the irrigation of gardens and allotments, etc.
Features
Liquid type: Clean Water
Uses: Domestic, civil
Applications: Water supply systems, pressure systems, irrigation pumps
Typology: Surface
Family: Horizontal multistage pumps
Performance Range:
- Flow rate up to 130 l/min (7,8 m³/h)
- Head up to 67 m
Application Limit:
- Temperature of the liquid from -10 °C to +40 °C
- Ambient Temperature to +40 °C
- Manometric suction lift up to 7 m
- Max. working pressure 7 bar
- Continuous service S1
Specs
MODEL
- 3CRm 80
PHASE
- Mono-phase
kW
- 0.45
- 0.60
Q
l/min
- 5 ÷ 80
m
- 38 ÷ 5
asp.
- 1"
- 1"
