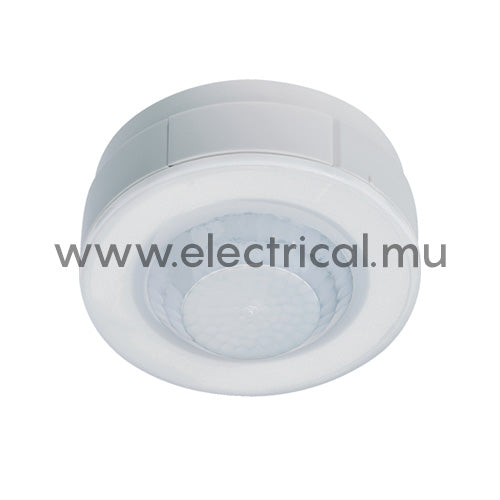

Hager Hager Movement Detector 360° Surface Mounted


Price:
Sale priceRs 1,570.00

Description

Architecture
Fixing mode surface-mounting
Functions
Function can only be used as individual unit
Main electrical features
Rated operational voltage Ue 230 V
Frequency 50;60 Hz
Dimensions
Height of installed product 50 mm
Length 100 mm
Frequency
Frequency 50;60 Hz
Power
Halogen switching capacity 230V 0 / 2300 W
Max. power with fluo uncompensated lamps 1000 VA
Incandescent bulb power 0 / 2300 W
Capacity
Breaking capacity 10A 230V AC1
Power supply
Supply voltage 230 V +10% ; -15%
Detection
Side detecting distance 6 m
Detection angle 360 °
Materials
Colour white
Lighting control
Brightness measurement range 5 / 1000 Lux
Installation, mounting
Mounting type surface-mounted
Maximum Mounting Height 4 m
Connection
Number of contacts 1
Type of contacts NO
Type of connection with screw terminals
Settings
Time delayed range 5s to 30 min
Setting with potentiometers for setting the response brightness and delay time without dismantling
Response value sensitivity adjustable No
Scope of delivery
Component with fitting material
Safety
Protection index IP IP21
Protection class isol.class II
Use conditions
Operating temperature -5/45 °C
Storage temperature -20/60 °C
Temperature
Operating temperature -5/45 °C
Identification
Application, usage Motion detector
