Description
EXTERNAL DIMENSIONS
- 10W : 160x128 mm
- 20W : 178x165 mm
- 30W : 203x185 mm
Warranty: 2 years
Legrand is the global specialist in electrical and digital infrastructures, offering high value added products and solutions for commercial, residential and industrial buildings.
Product characteristics

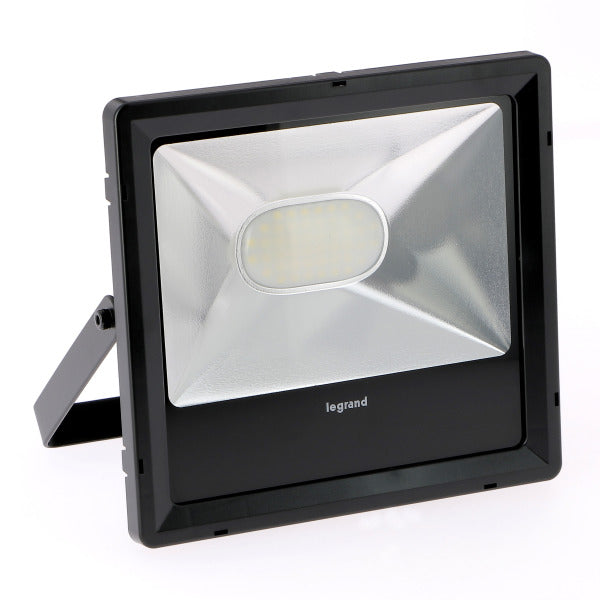

Legrand LED floodlights, color rendering index greater than 80; Supply voltage 100 - 240 VAC, 50/60 Hz; AbstrahB137: B204el 110 °; Protection class I; Lifespan up to 30,000 hours, protection class IP 65, housing material: aluminum; Color: Black.
|
Suitable for wall mounting |
Yes |
|
Suitable for ceiling mounting |
Yes |
|
Suitable for platform / floor mounting |
Yes |
|
adjustability |
rotatable |
|
Illuminant |
LED not interchangeable |
|
Frame |
without |
|
Housing material |
plastic |
|
Housing color |
black |
|
Type of voltage |
AC |
|
nominal voltage |
100 ... 240 V |
|
Nominal LED current at constant current |
76 ... 94 mA |
|
Control gear |
not mandatory |
|
With control gear |
Yes |
|
Without dimming function |
Yes |
|
reflector |
high gloss |
|
Light distribution |
symmetrical |
|
Beam angle |
extremely wide distribution> 80 ° |
|
IP protection) |
IP65 |
|
Impact resistance |
IK06 |
|
Protection class |
I. |
|
Max. System performance |
Available in:- 10 W - 20W - 30W |
|
Light color |
Day Light |
|
Color temperature |
6500 ... 6500K |
|
Color rendering index CRI |
80-89 |
|
Rated luminous flux according to IEC 62722-2-1 |
999 lm |
|
width |
128 mm |
|
Height / depth |
56.4 mm |
|
length |
160 mm |
|
Luminaire with limited surface temperature "D mark" |
Yes |
