Description
EXTERNAL DIMENSIONS
- 3W : 85x 85 mm
- 6W : 120x120 mm
- 12W : 170x170 mm
- 18W : 225x225 mm
Warranty: 2 years
Legrand is the global specialist in electrical and digital infrastructures, offering high value added products and solutions for commercial, residential and industrial buildings.
Product characteristics

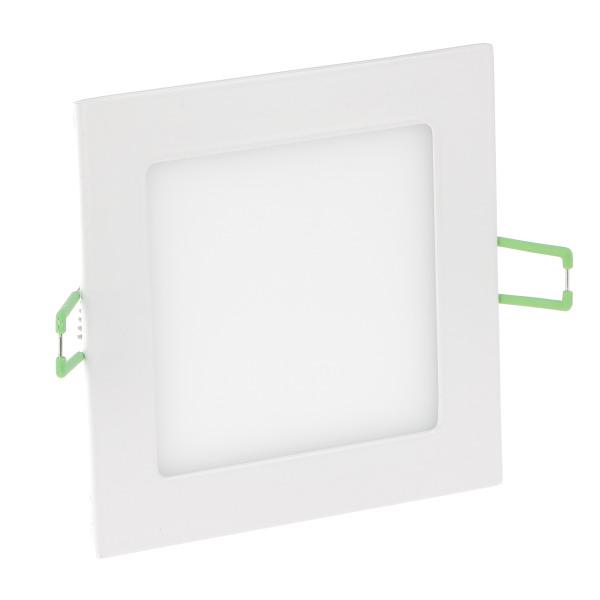

Legrand LED recessed luminaire, easy installation thanks to external power supply with connector; Color rendering index greater than 80; Supply voltage 100 - 240 VAC 50/60 Hz; Beam angle 120 °; Protection class II; Lifespan up to 30,000 hours, protection class IP 20, housing material: aluminum; Color white.
|
Suitable for flush mounting |
Yes |
|
Illuminant |
LED not interchangeable |
|
With illuminant |
No |
|
Suitable for number of lamps |
1 |
|
Frame |
other |
|
Housing material |
aluminum |
|
Housing color |
White |
|
Cover material |
Plastic opal |
|
Execution of the grid |
without |
|
Type of voltage |
AC |
|
nominal voltage |
100 ... 240 V |
|
Nominal LED current at constant current |
50 ... 120 mA |
|
Energy efficiency class of the permanently installed lamp |
A ++, A +, A (LED) |
|
IP protection) |
IP20 |
|
Impact resistance |
IK00 |
|
Protection class |
II |
|
Suitable for lamp power |
3 W | 6 W | 12 W | 18 W |
|
Max. System performance |
3 W | 6 W | 12 W | 18 W |
|
Rated luminous flux according to IEC 62722-2-1 |
180 lm | 360lm | 840lm | 1260lm |
|
Light color |
Daylight |
|
Color temperature |
6500 K |
|
Color rendering index CRI |
80-89 |
|
width |
85 mm |
|
Height / depth |
40 mm |
|
length |
85 mm |
|
Installation length |
85 mm |
|
Pave width |
85 mm |
|
Installation height / depth |
4 mm |
