Description
EXTERNAL DIMENSIONS
- 6W : Ø 120mm
- 12W : Ø 170mm
- 18W : Ø 225mm
- 24W : Ø 300mm
Warranty: 2 years
Legrand is the global specialist in electrical and digital infrastructures, offering high value added products and solutions for commercial, residential and industrial buildings.
Product characteristics

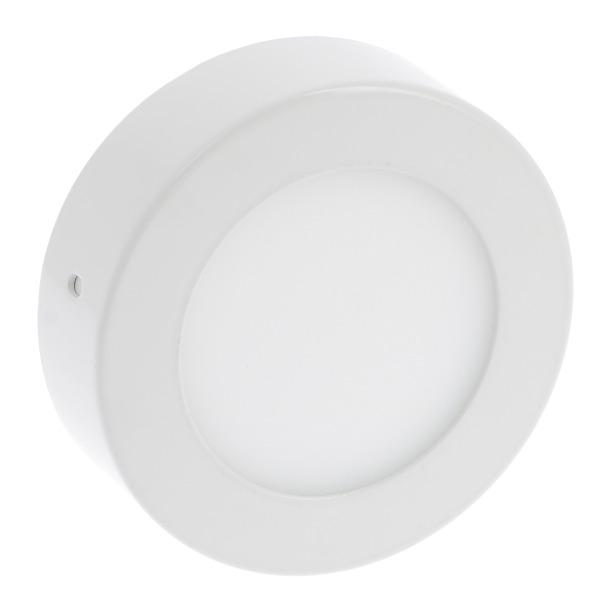

Legrand LED ceiling light, easy installation by external power supply with connector; Color rendering index greater than 80; Supply voltage 100 - 240 VAC 50/60 Hz; Beam angle 120 °; Protection class II; Lifespan up to 30,000 hours, protection class IP 20, housing material: aluminum; Color white.
IP protection): IP20
Impact resistance: IK00
Protection class: II
Rated ambient temperature according to IEC62722-2-1: 0 ... 40 ° C
Suitable for lamp power: 6 W | 12 W | 18 W | 24 W
Max. System performance: 6 W | 12 W | 18 W | 24 W
Rated luminous flux according to IEC 62722-2-1: 360 lm | 840 lm | 1260 lm | 1680 lm
Light color: Warm White
Color temperature: 3000 K
Color rendering index CRI: 80-89
Height / depth: 35 mm
outer diameter: 120 mm
Installation height / depth: 35 mm
Mounting diameter: 120 mm
