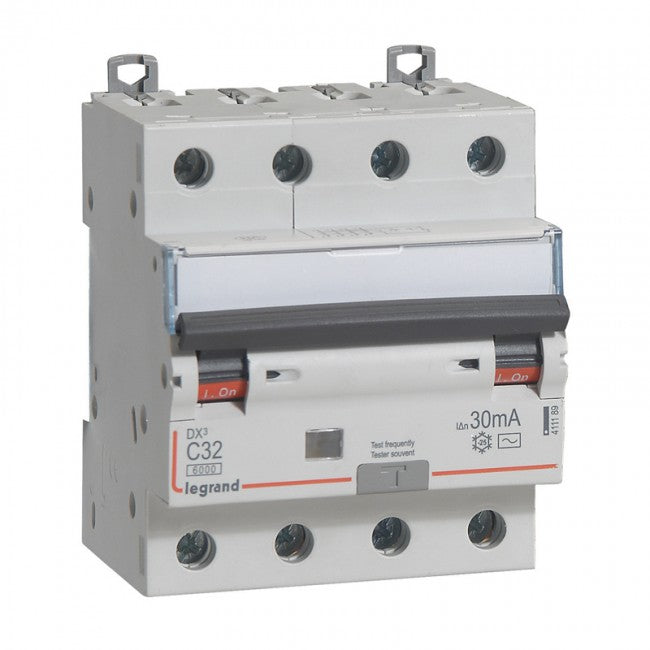

• Legrand RCBO DX³ 6000 4P 30mA - 32A
1 1

Legrand RCBO DX³ 6000 4P 30mA - 32A

Legrand RCBO DX³ 6000 4P 30mA - 32A

Rs 7,405.00
Rs 7,995.00 Rs 7,405.00
Sale Sold out
Tax included.

Type : RCBO

SKU : 411189

Collections : Circuit Breakers, Legrand Protection,

Availability : In Stock

Shipping & Returns

Delivery Available on this product.
We deliver all Mauritius domestic orders within 2-5 business days!

View full details

RCBO - DX³ 6000 -10 kA -4P-400 V~ - 32 A -30 mA -AC type



Warranty : 2 years


General characteristics

RCBO - DX³ 6000 -10 kA -4P-400 V~ -10 A -30 mA -AC type

RCBOs DX³ 6000 - 10 kA - residual current circuit breakers from 10 A to 63 A - AC, A and F types

  • Conform to IEC 61009-1, IEC 62423 (F type)
  • Voltage independent tripping
  • Breaking capacity:
    • 6000 - IEC 61009-1 - 10 kA / IEC 60947-2 for single pole + neutral, 2 and 4-pole
  • AC type : detect AC component faults
  • A type : detect AC and DC component faults
  • F type (High immunity) : detect AC and pulsating DC residual currents. Enhanced immunity to unwanted tripping in disturbed environments. Detection of high frequency fault currents
  • Can be equipped with DX³ signalling and remote tripping auxiliaries and motorised controls
Product characteristics

4-pole - 400 V~

  • 4-module RCBOs are compatible with prong-type and fork type supply busbars
  • 7-module RCBOs are compatible with prong-type supply busbars only

AC Type 30 mA

  • C curve
  • Nominal rating In : 10 A | 32A | 40A | 63A
  • Number of modules : 4
