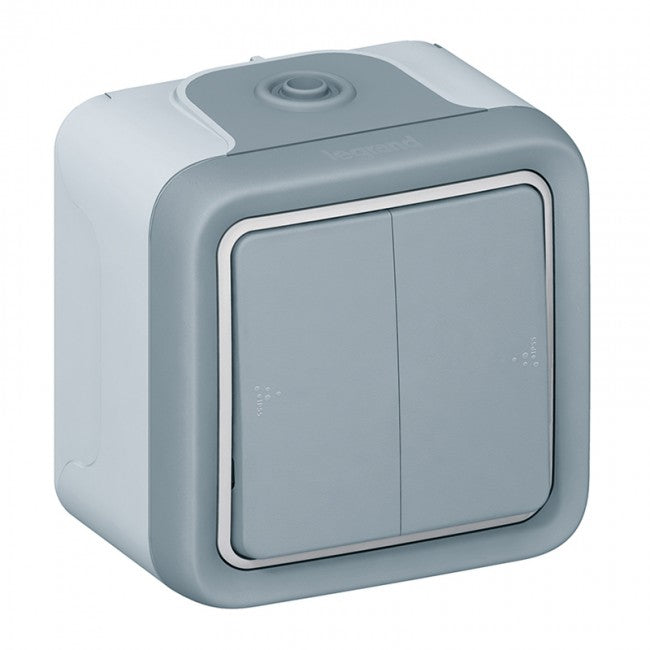

Legrand Plexo Surface Weatherproof Switch 2 Gang 2 Way 10Ax IP55

Product benefits

• Weather-resistant design with IP55 protection

• IK08 impact resistance for enhanced durability

• Versatile 3-in-1 configuration for different lighting control requirements

• Can operate as a double 2-way switch, double push-button or switch + push-button

• Tool-free push-in terminals for quick and convenient wiring

• Suitable for humid, dusty and exposed environments

• Robust thermoplastic construction

• Suitable for indoor and outdoor installations

• Surface-mounted design for easy installation

• Halogen-free material

Product features

• Brand: Legrand

• Range: Plexo

• Reference: 069715L

• Type: 2-gang 2-way switch / push-button

• Number of rockers: 2

• Functions: Double 2-way switch / Double push-button / 2-way switch + push-button

• Switching current: 10 AX

• Push-button current: 10 A

• Rated voltage: 250 V AC

• Frequency: 50–60 Hz

• Connection: Tool-free push-in terminals

• Terminal capacity: 1.5–2.5 mm²

• Compatible cable type: Flexible or rigid

• Mounting: Surface mounted

• Mounting direction: Horizontal

• Fastening: Screw mounting

• Protection rating: IP55

• Impact resistance: IK08

• Material: Thermoplastic

• Finish: Matt

• Halogen free: Yes

• Dimensions: 82 × 84.5 × 61 mm

• Operating temperature: -10°C to +40°C

• EAN: 3414971881891

Areas of application

• Residential electrical installations

• Commercial buildings

• Outdoor lighting control

• Multi-point lighting control

• Garages and workshops

• Terraces and covered outdoor areas

• Utility and service areas

• Humid or dusty environments

• Surface-mounted electrical installations
