Save Rs 7.00
Legrand

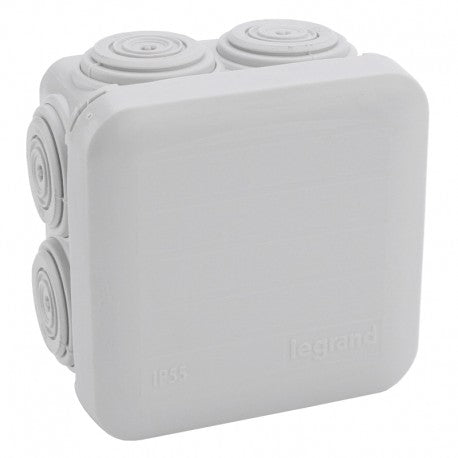

Size: 65 x 65 x 40 mm (2.5x2.5)
Price:
Rs 98.00 Rs 105.00

Description

Square Plexo box with 7 direct entry membrane glands - IP55 IK07 - 65x65x40 mm - grey RAL 7035

Legrand Plexo Boxes - IP55 - IK07 Square Boxes. Affordable, perfect for your build.

Plexo™ boxes IP 55 - IK 07 - with direct entry membrane glands - 650° C

  • IP 55 - IK 07
  • Resistance to incandescent wire 650°C
  • For use as junction boxes in any type of normal installation circuit
  • Operating temperature: -25 to +40°C
  • Interchangeable membrane glands with direct entries for IRL tubes up to Ø16 and R02V cables, with marked cut-out for IRL tube Ø greater than 16
  • Captive cover with tie. Space for marking on both sides of the cover. Fixing with vertical level adjustment. Class II is ensured by protective caps (supplied) for the fixing screws
  • Boxes without halogenated flame retardants (European Directive RoHS 2002/95/EC)

Square boxes

  • Can be fixed using a tool such as a Pulsa 700 E nail gun
  • 7 membrane glands

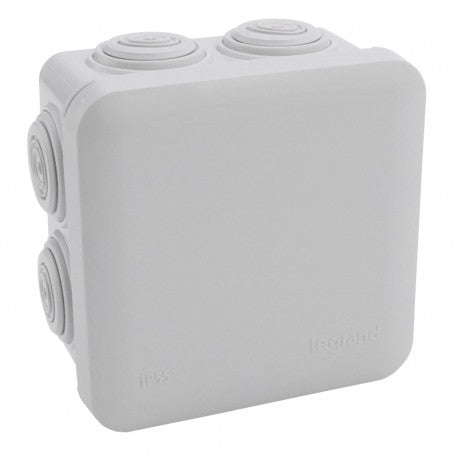

65 x 65 x 40 mm & 80 x 80 x 45 mm

  • Grey RAL 7035
  • Accepted cable and tube Ø: 4 to 20 mm
  • Clippable covers

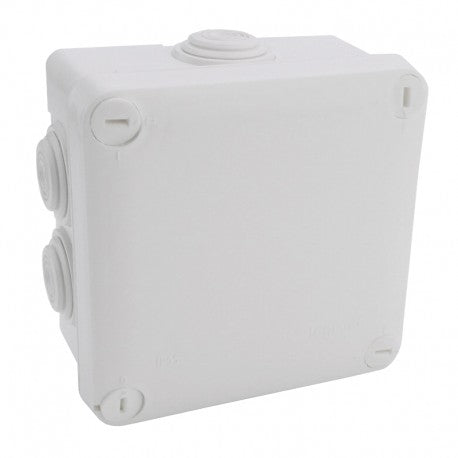

105 x 105 x 55 mm

  • Grey RAL 7035
  • Accepted cable and tube Ø: 4 to 25 mm
  • Cover closed with a 1/4 turn

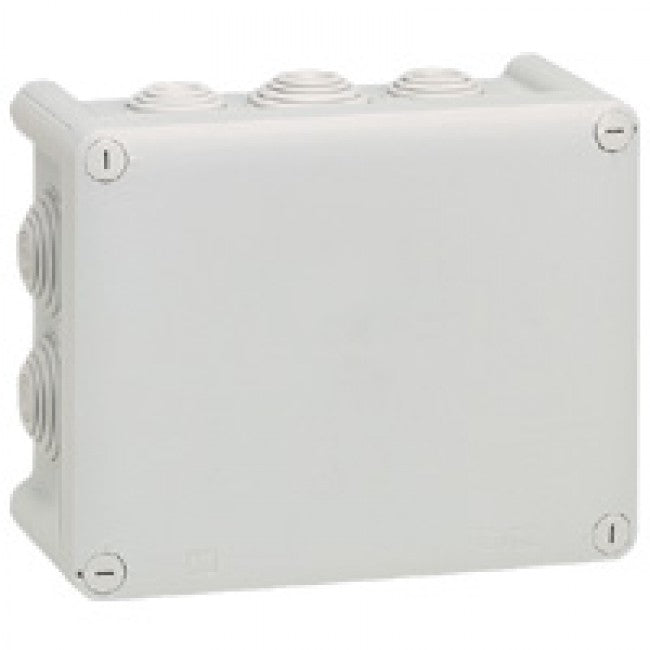

155 x 110 x 74 - 10 entry membrane glands

  • Grey RAL 7035
  • 10 glands
  • Ø cables and tubes accepted 4 to 25 mm
