Warranty: 2 years

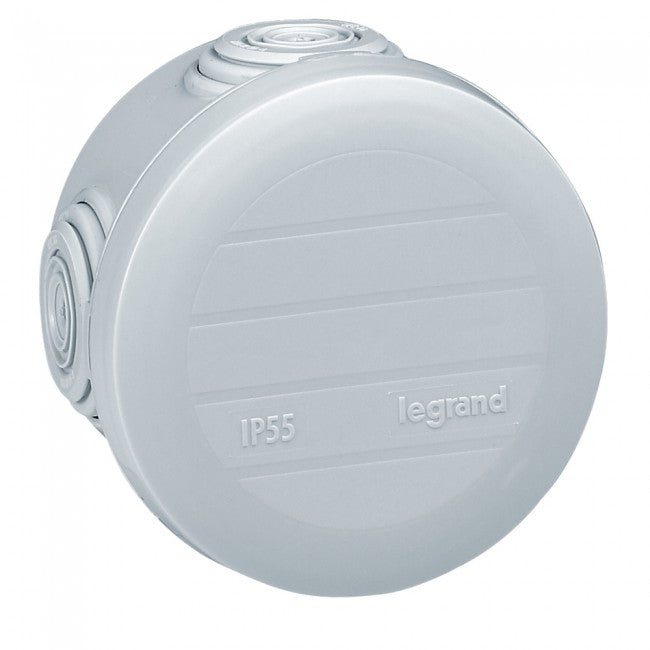

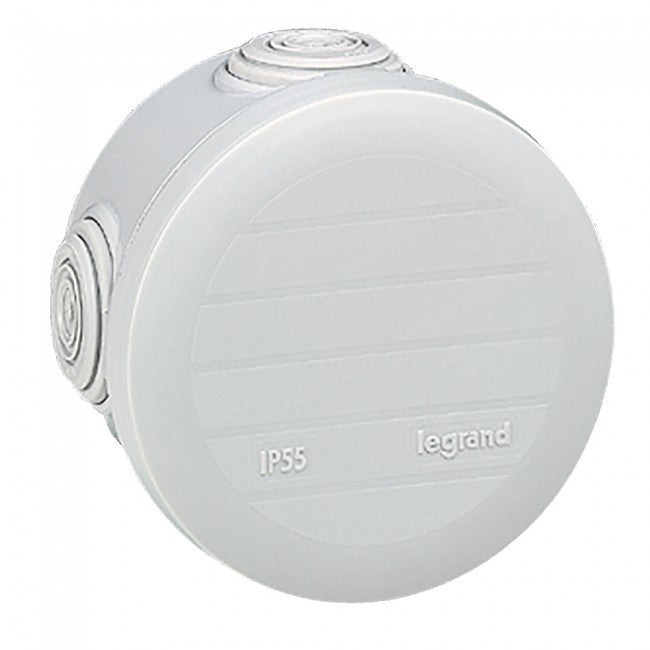

Legrand Plexo Boxes - IP55 - IK07 Round Box. Affordable, perfect for your build.
Plexo™ boxes IP 55 - IK 07 - with direct entry membrane glands - 650° C
- IP 55 - IK 07
- Resistance to incandescent wire 650°C
- For use as junction boxes in any type of normal installation circuit
- Operating temperature: -25 to +40°C
- Interchangeable membrane glands with direct entries for IRL tubes up to Ø16 and R02V cables, with marked cut-out for IRL tube Ø greater than 16
- Captive cover with tie. Space for marking on both sides of the cover. Fixing with vertical level adjustment. Class II is ensured by protective caps (supplied) for the fixing screws
- Boxes without halogenated flame retardants (European Directive RoHS 2002/95/EC)
Round boxes
- Clippable covers
- 4 membrane glands
- Accepted cable and tube Ø: 4 to 20 mm
- Grey RAL 7035
- Ø60 - height 40
- Ø70 - height 45
