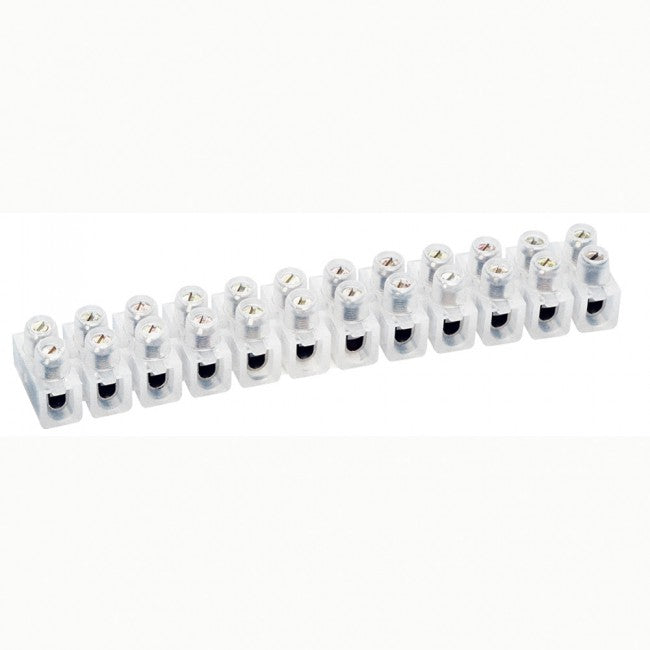

Connection Strip Nylbloc - Capacity  6 mm² - Max. current 10A - 41 A - White

Product characteristics

Nylbloc connection strips

• 12 elements with captive screws
• Supplied with screws undone
• Flame retardant polypropylene (– 25 °C to + 100 °C)
• Ambient temperature from – 25 °C to + 55 °C (T 55)
• Conform to EN 60998-2-1 and EN 60664-1
• Self-extinguishing to EN 60695-2-11 at 850
• Insulation voltage: 250 V according to EN 60 998-2-1
• Use at 400 V integrated in a series of products that comply with the requirements of EN 60664-1, pollution degree 2, overload category III

• White

• Rated capacity: : 6 mm²
• Hole Ø : : 3.5 mm
• Max current : : 41 A

General characteristics

Nylbloc™ - connection strips and connectors without screws
