Description
General characteristics
- Standard distribution
- Connection with or without Starfix ferrules
- Self-extinguishing, according to EN 60695-2-11: 960 °C on active part supports
Product characteristics

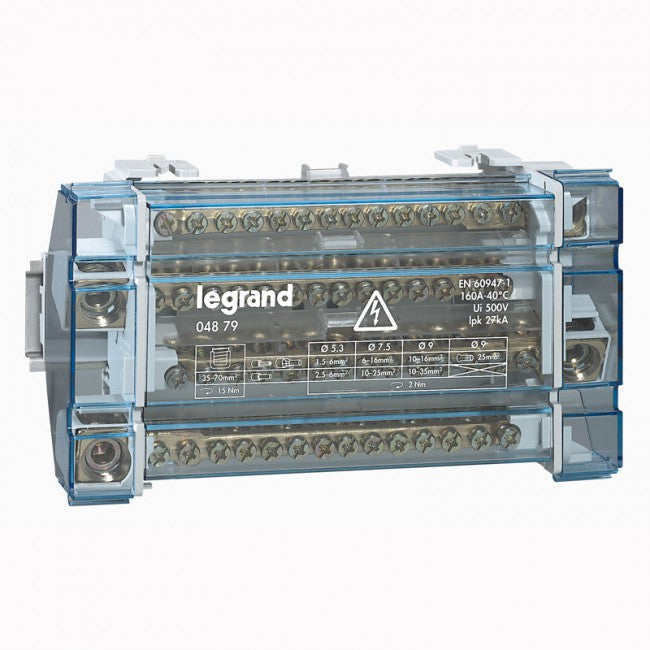

Monobloc modular distribution blocks
- Mounting on rail or on plate with 2 screws
- Supplied with insulated back plate and transparent protective front cover
- Each bar can be labelled using CAB 3
- Possible to add IP 2X terminal block
Four pole
- Equipped with 4 bars
- With short ferrule supplied for flexible connection 25 mm²
- Rating : 160 A
- Isc peak : 27 kA
- Icw : 8.4 kA
- Number of modules : 10
