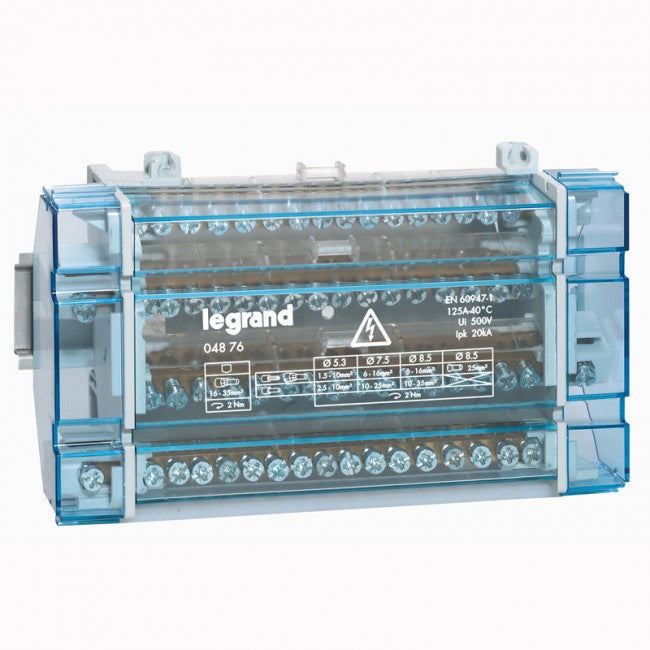

Legrand Monobloc modular distribution block - 4P - 125 A - 17 connections
General characteristics
- Standard distribution
- Connection with or without Starfix ferrules
- Self-extinguishing, according to EN 60695-2-11: 960 °C on active part supports
Product characteristics
Monobloc modular distribution blocks
- Mounting on rail or on plate with 2 screws
- Supplied with insulated back plate and transparent protective front cover
- Each bar can be labelled using CAB 3
- Possible to add IP 2X terminal block
Four pole
- Equipped with 4 bars
- Incoming conductors must be equiped with ferrules
- Connection: 25 mm² witth ferrules without insulating flange
- Rating : 125 A
- Isc peak : 20 kA
- Icw : 4.5 kA
- Number of modules : 10
General characteristics
- Standard distribution
- Connection with or without Starfix ferrules
- Self-extinguishing, according to EN 60695-2-11: 960 °C on active part supports
Monobloc modular distribution blocks
- Mounting on rail or on plate with 2 screws
- Supplied with insulated back plate and transparent protective front cover
- Each bar can be labelled using CAB 3
- Possible to add IP 2X terminal block
Four pole
- Equipped with 4 bars
- Incoming conductors must be equiped with ferrules
- Connection: 25 mm² witth ferrules without insulating flange
- Rating : 125 A
- Isc peak : 20 kA
- Icw : 4.5 kA
- Number of modules : 10
