Description
General characteristics
- Standard distribution
- Connection with or without Starfix ferrules
- Self-extinguishing, according to EN 60695-2-11: 960 °C on active part supports
Product characteristics

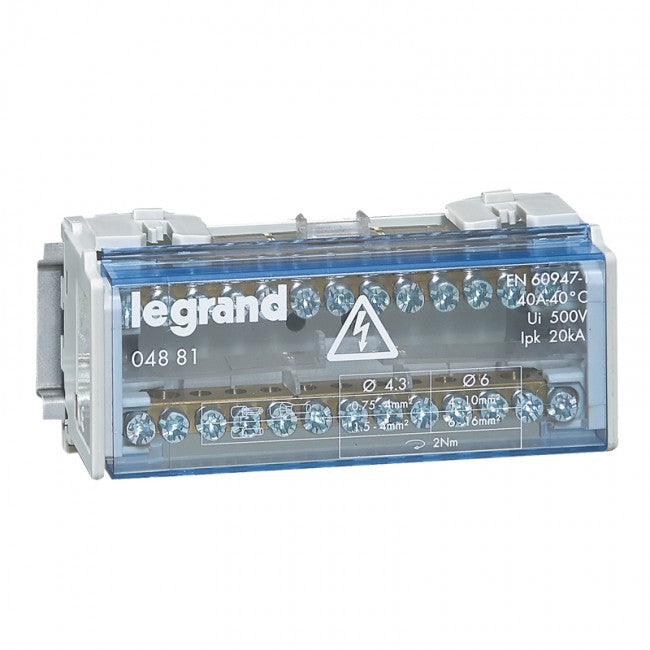

Monobloc modular distribution blocks
- Mounting on rail or on plate with 2 screws
- Supplied with insulated back plate and transparent protective front cover
- Each bar can be labelled using CAB 3
- Possible to add IP 2X terminal block
Double pole
- Equipped with 2 bars
- Rating : 40 A
- Isc peak : 20 kA
- Icw : 3 kA
- Number of modules : 6
