Description

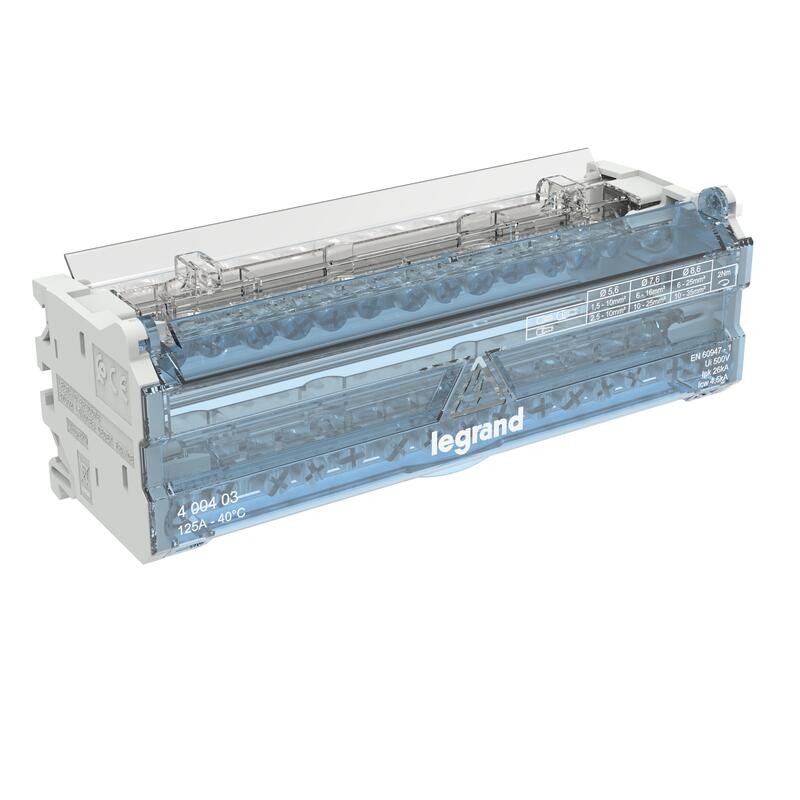

Legrand Repartiteur 2p 125a 8mod 12 departs - 8 Modules
One-piece modular distribution block, allows the arrivals and departures of the electrical circuits of a dwelling to be grouped together in one place, with easy wiring
Product features
- Inlet 10-35 mm² in rigid conductor or 6-25 mm² in flexible conductor with or without ferrule
- 14 outputs: 3 x 10 -25 + 11 x 2.5-10 mm² in rigid conductor
- 14 outputs: 3 x 6-16 + 11 x 1.5-10 mm² in flexible conductor with or without ferrule
- In = 125A - 40°CUi = 500V
- Ipk = 26 kÂIcw = 4.5 kA
Technical characteristics
- Number of poles: 2
- Rated current: 125A
- Connection Type: To screw
- Laying method: DIN rail
- Height: 52mm
- Width: 143mm
- Depth: 51mm
- Impact resistance (IK): IK05
- Protection class (IP): IP00
- Operating / installation temperature: -25-70°C
- Storage temperature: -40-70°C
- Supply voltage: 0-500V
- Halogen free: No
- Type of terminal blocks: Live/neutral
- Terminal capacity: 1.5-25mm²
- Equipped with a label holder: No
- EAN/gencode: 3414971978485
Benefits
- Maximized internal space and optimized rung orientation for easy cable access
- Connections sized and positioned to facilitate connection and meet all needs
- An "anti-loss of screw" system slowing down the unscrewing of the screws of the unconnected connections
