Description

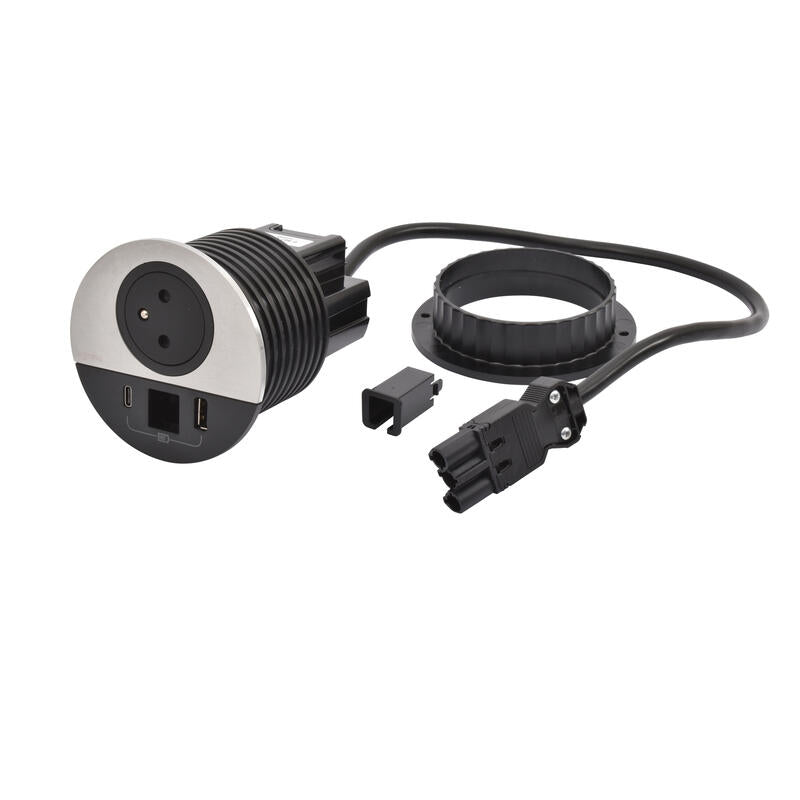

Legrand Incara Disq 80 2P+E Surface socket, USB Type-A+C charger, cable outlet 0.5m Wieland connector - metal Ø80mm
Incara Disq 80 is a solution designed for nomadic workers. Incara Disq 80 fits into a 79mm diameter hole and offers a power outlet, USB charging and network access in a small footprint
Product characteristics
- Plug finish: black
- Plate finish: metal
- Drilling diameter 79mm
- Comes with fixing ring
Benefits
Protection cover
Technical characteristics
- ModelRecessed
- LiftableNo
- StretchableNo
- ShapeRound
- MaterialPlastic
- ColorOther
- Height115mm
- Installation depth109mm
- Diameter105mm
- Number of French standard sockets (type E)1
- Number of USB connections2
- Protection against overvoltageNo
- With built-in USB power supplyYes
- Nominal voltage250V
- Protection index (IP)IP20
- Impact protection index (IK)IK07
- Antibacterial treatmentNo
- Operating temperature-5-35°C
- Storage temperature-10-70°C
- Voltage typeAC
- Supply current16-16A
- Standby consumption0.06mA
- Connection terminal identification indicationYes
- Halogen-freeNo
- pre-wiredYes
- Terminal typeNot applicable
- Terminal capacity2.5-2.5 mm²
- Equipped with a label holderNo
THE + facility
Fits into a standard 80mm diameter
THE + use
Integrated, space-saving electrification solution with protective shutter
Information on the range
Incara, a new range of electrification products dedicated to furniture, improves users' lives by providing them with functionality, ergonomics, comfort and speed of installation, in any type of space: in the office, at home, in a hotel, a cafe or an airport. The diversity of solutions allows for harmonious integration into all furniture. Trendy, Incara finishes help to enhance spaces with aesthetics and modernity. Incara, a simple way for users to stay connected anywhere, anytime and anywhere.
