Description

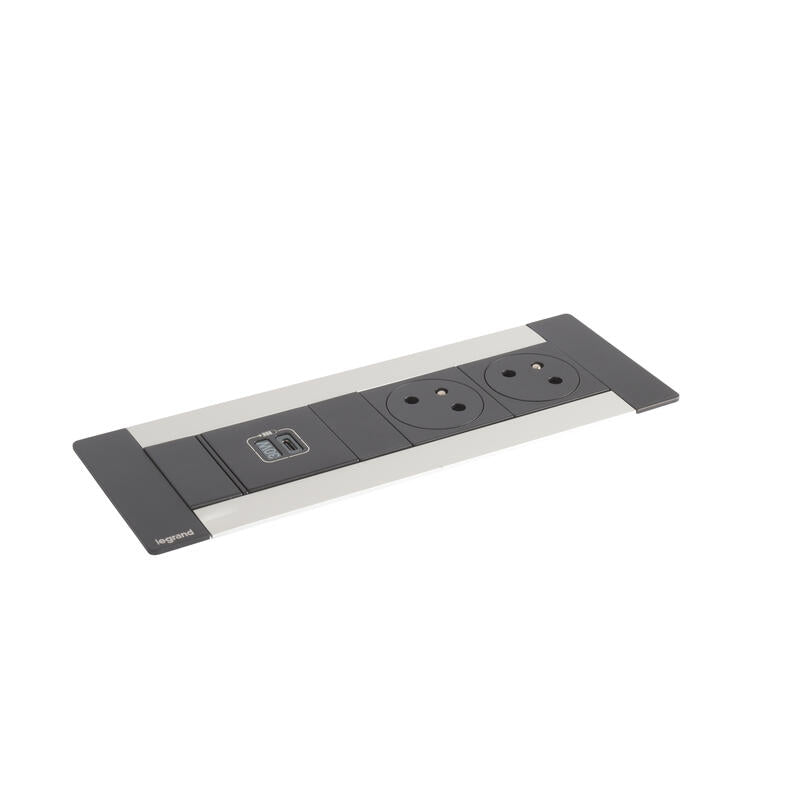

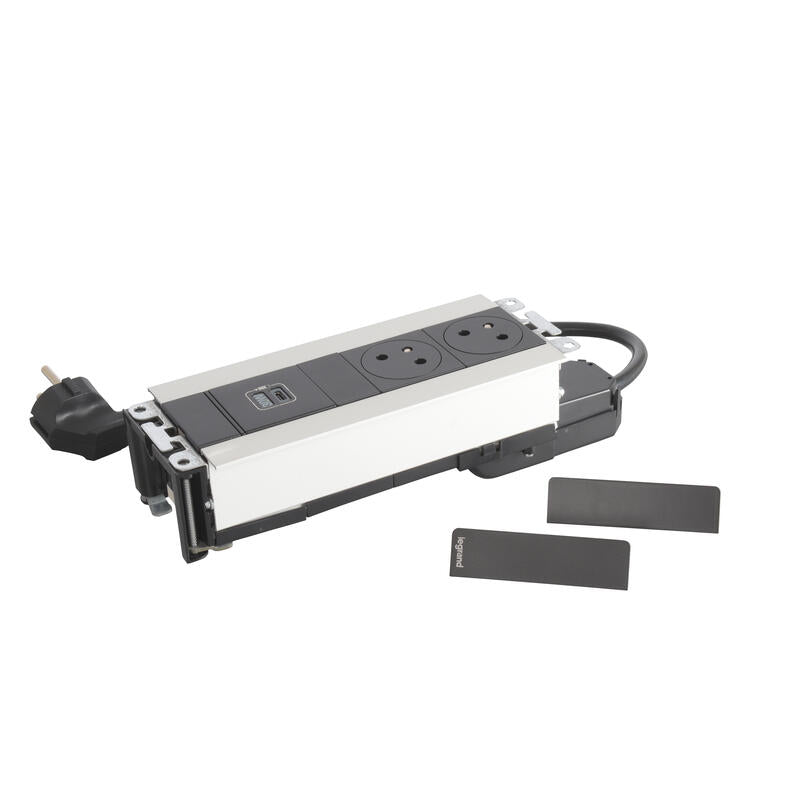

Legrand Incara Multilink horizontal version for furniture equipped with 1 2P+E socket and 1 USB Type-C Power Delivery charger - metal
Incara Multilink is the built-in solution for meeting tables, with its high current, data and audio-video functions. Configurable in functions and length, Multilink adapts to user needs
Product characteristics
- 6 modules
- Aluminum finish
- Black colored sockets
- Aluminum body
- Plastic tips
Benefits
- Compact and very thin product
- Different compositions and lengths available on request
Technical characteristics
- ModelRecessed
- LiftableNo
- StretchableNo
- ShapeRectangular
- MaterialAluminum
- ColorStainless steel (stainless steel)
- Length249mm
- Width80mm
- Height69mm
- Installation depth67mm
- Number of sockets with earth contact2
- Number of USB connections2
- Protection against overvoltageNo
- With built-in USB power supplyYes
- Nominal voltage250V
- Protection index (IP)IP20
- Impact protection index (IK)IK07
- Antibacterial treatmentNo
- Operating temperature-5-35°C
- Storage temperature-10-70°C
- Voltage typeAC
- Supply current16-16A
- Connection terminal identification indicationYes
- Halogen-freeYes
- pre-wiredYes
- Terminal typeScrew terminal
- Terminal capacity1.5-2.5 mm²
- Equipped with a label holderNo
THE + facility
Easy fixing with 4 screws
THE + use
30W USB Type C Power Delivery for fast charging of mobile devices
Recommendations/restrictions of use
- To be embedded in furniture thickness 10-40mm
Information on the range
Incara, a new range of electrification products dedicated to furniture, improves users' lives by providing them with functionality, ergonomics, comfort and speed of installation, in any type of space: in the office, at home, in a hotel, a cafe or an airport. The diversity of solutions allows for harmonious integration into all furniture. Trendy, Incara finishes help to enhance spaces with aesthetics and modernity. Incara, a simple way for users to stay connected anywhere, anytime and anywhere.
