Description

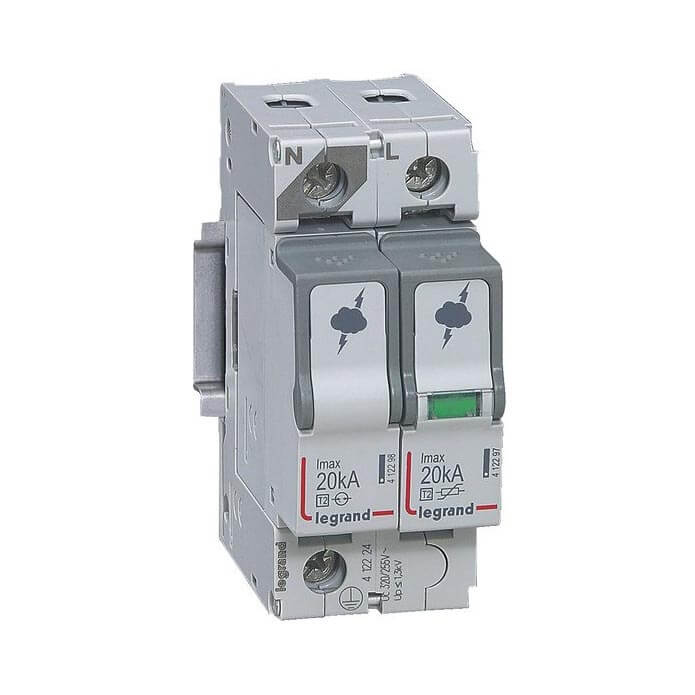

Surge Protector Device (SPD) - T2 - Imax 20 kA/pole - 2P
Warranty 2 Years
T2 SPDs
- SPDs with plug-in modules and status indicators:
- Green: SPD operational
- Orange: plug-in modules to be replaced
- SPDs recommended for small installations
- Up: 1.2 kV - In: 5 kA/pole - Uc: 320 V~
- Earthing systems : TT, TNC, TNS
- Recommended MCB: DX³ 20 A - C curve
- Number of poles : 2P
- Remote status monitoring (FS contact) : No
- Number of modules : 2
General characteristics
Class II (T2) low voltage SPDs
- Protection against transient overvoltagess for 230/400 V~ power networks (50/60 Hz). SPDs compliant with EN/IEC 61643-11 standards
- Recommended for distribution boards
